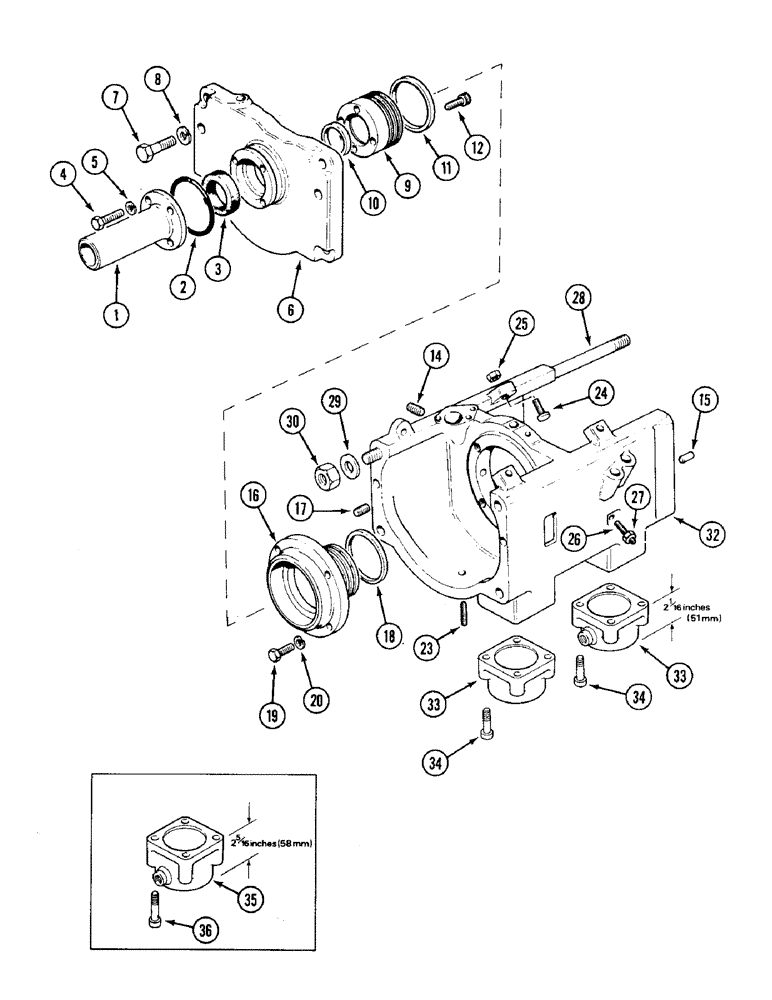

Запчасти Case IH 1394 (6-214) - GEARBOX HOUSING - FRONT, POWER SHIFT TRACTORS (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
1
K940294
SUPPORT
- clutch release bearing
1шт.
2
238-5335
O-RING,0.21" Thk x 2.725" ID, -335, Cl 5, 75 Duro
- 2-3/4 ID x 1/8 inch wide
2шт.
3
K623415
SEAL
- oil, 46 x 65 x 10 mm
1шт.
4
413-416
BOLT,Hex, 1/4" - 20 x 1", Gr 5
- hex, 1/4 NC x 1 inch
4шт.
5
492-11025
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
4шт.
6
K954258
PLATE
- end, front
1шт.
7
K943635
STEP BOLT
- 5/16 UNC x 2 inch
2шт.
8
492-11038
LOCK WASHER,3/8"
2шт.
9
K929301
SUPPORT
SLEEVE - support
1шт.
10
K908508
BUSHING
1шт.
11
K917796
RING, PISTON
RING - seal
2шт.
12
K606812
SCREW
- 1/4 inch UNC
4шт.
14
81-3315
SET SCREW,5/16"-18 x 5/16", Slotted
SCREW - 5/16 unc x 5/16 inch
1шт.
15
K622912
PIN
DOWEL - 3/8 x 7/8 inch
2шт.
16
K929300
HOUSING
1шт.
17
K606200
SCREW
- 1/4 UNC x 1/4 inch
1шт.
18
K917796
RING, PISTON
RING - seal
2шт.
19
413-618
BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5
4шт.
20
492-11038
LOCK WASHER,3/8"
4шт.
23
K929459
SCREW
- locating, 5/16 UNF x 1-3/8 inch
2шт.
24
K929460
SCREW,5/16" - 24 x 1 3/8"
- locating, 5/16 UNF x 1-3/8 inch
4шт.
25
K617051
NUT
- lock, 5/16 inch UNF
4шт.
26
K929458
SCREW
- locating, 3/8 UNF x 1-3/4 inch
1шт.
27
425-156
JAM NUT,Jam, 3/8"-24, G5
- hex, jam, 3/8 inch NF
1шт.
28
K608410
STUD
- 1/2 UNC x 17-5/8 inch
4шт.
29
K19484
LOCK WASHER
WASHER - lock, 1/2 inch
4шт.
30
K607004
NUT
- hex, 1/2 inch UNC
4шт.
32
K262065
BUSHING
SPACER - Two-wheel drive (Replaces K952310), Includes: Ref. 33 & 34
1шт.
32
K262049
HOUSING
SPACER - MFD (Replaces K957444), Includes: Ref. 33 & 34
1шт.
33
K262064
BRAKE
CYLINDER AND PISTON - brake band (P.I.N. 11136848 and after)
2шт.
34
K606841
SCREW
BOLT - 5/16 UNC x 1-3/4 inch (P.I.N. 11136848 and after)
8шт.
35
K965766
BRAKE
CYLINDER AND PISTON - brake band (Prior to P.I.N. 11136848)
2шт.
36
K606843
SCREW
BOLT - 5/16 UNC x 2 inch (Prior to P.I.N. 11136848)
8шт.
Выбрано товаров: 33
