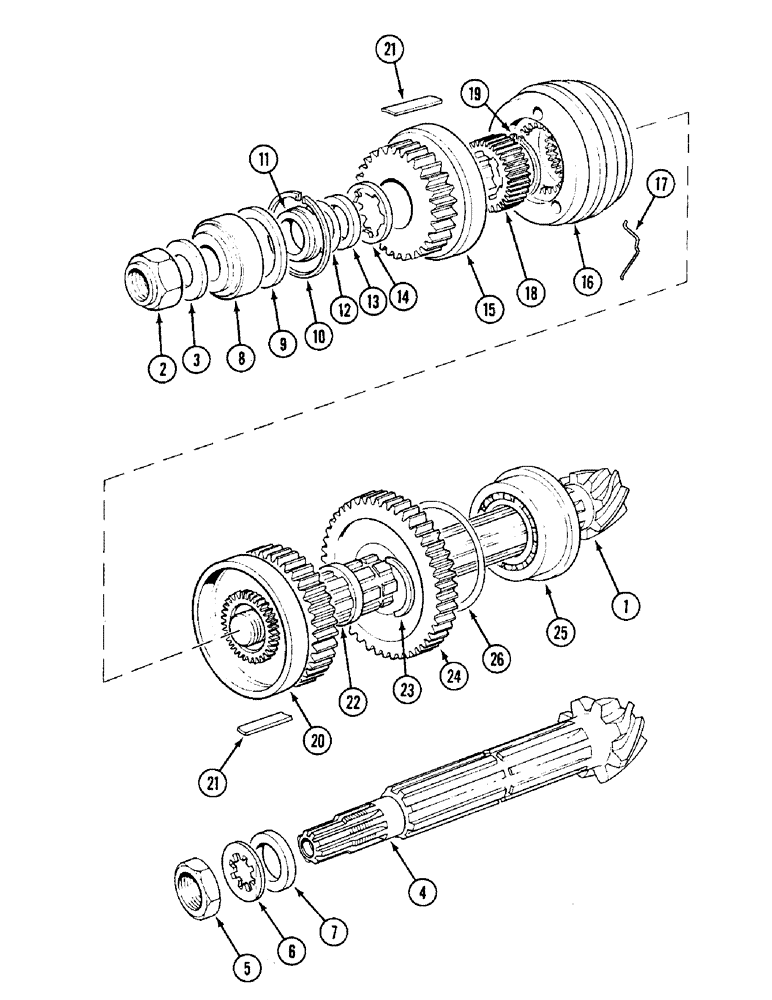

Запчасти Case IH 1394 (6-212) - BEVEL PINION SHAFT, SYNCHROMESH TRACTORS (06) - POWER TRAIN

1

K964873

GEAR-SET

PINION AND SPIRAL GEAR - , bevel, 7-43 teeth (Two-wheel drive)

1шт.

2

K623317

LOCK NUT

- 1-1/8 inch BSF, left-hand thread (Two-wheel drive)

1шт.

3

K14687

WASHER

- 1-1/8 inch (29 mm) Special (Two-wheel drive)

1шт.

4

K965895

BEVEL GEAR

PINION AND SPIRAL GEAR - bevel, 7-43 teeth (MFD)

1шт.

5

K921817

NUT

- 1-3/8 Whitworth, special (MFD)

1шт.

6

K626438

WASHER

- tab, pinion (MFD)

1шт.

7

K921819

WASHER

- 1-3/8 inch (35 mm) Special (MFD)

1шт.

8

K620061

BEARING, ROLLER

BEARING - roller, tapered

1шт.

9

K627253

BUSHING

SPACER - bearing

1шт.

10

K17023

CIRCLIP

RING - snap, 3 inch (76 mm) Internal

1шт.

11

K917844

BUSHING

SPACER - bearing

1шт.

12

K917845

SHIM,35.32mm ID x 50.8mm OD x 0.05mm Thk

- 0.002 inch (0.05 mm)

1шт.

12

K917846

SHIM

- 0.005 inch (0.13 mm)

1шт.

12

K917847

SHIM

- 0.010 inch (0.25 mm)

1шт.

12

K917848

SHIM

- 0.030 inch (0.76 mm)

1шт.

13

K940969

BUSHING

SPACER - bearing

1шт.

14

K940975

DISC

WASHER - splined

1шт.

15

K942816

GEAR

- high, 28 teeth

1шт.

16

K207796

GEAR

AND CONES - sliding (Replaces K928223), Includes: Ref. 17

1шт.

17

K926266

SPRING

- gear

6шт.

18

K206501

GEAR

- dog clutch

2шт.

19

K621865

RING, SNAP

RING - snap, 1-3/4 inch (45 mm) External

1шт.

20

K942817

GEAR

- medium, 35 teeth

1шт.

21

K940989

PLATE

PAD - bearing

12шт.

22

K948670

WASHER

- special

2шт.

23

K945962

PACKING RING

SPLIT RING - halves

2шт.

24

K942461

GEAR

- low, 41 teeth

1шт.

25

620158

CUSHION

BEARING - roller, tapered

1шт.

26

K626983

SHIM,.002" Thk

(0.05 mm) .002" Thk

1шт.

26

K626984

SHIM,.005" Thk

(0.13 mm) .005" Thk

1шт.

26

K626985

SHIM

- 0.010 inch (0.25 mm)

1шт.

26

K626986

SHIM,.030" Thk

(0.76 mm) .030" Thk

1шт.
