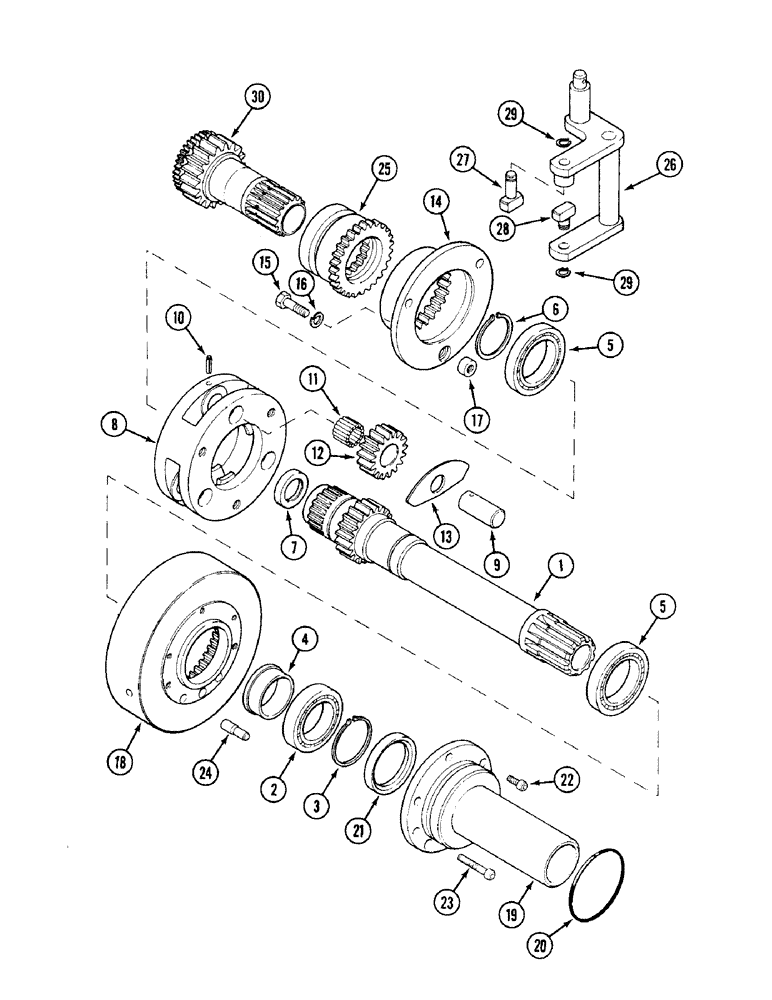

Запчасти Case IH 1394 (6-206) - PLANETARY REDUCTION GEARS, SYNCHROMESH TRACTORS WITH CREEPER GEAR (06) - POWER TRAIN

1

K395003

SHAFT

- clutch drive

1шт.

2

K395004

BEARING

- ball

1шт.

3

A48041

CIRCLIP,41.5mm ID x 2.5mm Thk

RING - snap, 45 mm

1шт.

4

K395079

BUSHING

SPACER - driveshaft

1шт.

5

G10418

BEARING, BALL

BEARING - ball

2шт.

6

800-1150

SNAP RING,M50, Ext

RING - snap

1шт.

7

K395073

SEAL

- oil, driveshaft, 28 x 40 x 7 mm

1шт.

8

K395080

CARRIER

- planet gears

1шт.

9

K395066

GEAR

SPINDLE - planet gear

3шт.

10

K395054

PIN

- roll, 4 x 18 mm

3шт.

11

118333A1

10 NEEDLE BRG KIT

ROLLER - needle

72шт.

12

K395069

GEAR

- planet

1шт.

13

K395068

WASHER

- thrust

6шт.

14

K395070

SPLINED COUPLING

FLANGE - planet carrier

1шт.

15

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

Full Thd Hex, M10 x 30, 8.8

3шт.

16

892-11010

LOCK WASHER,M10

3шт.

17

K965384

RING

DOWEL - ring

1шт.

18

K395081

GEAR

- annulus

1шт.

19

K210107

SUPPORT

- bearing carrier

1шт.

20

238-5234

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

1шт.

21

K623430

OIL SEAL

- oil, 45 x 65 x 8 mm

1шт.

22

461-32510

HEX SOC SCREW,1/4"-20 x 5/8"

BOLT - hex socket head, 1/4 NC x 5/8 inch

3шт.

23

K606559

SCREW

BOLT - 5/16 UNC x 1-5/8 inch

2шт.

23

461-33116

HEX SOC SCREW,5/16"-18 x 1"

BOLT - 5/16 UNC x 1 inch

1шт.

24

K657331

PIN

DOWEL - main frame

2шт.

25

K395071

GEAR

CLUTCH - dog, sliding

1шт.

26

K309661

SELECTOR

FORK - selector

1шт.

27

K310163

PIN

- trunnion

1шт.

28

K310164

PIN

- trunnion

1шт.

29

800-1110

SNAP RING,M10, Ext

RING, SNAP, M10, Ext

2шт.

30

K210457

GEAR

- drive, gearbox

1шт.
