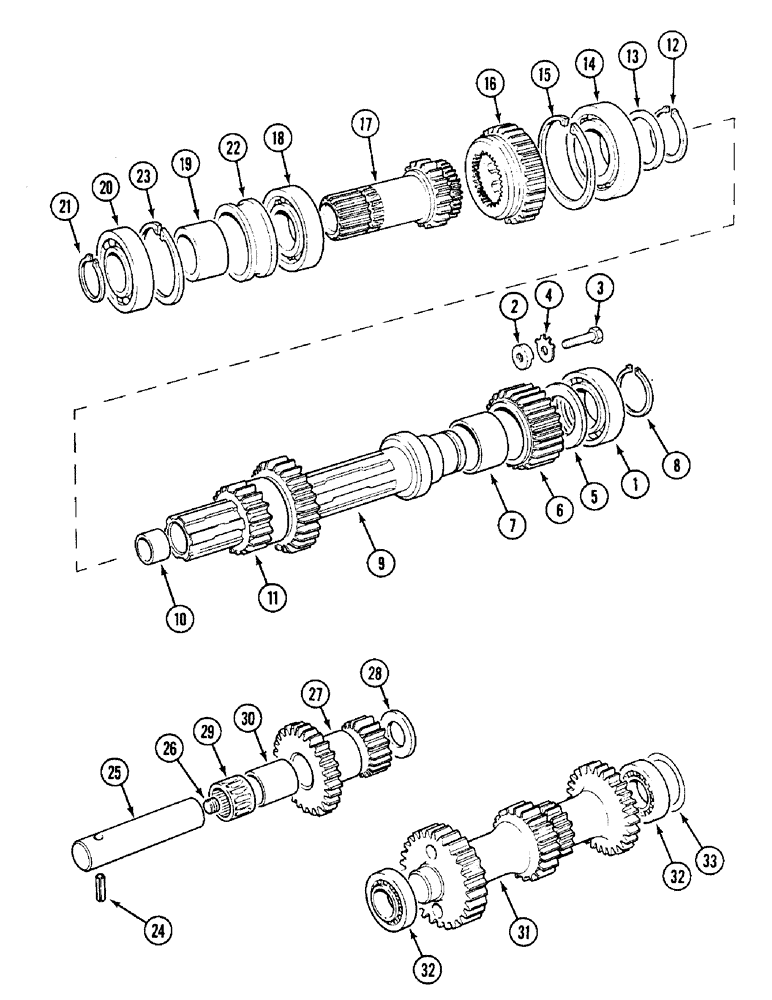

Запчасти Case IH 1394 (6-204) - GEARBOX DRIVESHAFT AND LAYSHAFTS, SYNCHROMESH TRACTORS PRIOR TO P.I.N. 11139846 (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
2
K910447
WASHER
- retaining
1шт.
3
K600005
BOLT
- 1/4 UNC x 1-3/8 inch
1шт.
4
K33127
WASHER
- tab
1шт.
5
K908940
WASHER
- thrust
1шт.
6
K963566
GEAR
- reverse, Includes: Ref. 7
1шт.
7
K621376
BUSHING
1шт.
8
100-11175
SNAP RING,#175, Ext
Ring, Snap, #175, Ext
1шт.
9
K205737
SHAFT
- drive
1шт.
10
K24774
BUSHING
1шт.
11
K205611
GEAR
PINION - range, 18-26 teeth
1шт.
12
K621865
RING, SNAP
RING - snap, 50 mm external
1шт.
13
K942829
BUSHING
SPACER
1шт.
14
K12311
BEARING, ROLLER, CYL
BEARING - roller
1шт.
15
K12236
RING, SNAP
RING - snap, 4 inch (102 mm) Internal
1шт.
16
K942464
GEAR
- driven, 28 teeth
1шт.
17
K942462
GEAR
- driven, 18 teeth
1шт.
18
K12275
BEARING, ROLLER, CYL
BEARING - roller, roller
1шт.
19
K627588
SPACER
- inner
1шт.
21
100-11175
SNAP RING,#175, Ext
Ring, Snap, #175, Ext
1шт.
22
K627302
BUSHING
SPACER - outer
1шт.
23
K11481
RING, SNAP
RING - snap, 85 mm, snap
2шт.
24
38-12032
LOCK PIN,5/16" x 2", Slotted
Pin, 5/16" x 2", Slotted
1шт.
25
K207628
SHAFT
SPINDLE
1шт.
26
K606261
SCREW
PLUG - spindle, 7/16 inch UNC
1шт.
27
K942463
SHAFT
LAYSHAFT - auxiliary reduction
1шт.
28
K627478
WASHER
- thrust
2шт.
29
K620273
BEARING, NEEDLE,28.57mm ID x 38.1mm OD x 25.02mm W
BEARING - roller, needle
2шт.
30
K627179
BUSHING
SPACER
1шт.
31
K942460
SHAFT
LAYSHAFT - with integral gears
1шт.
32
K620076
BEARING, ROLLER
BEARING - roller, tapered
2шт.
33
K914702
SHIM,50.8mm ID x 67.06mm OD x 0.05mm Thk
(0.05 mm) .002" Thk
1шт.
33
K914703
SHIM,.003" Thk
(0.08 mm) .003" Thk
1шт.
33
K914704
SHIM,50.8mm ID x 67.06mm OD x 0.18mm Thk
(0.18 mm) .007" Thk
1шт.
33
K914705
SHIM,50.8mm ID x 67.06mm OD x 0.25mm Thk
(0.25 mm) .010" Thk
1шт.
Выбрано товаров: 36
