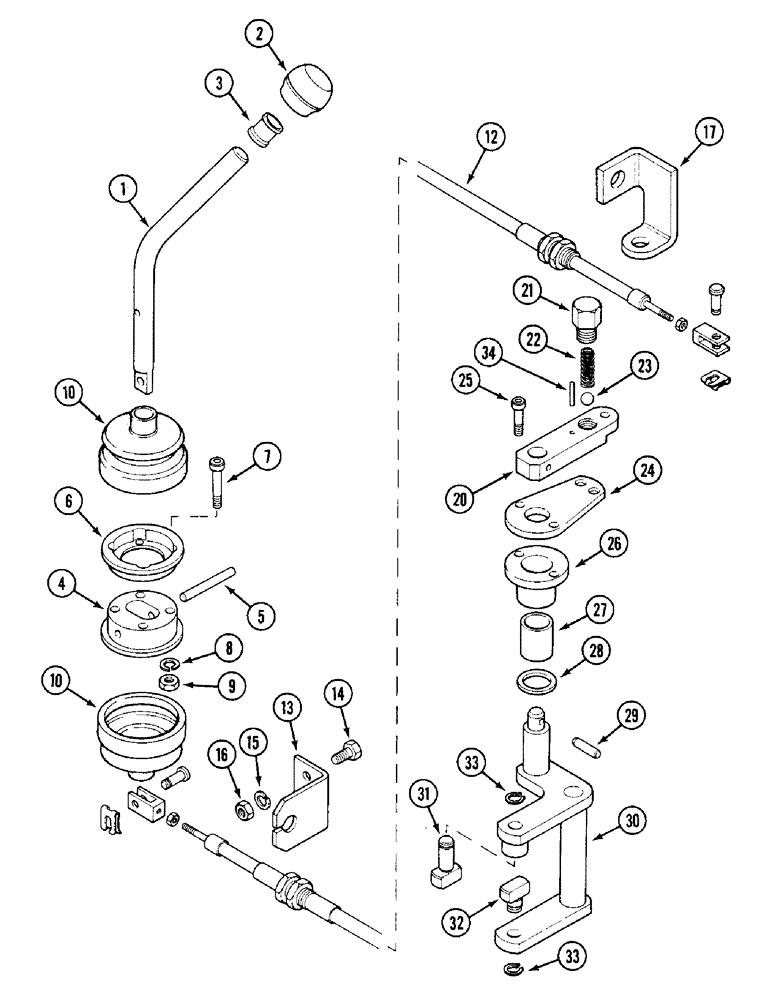

Запчасти Case IH 1394 (6-202) - CREEPER GEAR SHIFT LEVER, SYNCHROMESH TRACTORS WITH CAB (06) - POWER TRAIN

1

K207847

SELECTOR

LEVER - hand, creeper gear

1шт.

2

K210233

KNOB

- hand leverr

1шт.

3

K628472

RING

- retaining

1шт.

4

K207846

LEVER

PIVOT - hand lever

1шт.

5

138-143

LOCK PIN,1/4" x 2 1/4", Slotted

PIN, 1/4" x 2 1/4", Slotted

1шт.

6

K205234

RETAINER

- cover

1шт.

7

461-32524

HEX SOC SCREW,1/4"-20 x 1 1/2"

SCREW, Hex Soc Hd, 1/4"-20 x 1 1/2"

4шт.

8

K626341

SPRING WASHER

WASHER - lock, 1/4 inch

4шт.

9

231-1444

NUT,1/4"-20, GB

NUT, LOCK, 1/4"-20, GB

4шт.

10

K204741

BELLOWS

COVER - dust

2шт.

12

K311523

CABLE ASSY.

CABLE - inner and outer (Replaces 308411)

1шт.

13

K310266

BRACKET

-, Serial Range: cable-cab

1шт.

14

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

- hex, full threads, 8 - 1.25 x 16 mm

2шт.

15

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.

16

43362

NUT,M8 x 1.25, Cl 10

M8, Cl 10

1шт.

17

K310247

BRACKET

- cable to gearbox cover

1шт.

20

K309669

SELECTOR

LEVER - selector

1шт.

21

K309670

SPRING

HOLDER - detent spring

1шт.

22

K13507

SPRING

- detent

1шт.

23

211-1012

BALL,3/8" Dia

- steel

1шт.

24

K311881

PLATE

HOUSING - selector fork

1шт.

25

61-32516

HEX SOC SCREW,1/4"-20 x 1"

BOLT - hex socket, 1/4 NC x 1 inch

2шт.

26

K309667

BUSHING

HOUSING - selector fork

1шт.

27

K655441

BUSHING

- housing

1шт.

28

K655812

WASHER

- thrust

1шт.

29

K657615

GROOVED PIN

PIN - grooved, 6 x 28 mm

1шт.

30

K309661

SELECTOR

FORK - selector

1шт.

31

K310163

PIN

- trunnion

1шт.

32

K310164

PIN

- trunnion

1шт.

33

800-1110

SNAP RING,M10, Ext

RING, SNAP, M10, Ext

2шт.
