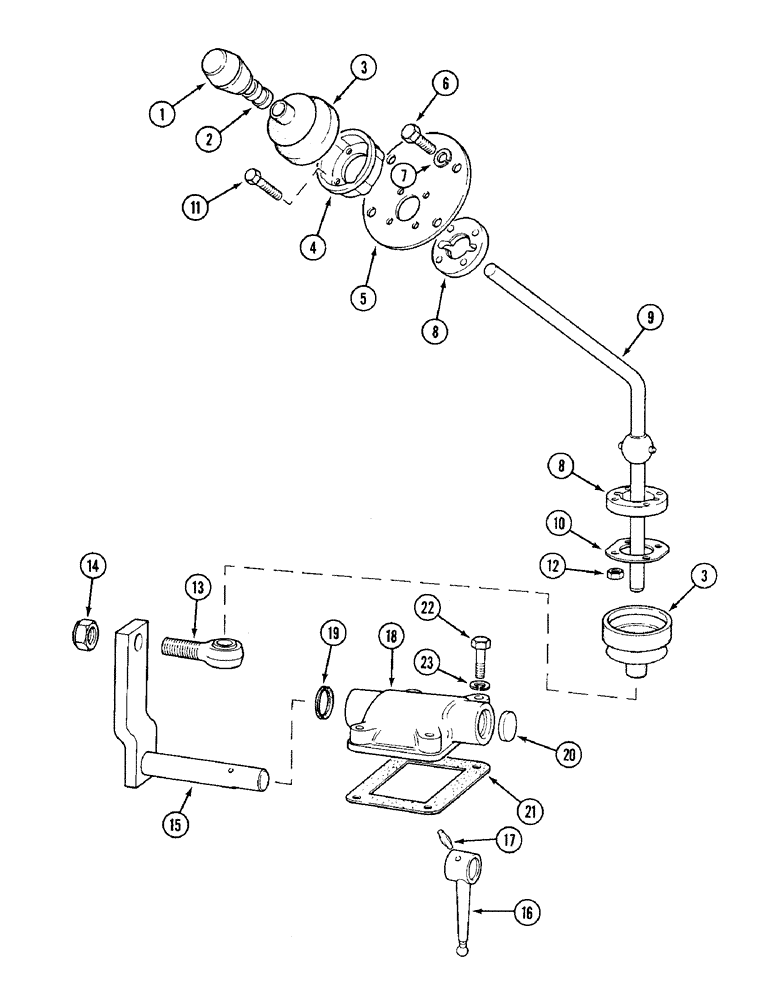

Запчасти Case IH 1394 (6-198) - GEAR SHIFT LEVER, SYNCHROMESH, TRACTORS WITH CAB (06) - POWER TRAIN

1

K207410

KNOB

- gear lever

1шт.

2

K628472

RING

- knob

1шт.

3

K204741

BELLOWS

COVER - rubber

2шт.

4

K205234

RETAINER

- upper

1шт.

5

K204803

PLATE

- lever

1шт.

6

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

- hex, full threads, 8 - 1.25 x 20 mm

4шт.

7

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

4шт.

8

K204810

HOUSING

- ball

2шт.

9

K207245

LEVER

- gear

1шт.

10

K204742

PLATE

RETAINER - lower

1шт.

11

461-32524

HEX SOC SCREW,1/4"-20 x 1 1/2"

SCREW, Hex Soc Hd, 1/4"-20 x 1 1/2"

4шт.

12

231-1444

NUT,1/4"-20, GB

NUT, LOCK, 1/4"-20, GB

4шт.

13

K204680

ROD

JOINT - ball

1шт.

14

131-377

LOCK NUT,5/8"-11, GC

NUT - lock, ball joint, 5/8 inch UNC

1шт.

15

K204683

SELECTOR

SHAFT AND ARM - selector

1шт.

16

K202078

SELECTOR

LEVER - selector

1шт.

17

617938R1

PIN,5/16" x 1 3/8", Coiled

- groove, 5/16 x 1-1/2 inch

1шт.

18

K950243

HOUSING

- lever shaft

1шт.

19

K623630

SEAL

- oil, 7/8 inch (22 mm) ID

1шт.

20

41-16

PLUG,Exp, 1"

- core, 1 inch (25 mm) OD

1шт.

21

K950543

GASKET,0.2mm Thk

-, Serial Range: housing-gearbox

1шт.

22

K600205

BOLT

- 5/16 UNC x 1-1/2 inch

4шт.

23

K19481

SPRING WASHER

WASHER - lock, 5/16 inch

4шт.
