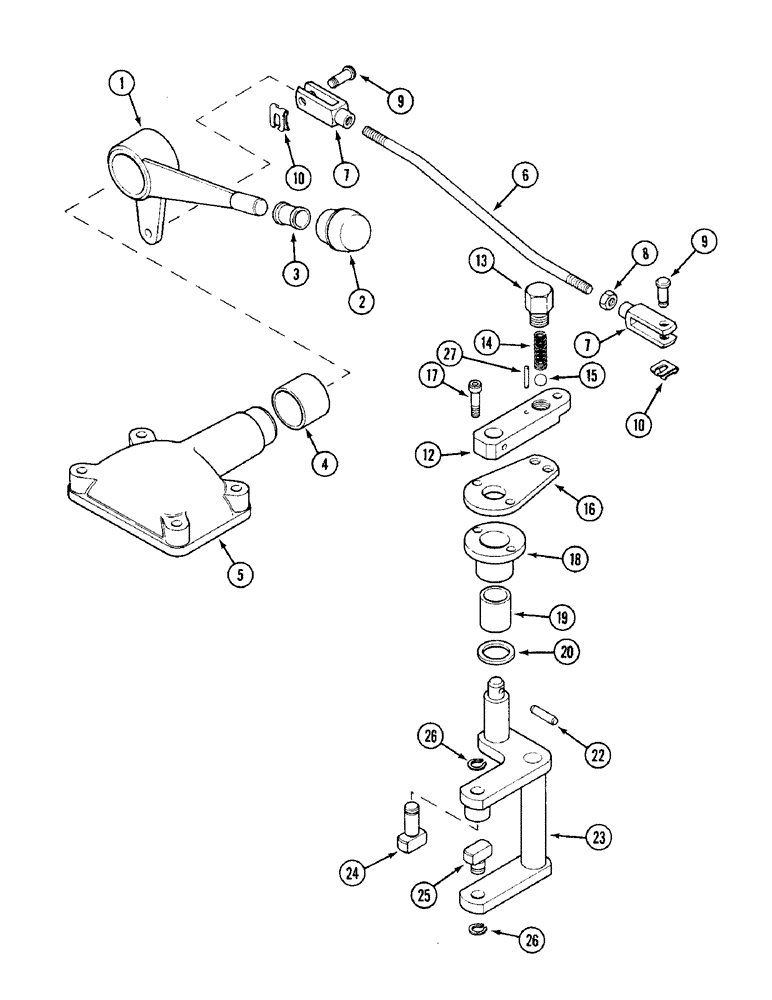

Запчасти Case IH 1394 (6-196) - CREEPER GEAR SHIFT LEVER, SYNCHROMESH TRACTORS WITHOUT CAB (06) - POWER TRAIN

1

K207908

LEVER

- hand

1шт.

2

K210233

KNOB

- hand lever

1шт.

3

K628472

RING

- retaining

1шт.

4

K621313

BUSHING

- hand lever

1шт.

5

K957509

LEVER

HOUSING - gear change

1шт.

6

K308536

ROD

- hand lever to selector lever

1шт.

7

K659009

FORK

- M8

2шт.

8

K651553

NUT

- M8

2шт.

9

K658613

PIN

- clevis

2шт.

10

K659105

CLIP

- clevis pin

2шт.

12

K309669

SELECTOR

LEVER - selector

1шт.

13

K309670

SPRING

HOLDER - detent spring

1шт.

14

K13507

SPRING

- detent

1шт.

15

211-1012

BALL,3/8" Dia

- detent

1шт.

16

K311881

PLATE

- selector fork

1шт.

17

61-32516

HEX SOC SCREW,1/4"-20 x 1"

BOLT - hex socket, 1/4 NC x 1 inch

2шт.

18

K309667

BUSHING

HOUSING - selector fork

1шт.

19

K655441

BUSHING

- housing

1шт.

20

K655812

WASHER

- thrust

1шт.

22

K657615

GROOVED PIN

PIN - grooved, 6 x 28 mm

1шт.

23

K309661

SELECTOR

FORK - selector

1шт.

24

K310163

PIN

- trunnion

1шт.

25

K310164

PIN

- trunnion

1шт.

26

800-1110

SNAP RING,M10, Ext

RING, SNAP, M10, Ext

2шт.

27

K692133

PIN

- tension, locking 3 x 15 mm

1шт.
