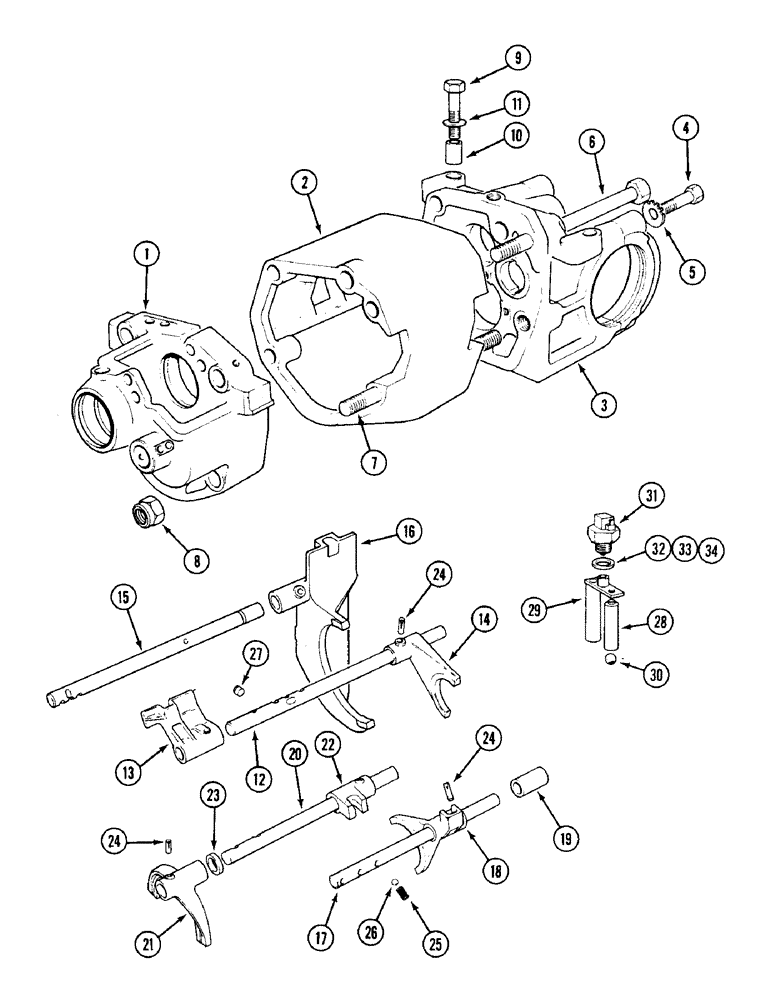

Запчасти Case IH 1394 (6-190) - GEARBOX HOUSING AND SELECTOR MECHANISM, SYNCHROMESH TRACTORS PRIOR TO P.I.N. 11139846 (06) - POWER TRAIN

1

K917726

PLATE

- end, front

1шт.

2

K949893

BUSHING

SPACER

1шт.

3

K200516

PLATE

- end, rear, with bearing caps, Includes: Ref. 4 & 5

1шт.

4

K601242

BOLT

- 5/8 UNC x 3-3/4 inch

4шт.

5

K626389

BEARING WASHER

WASHER - tab

4шт.

6

K940990

STUD

BOLT - 5/8 UNC x 14-1/4 inch

2шт.

7

K940991

STUD

- 5/8 UNC x 14-1/4 inch

2шт.

8

K607331

NUT

- self-locking, 5/8 inch UNC

4шт.

9

K601306

BOLT

- 5/8 inch UNC special

2шт.

10

K920656

BUSHING

BUSHING

2шт.

11

K626239

SHIM,.010" Thk

(0.254 mm) .010" Thk

1шт.

12

K949895

SELECTOR

ROD - selector, first and reverse

1шт.

13

K954125

SELECTOR

JAW - selector, first and reverse

1шт.

14

K942472

SELECTOR

FORK - selector, first and reverse

1шт.

15

K207164

SELECTOR

ROD - selector, second and third

1шт.

16

K206543

FORK

- selector, second and third

1шт.

17

K949898

SELECTOR

ROD - selector, high-low range

1шт.

18

K950260

SELECTOR

FORK - selector, high-low range

1шт.

19

K953526

BUSHING

SLEEVE - selector, high-low range

1шт.

20

K949897

SELECTOR

ROD - selector, slow and normal range

1шт.

21

K928567

SELECTOR

FORK - selector, slow and normal range

1шт.

22

K950259

SELECTOR

JAW - selector, slow and normal range

1шт.

23

K953530

BUSHING

SPACER - slow and normal range

1шт.

24

K623887

PIN,5.21mm OD x 25.4mm L

- 3/16 x 1 inch

7шт.

25

K13507

SPRING

4шт.

26

211-1012

BALL,3/8" Dia

- chrome alloy steel, 3/8 inch (10 mm)

4шт.

27

K30430

LOCKING DEVICE

LOCK - gear

1шт.

28

K945208

PLUNGER

1шт.

29

K308068

PLUNGER

AND PLATE

1шт.

30

211-1012

BALL,3/8" Dia

- chrome alloy steel 3/8 inch (10 mm)

2шт.

31

K262714

SWITCH

- safety, starter

1шт.

32

K626895

SHIM,.002" Thk

(0.05 mm) .002" Thk

1шт.

33

K626858

SHIM,.005" Thk

(0.13 mm) .005" Thk

1шт.

34

K626894

SHIM,.010" Thk

(0.25 mm) .010" Thk

1шт.
