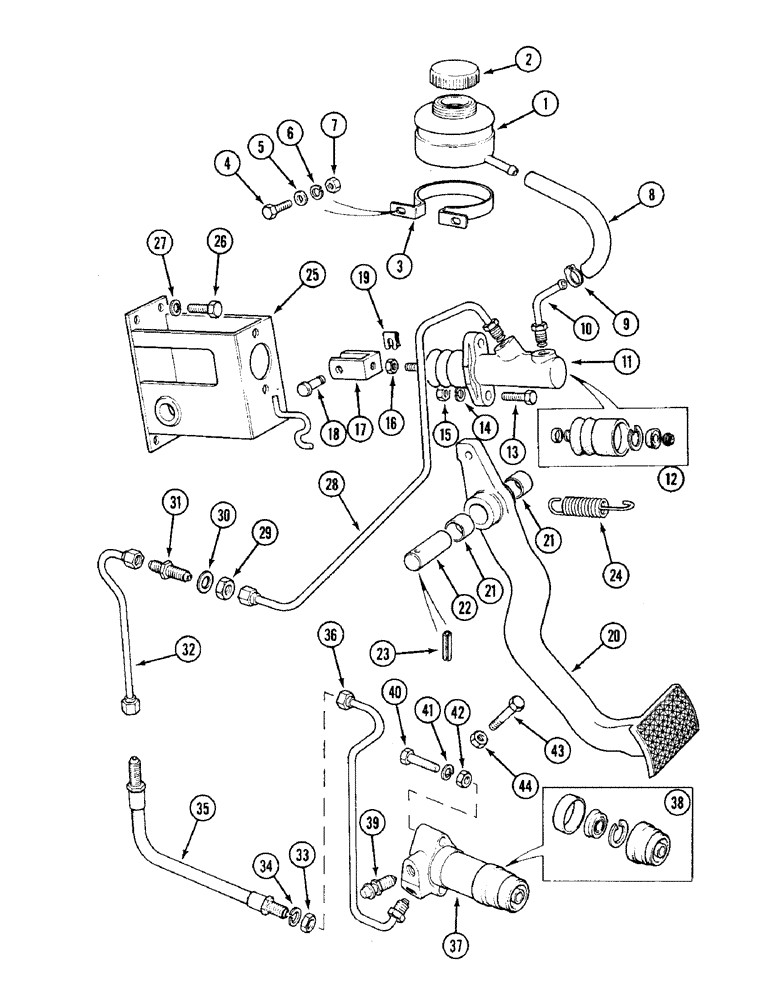

Запчасти Case IH 1394 (6-186) - TRANSMISSION CLUTCH ASSEMBLY MECHANISM, TRACTORS WITH CAB (06) - POWER TRAIN

1

K301442

CONTAINER

RESERVOIR ASSEMBLY - clutch, Includes: Ref. 2 & 3

1шт.

2

K301443

CAP

- filler

1шт.

3

K301455

CLIP

- reservoir

1шт.

4

K652474

BOLT

- M6 x 12 mm

2шт.

5

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

6

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

2шт.

7

825-13412

NUT,M12 x 1.25, Cl 8

- cable, M6

2шт.

8

K203032

HOSE

- reservoir to master cylinder, 6 x 215 mm

1шт.

9

L100659

CLIP

- self adhesive, hose, 1/2 inch (13 mm)

1шт.

10

K302099

PIPE

TUBE - master cylinder inlet

1шт.

11

K950544

CYLINDER,36.32mm Stroke

ASSEMBLY - master (Mineral oil), Includes: Ref. 12

1шт.

12

K964572

SEAL KIT

SEAL KIT - master cylinder (Mineral oil)

1шт.

13

413-518

BOLT,Hex, 5/16" - 18 x 1-1/8", Gr 5

- hex, 5/16 NC x 1-1/8 inch

2шт.

14

K19481

SPRING WASHER

WASHER - lock, 5/16 inch

2шт.

15

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

16

425-115

NUT,5/16"-24, G5

- lock, 5/16 inch UNF

1шт.

17

K622212

FORK

END - rod, 5/16 inch UNF

1шт.

18

K625930

PIN

- clevis, 5/16 x 1-3/16 inch

1шт.

19

K625040

CLIP

- spring

1шт.

20

K307848

PEDAL

ASSEMBLY - clutch (Replaces K303679), Includes: Ref. 21

1шт.

21

K655525

BUSHING

- pedal

2шт.

22

K303545

PIN

- pivot

1шт.

23

K690706

PIN

- roll, 6 x 30 mm, roll

1шт.

24

K303540

SPRING

- return

1шт.

25

K303157

MOUNTING PARTS

BRACKET - mounting

1шт.

26

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

- hex, full threads, 8 - 1.25 x 16 mm

4шт.

27

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

4шт.

28

K301271

PIPE

TUBE ASSEMBLY - master, Serial Range: cylinder-union

1шт.

29

K652100

LOCK NUT

- lock, M12

1шт.

30

K626345

LOCK WASHER

WASHER - lock, 1/2 inch

1шт.

31

K301280

FITTING

UNION - connecting, M12

1шт.

32

K302614

PIPE

TUBE ASSEMBLY -, Serial Range: union-flexible

1шт.

33

K652100

LOCK NUT

- lock, M12

2шт.

34

K626345

LOCK WASHER

WASHER - lock, 1/2 inch

2шт.

35

K957164

HOSE,11.023" L

TUBE ASSEMBLY - , flexible, M12 x 280 mm

1шт.

36

K307988

PIPE

TUBE ASSEMBLY - flexible, to slave cylinder

1шт.

37

K306544

CYLINDER,50mm Stroke

ASSEMBLY - slave (Girling 73067124) (Mineral oil), Includes: Ref. 38 & 39

1шт.

38

K261633

SEAL KIT

SEAL KIT - slave cylinder (Mineral oil)

1шт.

39

K964534

SCREW,M12 x 1

- air removal

1шт.

40

K650648

BOLT

- M8 x 50 mm

2шт.

41

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.

42

825-1408

NUT,M8, Cl 8

2шт.

43

K650645

BOLT

- M8 x 35 mm, pedal stop

1шт.

44

K651553

NUT

- M8

1шт.
