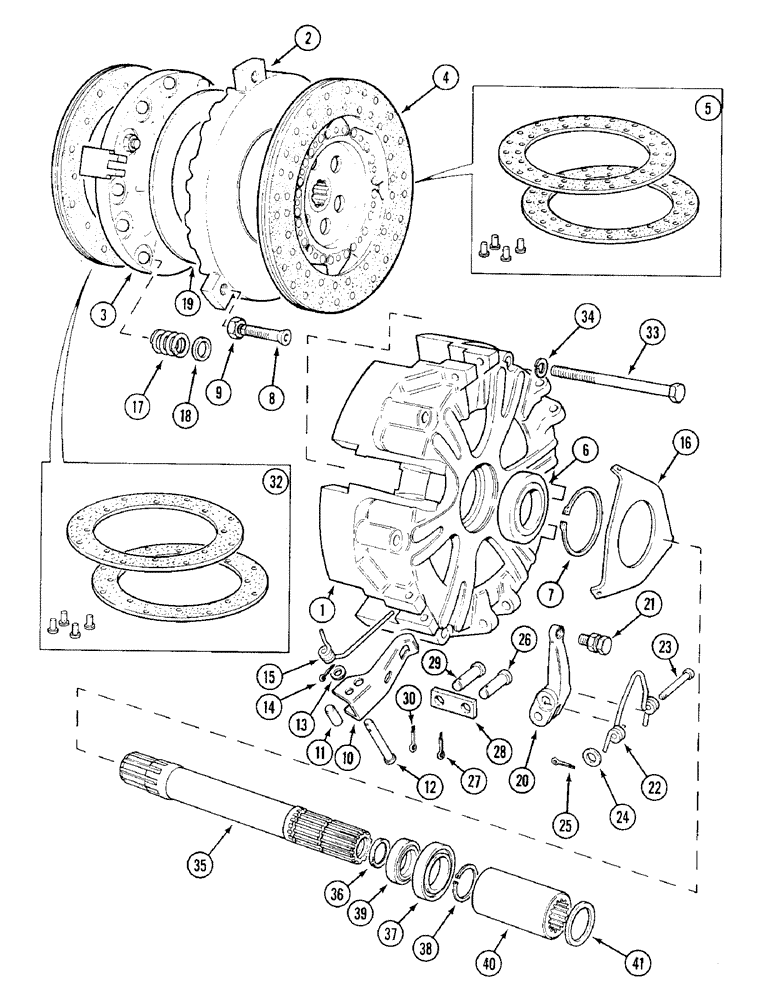

Запчасти Case IH 1394 (6-182) - INDEPENDENT CLUTCH ASSEMBLY (06) - POWER TRAIN

1539023C1

CLUTCH

ASEMBLY - (Laycock 87367-14), Includes: Ref. 1 - 30

1шт.

1539023C1R

REMAN-CLUTCH PLATE

Remanufactured, CLUTCH PLATE, N.A. Only

1шт.

1539023C1C

CORE-CLUTCH PLATE

Return Number, Clutch Assembly, N.A. Only

1шт.

1

NSS

NOT SOLD SEPARAT

COVER

1шт.

2

K955007

PLATE, THRUST

PLATE - pressure, transmission

1шт.

3

NSS

NOT SOLD SEPARAT

PLATE - pressure, PTO

1шт.

4

1539027C1

CLUTCH DISC

PLATE - driven, 12 inch (305 mm) transmission

1шт.

5

K965867

FACING

S - steel backed Mintex H19, and rivets

1шт.

6

K89325

BALL BEARING,45mm ID x 75mm OD x 16mm W

BEARING - ball

1шт.

7

800-2175

SNAP RING,M75, Int

RING - snap, clutch cover

1шт.

8

K947045

BOLT

SCREW - adjusting

1шт.

9

K947042

NUT

- lock, adjusting screw

3шт.

10

K206748

LEVER

- release, transmission, set of three

1шт.

11

K947046

ROLLER

- release lever

3шт.

12

K947044

PIN

- pivot, roller

3шт.

13

K947036

WASHER

- pivot pin

3шт.

14

K947035

COTTER PIN

PIN - cotter

3шт.

15

K947049

SPRING

- transmission lever

3шт.

16

K206750

PLATE

- transmission release lever

1шт.

17

K951917

SPRING

- thrust, pink

12шт.

18

1539029C1

WASHER

INSULATING -

24шт.

19

K952509

BELLEVILLE SPRING

SPRING - thrust, Belleville

1шт.

20

K947057

LEVER

- release

1шт.

21

K963626

LOCK NUT,M10 x 1.25 x 30mm, Cl 10.9

SCREW - adjusting, with locknut

3шт.

22

K947037

SPRING

- PTO

3шт.

23

K947058

PIVOT PIN

PIN - pivot, PTO lever

3шт.

24

K947036

WASHER

- pivot pin

6шт.

25

K947035

COTTER PIN

PIN - cotter

3шт.

26

K947060

PIN

- pivot, PTO lever

3шт.

27

432-68

COTTER PIN,3/32" x 1/2"

PIN, SPLIT (COTTER), 3/32" x 1/2"

3шт.

28

K947059

LINK

- PTO, set of three

1шт.

29

K947041

PIN

- pivot, PTO pressure plate, pivot, PTO pressure plate

3шт.

30

432-68

COTTER PIN,3/32" x 1/2"

PIN, SPLIT (COTTER), 3/32" x 1/2"

3шт.

31

1539018C1

CLUTCH DISC

PLATE - 12 inch driven (305 mm) PTO, Includes: Ref. 32

1шт.

1539018C1R

REMAN-CLUTCH DISC

1394 Disesel, N.A. Only

1шт.

31

1539018C1C

CORE-CLUTCH DISC

Return Number, For PTO, N.A. Only

1шт.

32

1539047C1

FACING, CLUTCH

FACINGS - F30C and rivets

1шт.

33

413-668

BOLT,Hex, 3/8" - 16 x 4-1/4", Gr 5

- hex, 3/8 NC x 4-1/4 inch

6шт.

34

492-11038

LOCK WASHER,3/8"

6шт.

35

K202072

SHAFT

- clutch drive (Synchromesh without creeper gear)

1шт.

35

K202083

SHAFT

- clutch drive (Power shift)

1шт.

36

K623490

SEAL

- oil, 1-1/8 X 1-7/8 X 3/8 inch

1шт.

37

G10418

BEARING, BALL

BEARING - ball

1шт.

38

100-11250

SNAP RING,#250, Ext

Ring, Snap, #250, Ext

1шт.

39

K623483

OIL SEAL

- oil, 50 x 70 x 10 mm

1шт.

40

K202061

COUPLING, BREAK AWAY

COUPLING

1шт.

41

K902106

SHIM,.032" Thk

(0.813 mm) .032" Thk

1шт.
