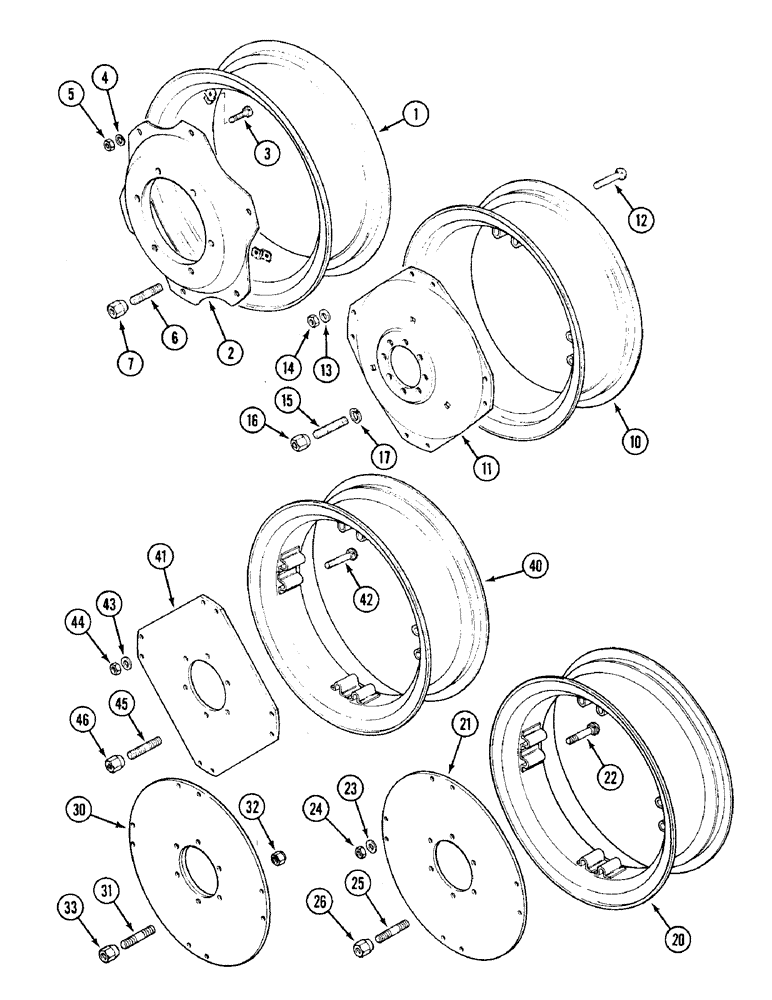

Запчасти Case IH 1394 (5-180) - FRONT WHEELS - MFD, STANDARD TRACTOR PRIOR TO P.I.N. 11503001 (05) - STEERING

NSS

NOT SOLD SEPARAT

WHEEL ASSEMBLY - front, for 11.2/10-24 or 12.4/11-24 tires, Includes: Ref. 1 - 5

2шт.

1

K307637

RIM

- wheel, wheel, W10 x 24

1шт.

2

K307640

DISC, WHEEL

WHEEL - center, steel

1шт.

3

1335133C1

PLOW BOLT,Plow, M16 x 2 x 74mm, Cl 10.9

BOLT - carriage, 16 mm - 2.00 x 74 mm

6шт.

4

1335135C1

WASHER

- flat, 17 x 33 x 5 mm

6шт.

5

829-1416

NUT,M16, Cl 10

- hex, 16 mm - 2.0, class 10

6шт.

6

K205125

STUD

- M14 x 52 mm, hub

12шт.

7

K965326

WHEEL NUT

- wheel, M14 (Carraro 104782)

12шт.

NSS

NOT SOLD SEPARAT

WHEEL ASSEMBLY - front, for 11.2/10 x 24 or 12.4/11 x 24 inch tires, standard tractor - P.I.N. 11503001 and after, Includes: Ref. 10 - 14

2шт.

10

K330081

RIM

- wheel, W10 x 24 inch, standard tractor - P.I.N. 11503001 and after

1шт.

11

K330074

DISC, WHEEL

CENTER - wheel, steel, standard tractor - P.I.N. 11503001 and after

1шт.

12

1335133C1

PLOW BOLT,Plow, M16 x 2 x 74mm, Cl 10.9

BOLT - carriage, 16 mm - 2.00 x 74 mm, Standard tractor - P.I.N. 11503001 and after

6шт.

13

1335135C1

WASHER

- flat, 17 x 33 x 5 mm, standard tractor - P.I.N. 11503001 and after

6шт.

14

829-1416

NUT,M16, Cl 10

- hex, 16 mm - 2.0, class 10, Standard tractor - P.I.N. 11503001 and after

6шт.

15

REF

INSTRUCTION

STUD - hub, See Figure 5-157, standard tractor - P.I.N. 11503001 and after

16шт.

16

K395089

WHEEL NUT

- wheel, Includes a cone shaped washer K395083, standard tractor - P.I.N. 11503001 and after, Includes: Ref. 17

16шт.

17

K395083

WASHER,18.5mm ID x 29mm OD x 7mm Thk

- special, wheel nut, standard tractor - P.I.N. 11503001 and after

16шт.

NSS

NOT SOLD SEPARAT

WHEEL ASSEMBLY - front, for 13.6/12 x 38 tires, vegetable special - prior to P.I.N. 11503201, Includes: Ref. 20 - 24

2шт.

20

1265244C1

RIM

- wheel, DW11 x 38, vegetable special - prior to P.I.N. 11503201

1шт.

21

K308406

WHEEL

- center, steel, vegetable special - prior to P.I.N. 11503201

1шт.

22

1333029C1

BOLT,Coach, M16 x 120mm, Gr 8.8

BOLT - coach, 16 x 120 mm grade 8.8, vegetable special - prior to P.I.N. 11503201

8шт.

23

K19475

WASHER

- 5/8 inch, vegetable special - prior to P.I.N. 11503201

8шт.

24

829-1416

NUT,M16, Cl 10

- hex, 16 mm - 2.0, class 10, Vegetable special - prior to P.I.N. 11503201

8шт.

25

K260765

STUD,M14 x 1.5 x 62mm, Cl 10.9

- M14 x 62 mm (Carraro 106198), vegetable special - prior to P.I.N. 11503201

12шт.

26

K965326

WHEEL NUT

- wheel, M14 (Carraro 104782), vegetable special - prior to P.I.N. 11503201

12шт.

30

K311602

WHEEL - center, steel, used with K308405 North America only, vegetable special - prior to P.I.N. 11503201

1шт.

31

K311613

STUD

- special, used with K311602 North America only, vegetable special - prior to P.I.N. 11503201

12шт.

32

K395148

NUT

- lock (Carraro 22131), Used with K311602 North America only, vegetable special - prior to P.I.N. 11503201

12шт.

33

K395147

NUT

- wheel (Carraro 119641), Used with K311602 North America only, vegetable special - prior to P.I.N. 11503201

12шт.

NSS

NOT SOLD SEPARAT

WHEEL, ASSEMBLY - front for 13.6/12 x 38 tires, vegetable special - P.I.N. 11503201 and after, Includes: Ref. 40 - 44

2шт.

40

1265244C1

RIM

- wheel, DW11 x 38, vegetable special - P.I.N. 11503201 and after

1шт.

41

K310937

WHEEL

- center, steel, vegetable special - P.I.N. 11503201 and after

1шт.

42

1333029C1

BOLT,Coach, M16 x 120mm, Gr 8.8

BOLT - coach, 16 x 120 mm grade 8.8, vegetable special - P.I.N. 11503201 and after

8шт.

43

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, , Vegetable special - P.I.N. 11503201 and after 5/8"

8шт.

44

829-1416

NUT,M16, Cl 10

- hex, 16 mm - 2.0, class 10, Vegetable special - P.I.N. 11503201 and after

8шт.

45

K260765

STUD,M14 x 1.5 x 62mm, Cl 10.9

- M14 x 62 mm(Carraro 106198), vegetable special - P.I.N. 11503201 and after

12шт.

46

K965326

WHEEL NUT

- wheel M14 (Carraro 104782), vegetable special - P.I.N. 11503201 and after

12шт.
