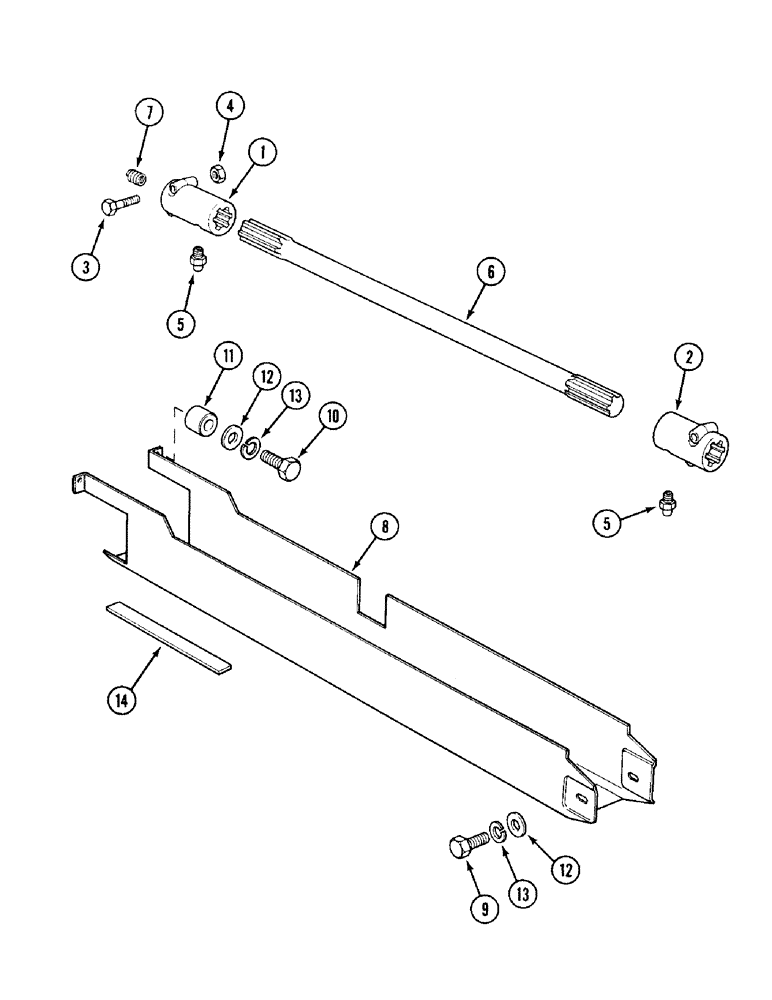

Запчасти Case IH 1394 (5-176) - FRONT AXLE DRIVE SHAFT, MFD TRACTORS, P.I.N. 11503001 AND AFTER (05) - STEERING

1

51200378

SPLINED COUPLING

COUPLING - driveshaft, front

1шт.

2

K260761

SPLINED COUPLING

SLEEVE - driveshaft, rear (Carraro 102033/1)

1шт.

3

514-723

BOLT,Hex, M10 x 1.25 x 60mm, Cl 8.8

- hex, 10 - 1.25 x 60 mm

4шт.

4

K965414

NUT

- M10, self-locking (Carraro 22411)

4шт.

5

321204

LUBE NIPPLE,M6 x 1.0 x 16mm OAL

NIPPLE, LUBE, M6 x 1, 16mm lg

2шт.

6

K395170

SHAFT

- ffront axle drive (Carraro 118232)

1шт.

7

K965410

SPRING

- driveshaft (Carraro 83787)

1шт.

8

K205187

GUARD

- driveshaft (Carraro 117953) 40 inch

1шт.

9

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

- hex, full threads, 8 - 1.25 x 20 mm

2шт.

10

814-8040

BOLT,Hex, M8 x 1.25 x 40mm, Cl 8.8

2шт.

11

K205188

BUSHING

SPACER - guard (Carraro 87166)

2шт.

12

K965421

WASHER

- 8 mm (Carraro 23109)

4шт.

13

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

4шт.

14

K307295

STRIP

- edging guard

2шт.
