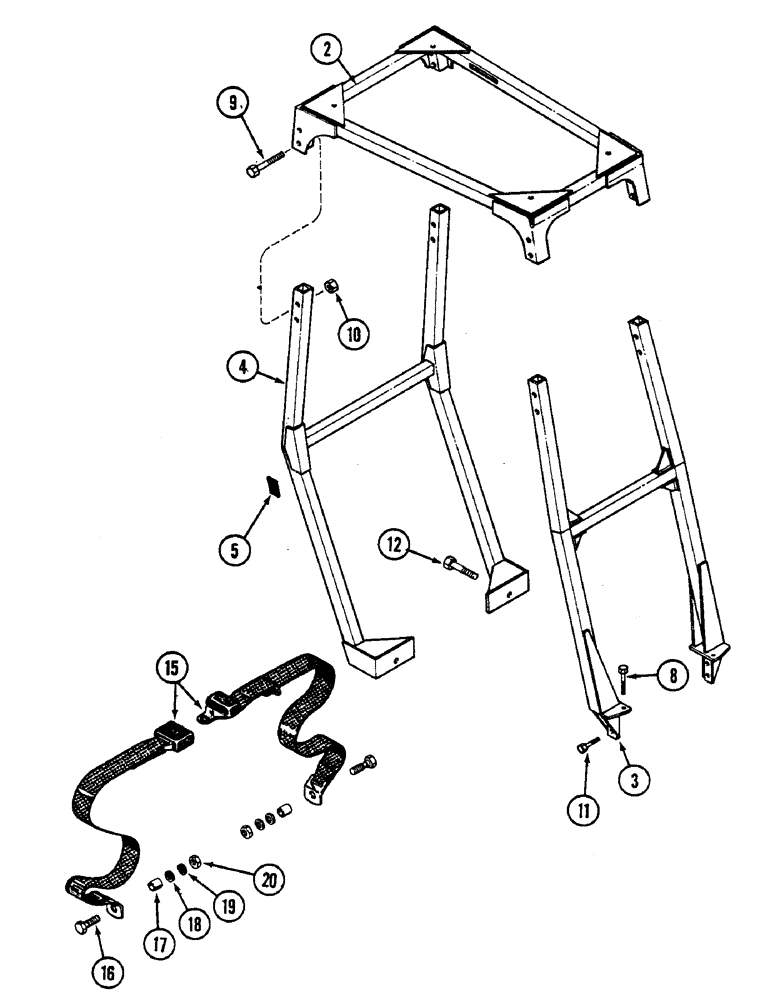

Запчасти Case IH 1390 (N2-1) - 4 POST ROLL OVER PROTECTIVE STRUCTURE (09) - CHASSIS

A164850

FRAME

ASSEMBLY 4 post ROPS, Includes Ref. 2 - 8

1шт.

2

A169134

FRAME

ASSEMBLY upper

1шт.

3

A169133

FRAME

ASSEMBLY front

1шт.

4

A169135

FRAME

ASSEMBLY rear, Includes Ref. 5

1шт.

5

A169138

PAD

BUMPER rear frame

2шт.

8

113-479

BOLT

hex, 1/2 NC x 2-1/4 inch, Order 113-441

4шт.

9

113-2455

BOLT,Hex, 1/2" - 13 x 3", Gr 5

hex, black special, 1/2 NC x 3 inch, Order 113-425, Includes Ref. 10 - 17

8шт.

10

131-492

NUT,1/2"-13

NUT lock, hex, 1/2 inch NC

8шт.

11

113-607

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

4шт.

12

113-810

BOLT,Hex, 7/8" - 9 x 2-1/2", Gr 5

hex, 5/8 NC x 2-1/2 inch

4шт.

REF

INSTRUCTION

CANOPY ASSEMBLY roll over, not shown, see figure N3-1

1шт.

15

A160404

SAFETY BELT

BELT seat, safety

1шт.

16

A61946

STEP BOLT

BOLT seat belt shoulder

2шт.

17

A60907

BUSHING

SPACER anchor bolt

2шт.

18

195-529

WASHER,7/16", SAE

15/32 x 59/64 x 1/16 inch

2шт.

19

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

20

425-117

NUT,7/16"-20, G5

hex, 7/16 inch NC

2шт.
