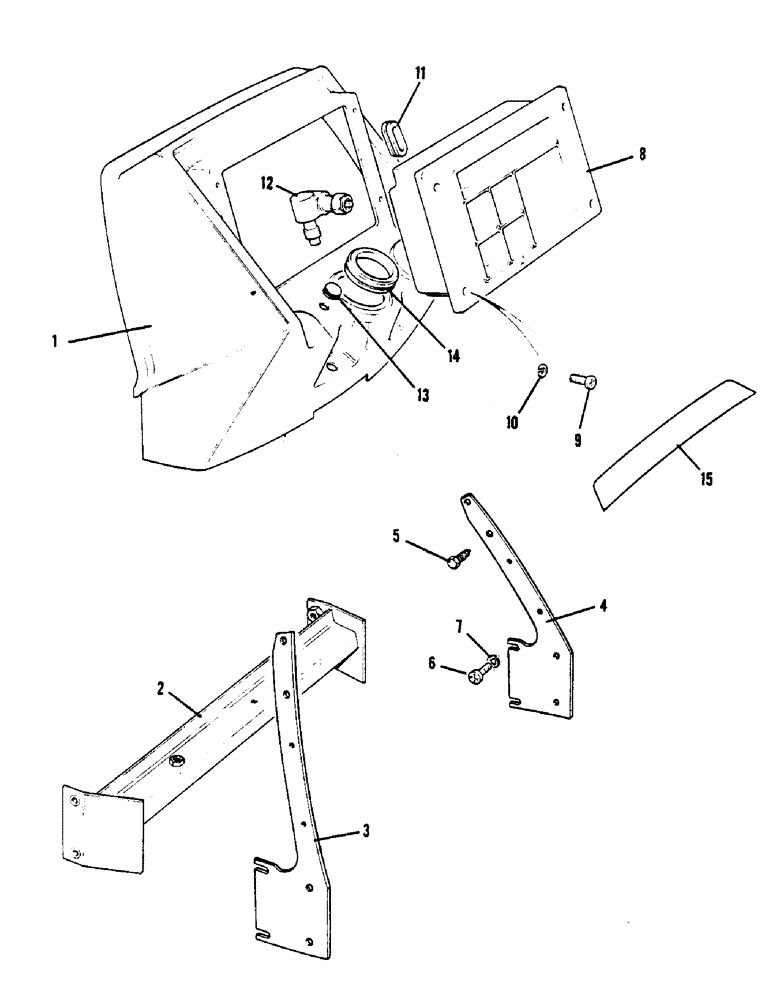

Запчасти Case IH 1390 (N1-1) - INSTRUMENT PANEL AND SUPPORT (09) - CHASSIS

1

K300774

PANEL

instrument

1шт.

2

K302428

SUPPORT

BRACKET support, engine hood rear

1шт.

3

K304343

PANEL

SUPPORT instrument panel, left-hand

1шт.

4

K304344

PANEL

SUPPORT instrument panel, right-hand

1шт.

5

K624534

SELF-TAP SCREW

SCREW special

8шт.

6

K654047

SCREW

Phillips, M8 x 20 mm

4шт.

7

K651874

SPRING

WASHER lock, 8 mm

4шт.

8

K300268

CLUSTER

instrument, tractor with single-speed or reversible shaft PTO

1шт.

8

K300269

CLUSTER

instrument, tractor with multi-speed PTO

1шт.

9

K652502

SCREW,Pan, M5 x 0.8 x 16mm

Phillips, M5 x 10 mm

4шт.

10

K651846

WASHER, LOCK

WASHER lock, 5 mm

4шт.

11

K627761

GROMMET

throttle lever

1шт.

12

K201998

ADAPTER

engine speed indicator drive

1шт.

13

K627742

GROMMET

PLUG rubber, instrument panel

1шт.

14

K304378

COVER

steering column

1шт.

15

K304581

PANEL

ASSEMBLY extension

1шт.
