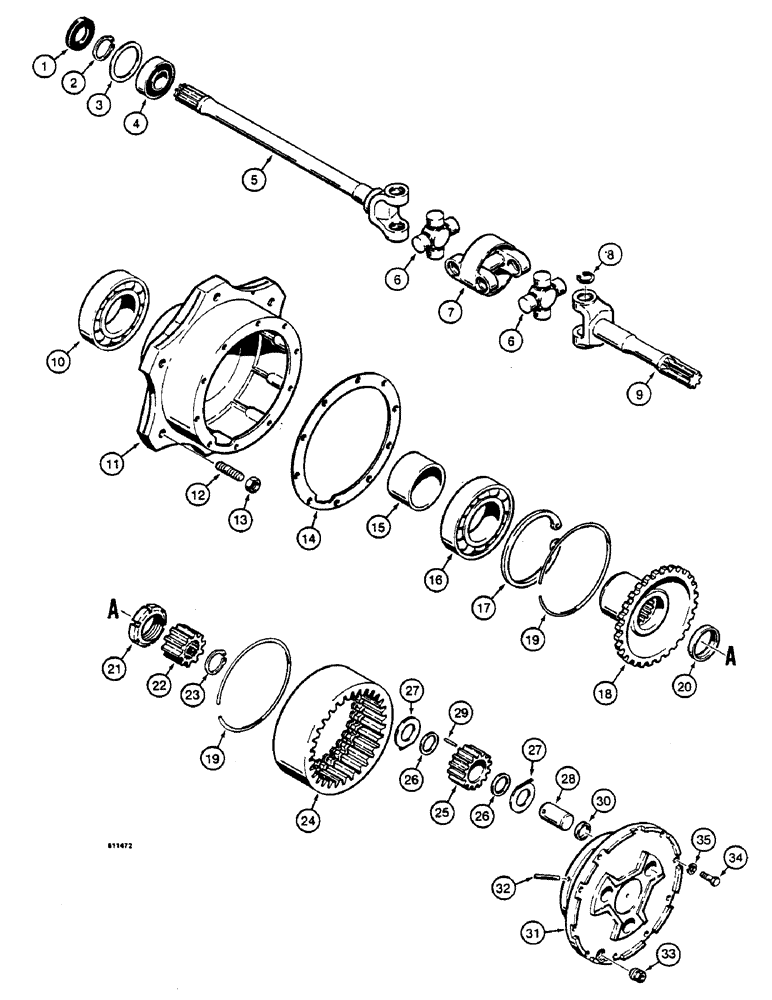

Запчасти Case IH 1390 (G5-1) - FRONT DRIVE AXLE, AXLE SHAFT AND PLANETARY (06) - POWER TRAIN

K206744

AXLE ASSEMBLY front drive, continued from figure G4-1, Includes Ref 1 - 35

1шт.

1

K965335

OIL SEAL,40mm ID x 72mm OD x 10mm Thk

axle shaft

2шт.

2

K965334

SNAP RING,M40, Ext

Axle shaft M40, Ext

2шт.

3

K965337

SEAL

RING seal, bearing

2шт.

4

K965333

BALL BEARING,40mm ID x 80mm OD x 23mm W

BEARING ball, axle shaft

2шт.

N7540

SHAFT

AXLE SHAFT ASSEMBLY front axle, Includes Ref. 5 - 9

2шт.

5

N7543

SHAFT

long

1шт.

6

K260189

JOINT

universal, axle shaft

2шт.

7

K260190

JOINT

FLANGE connecting

1шт.

8

K956873

RING

snap, universal joint

8шт.

9

N7542

SHAFT

short

1шт.

10

K965321

BALL BEARING

BEARING ball, small

1шт.

11

K965278

WHEEL

HUB wheel attaching

2шт.

12

K205125

STUD

wheel attaching

12шт.

13

K965326

WHEEL NUT

wheel

12шт.

14

K965304

GASKET

, Serial Range: hub-cover

2шт.

15

K965320

SPACER

bearing

2шт.

16

K965319

BEARING ASSY

BEARING ball, large

2шт.

17

K965318

RING, SNAP

RING snap, bearing retaining

2шт.

18

K965317

CARRIER

HUB ring gear

2шт.

19

K965306

SNAP RING

RING lock

4шт.

20

K965316

BUSHING

centering

2шт.

21

K965315

RING NUT

spindle

2шт.

22

K965312

GEAR

sun, planetary

2шт.

23

K956916

CLIP

RING snap, axle shaft

2шт.

24

K965314

GEAR

ring, planetary

2шт.

25

K965308

GEAR

pinion, planetary

6шт.

26

K965311

WASHER

SPACER pinion gear

12шт.

27

K965310

BEARING WASHER

WASHER tab, pinion gear

12шт.

28

K965307

AXLE PIN

PIN pinion gear

6шт.

29

K965309

NEEDLE

pinion gear

138шт.

30

K965301

HOLE PLUG BUTTON

PLUG pinion gear

6шт.

31

N7546

SUPPORT ASSY.

HOUSING planetary

2шт.

32

K965305

SPLIT PIN/SAFETY PIN

PIN pinion gear pin

6шт.

33

K965263

PLUG

expansion

2шт.

34

K965302

SCREW

BOLT hex head, 10 mm, housing

20шт.

35

K965303

LOCK WASHER,M10

WASHER lock, 10 mm

20шт.
