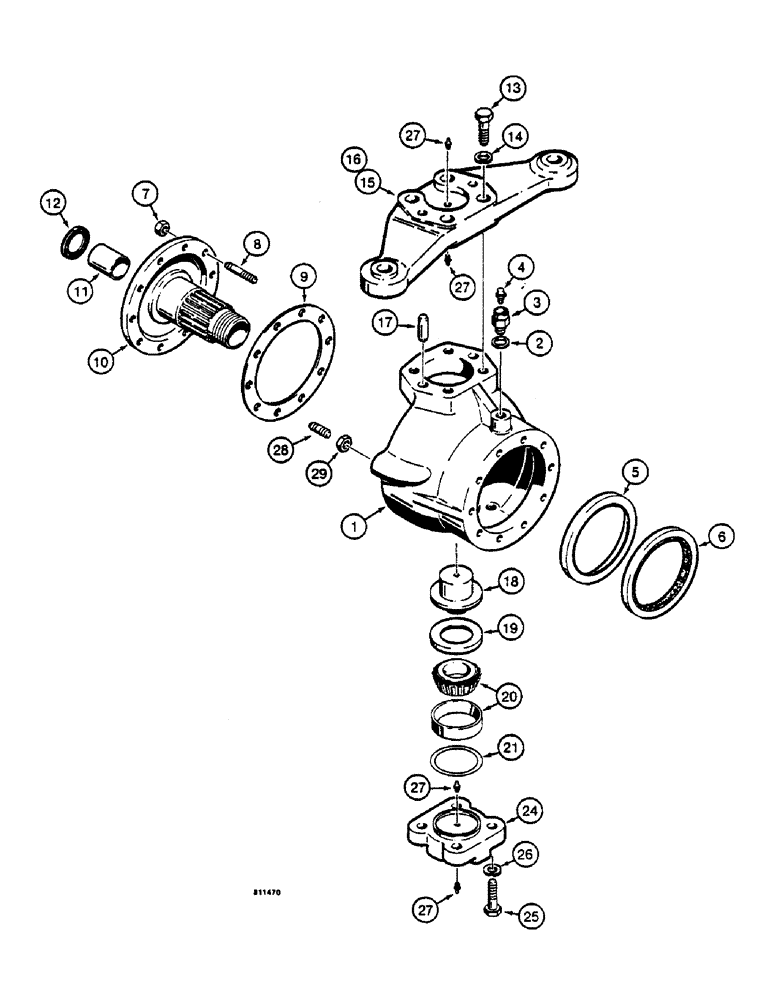

Запчасти Case IH 1390 (G4-1) - FRONT DRIVE AXLE, SWIVEL HOUSINGS (06) - POWER TRAIN

K206744

AXLE ASSEMBLY front drive, continued from figure G3-1, Includes Ref. 1 - 29

1шт.

1

N7523

STEERING KNUCKLE

HOUSING swivel, axle ends

2шт.

2

K957001

SEAL

breather protector

2шт.

3

K957000

GUARD

PROTECTOR breather

2шт.

4

K965231

BREATHER

swivel housing

2шт.

5

K965324

SEAL,140mm ID x 170mm OD x 15mm Thk

oil, inner

2шт.

6

K965323

GASKET

felt, outer

2шт.

7

K965250

NUT

hub stud

20шт.

8

K965249

STUD

hub to swivel housing

20шт.

9

K965237

GASKET

hub to swivel housing

2шт.

10

K965236

SHAFT

SPINDLE planetary

2шт.

11

K965322

BUSHING

spindle

2шт.

12

K956891

OIL SEAL

spindle

2шт.

13

N7552

BOLT,M14 x 50mm

BOLT steering lever

8шт.

14

K965248

WASHER

lock, 14 mm

8шт.

15

N7550

ARM

LEVER steering, right-hand

1шт.

16

N7551

ARM

LEVER steering, left-hand

1шт.

17

K965275

PIN

dowel, steering lever

4шт.

18

N7532

PIN,60mm OD x 57mm L

swivel

4шт.

19

N7533

SEALING RING

pin

4шт.

20

N7534

ROLLER BEARING,30mm ID x 62mm OD x 17.25mm W

BEARING roller, tapered, swivel pin

4шт.

21

K965243

SHIM,0.1mm Thk

Cap 0.1mm Thk

1шт.

21

K965244

SHIM,0.3mm Thk

1шт.

21

K965245

SHIM,0.5mm Thk

1шт.

24

K965242

COVER

CAP lower swivel pin

2шт.

25

K965247

BOLT,M14 x 35mm

BOLT hex head, 14 mm, cover

8шт.

26

K965248

WASHER

lock, 14 mm

8шт.

27

5194260

LUBE NIPPLE,M6 x 1, 16mm lg

FITTING grease, steering levers and covers

8шт.

28

N7527

ADJUSTMENT SCREW

STUD steering stop

2шт.

29

K965369

JAM NUT

hex, 12 mm

2шт.
