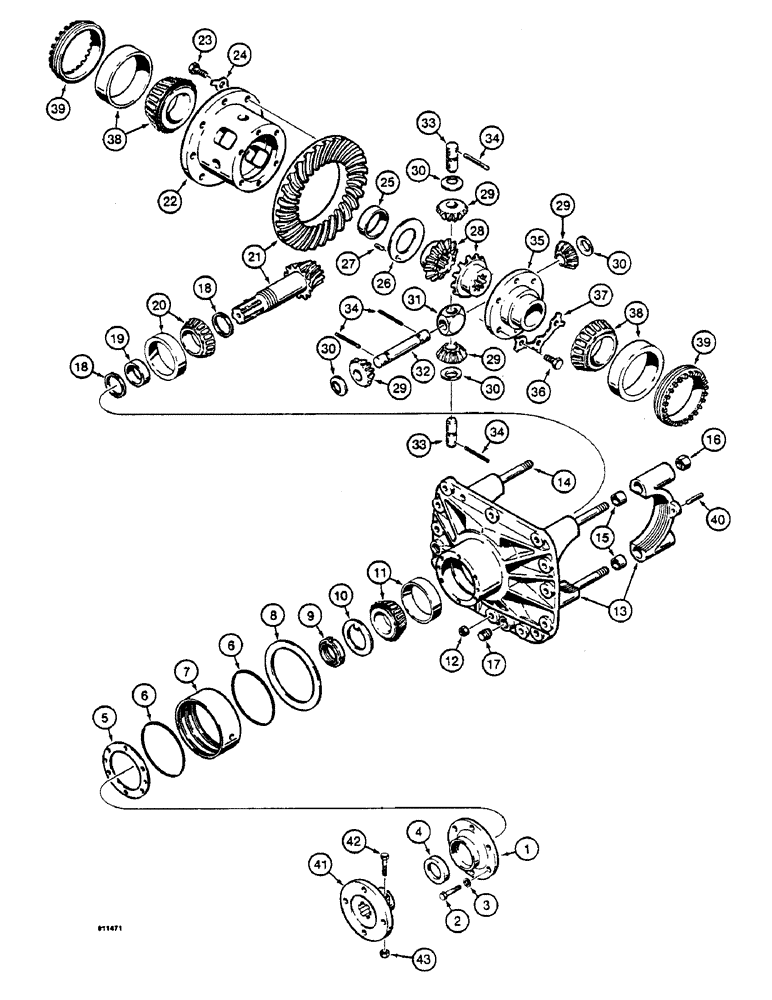

Запчасти Case IH 1390 (G2-1) - FRONT DRIVE AXLE, DIFFERENTIAL (06) - POWER TRAIN

K206744

AXLE ASSEMBLY front drive, continued from figure G1-1, Includes Ref. 1 - 19

1шт.

1

K965363

FLANGE

COVER rear

1шт.

2

814-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

6шт.

3

892-1108

LOCK WASHER,M8

6шт.

4

K965361

OIL SEAL,35mm ID x 55mm OD x 10mm Thk

pinion shaft

1шт.

5

K965364

GASKET

cover

1шт.

6

K965267

O-RING,0.07" Thk x 4.489" ID

rear pivot

2шт.

7

K965265

BUSHING

rear pivot

1шт.

8

K965264

WASHER

rear pivot

1шт.

9

N7537

RING

NUT pinion shaft

1шт.

10

N7536

WASHER,41mm ID x 62mm OD x 2mm Thk

special

1шт.

11

K965358

BEARING

roller, tapered, outer

1шт.

12

K965256

NUT

hex, 12 mm

10шт.

N7528

SUPPORT

CARRIER ASSEMBLY differential, Includes Ref. 13 - 16

1шт.

13

NSS

NOT SOLD SEPARAT

CARRIER differential

1шт.

14

K965257

STUD

differential carrier

4шт.

15

K965259

RING

SLEEVE differential carrier

4шт.

16

K965250

NUT

differential carrier

4шт.

17

K965263

PLUG

differential carrier

2шт.

18

K965280

SHIM,2.50mm Thk

Pinion shaft 2.50mm Thk

1шт.

18

K965281

SHIM,2.55mm Thk

Pinion shaft 2.55mm Thk

1шт.

18

K965282

SHIM,2.60mm Thk

Pinion shaft 2.60mm Thk

1шт.

18

K965283

SHIM,2.65mm Thk

Pinion shaft 2.65mm Thk

1шт.

18

K965284

SHIM,40.1mm ID x 50mm OD x 2.7mm Thk

Pinion shaft 2.70mm Thk

1шт.

18

K965285

SHIM,2.75mm Thk

Pinion shaft 2.75mm Thk

1шт.

18

K965286

SHIM,2.85mm Thk

Pinion shaft 2.80mm Thk

1шт.

18

K965287

SHIM,2.85mm Thk

Pinion shaft 2.85mm Thk

1шт.

18

K965288

SHIM,2.90mm Thk

Pinion shaft 2.90mm Thk

1шт.

18

K965289

SHIM,2.95mm Thk

Pinion shaft 2.95mm Thk

1шт.

18

K965290

SPACER

SHIM pinion shaft, 3.00 mm

1шт.

18

K965291

SHIM,3.05mm Thk

Pinion shaft 3.05mm Thk

1шт.

18

K965292

SHIM,3.10mm Thk

Pinion shaft 3.10mm Thk

1шт.

18

K965293

SHIM,3.15mm Thk

Pinion shaft 3.15mm Thk

1шт.

18

K965294

SHIM,3.20mm Thk

Pinion shaft 3.20mm Thk

1шт.

18

K965295

SHIM,3.25mm Thk

Pinion shaft 3.25mm Thk

1шт.

18

K965296

SHIM,3.30mm Thk

Pinion shaft 3.30mm Thk

1шт.

18

K965297

SHIM,3.35mm Thk

Pinion shaft 3.35mm Thk

1шт.

18

K965298

SHIM,3.40mm Thk

Pinion shaft 3.40mm Thk

1шт.

19

K965412

BUSHING

SPACER bearing, Order 895-11008

1шт.

20

K965357

BEARING

roller, tapered, inner

1шт.

21

N7535

PINION

SET gear, ring and pinion

1шт.

22

K965351

HOUSING

CAGE differential

1шт.

23

K965356

BOLT,Hex, M12 x 1.25 x 25, 8.8, Full Thd

hex head, 12 mm, cage to ring gear

8шт.

24

K965355

PLATE, LOCKING

PLATE lock, cage bolts

4шт.

25

K965347

BUSHING

cage to side gear

1шт.

26

K965346

WASHER

cage, inner

1шт.

27

K965348

PIN

dowel, Serial Range: washer-cage

1шт.

28

E43051

GEAR

side, differential

2шт.

29

E43052

GEAR

pinion, differential

4шт.

30

K965350

WASHER

pinion gear

4шт.

31

K965353

BLOCK

support

1шт.

32

K965352

PIN

SHAFT long

1шт.

33

K965354

PIN

SHAFT short

2шт.

34

K965349

PIN

dowel, differential shaft

4шт.

35

K965343

PLATE

COVER differential

1шт.

36

K965341

SCREW

BOLT hex head, 10 mm, cover

6шт.

37

K965342

RETAINER

PLATE lock, cover bolts

2шт.

38

K965339

BEARING

roller, tapered, side gear

2шт.

39

K965338

LOCK

RING bearing adjusting

2шт.

40

K965340

SPLIT PIN/SAFETY PIN

PIN adjusting ring lock

2шт.

41

K956954

SPLINED COUPLING

FLANGE drive shaft

1шт.

42

K965415

BOLT,M10 x 1.25 x 60mm

BOLT hex head, 10 x 1.25 x 60 mm

2шт.

43

K965414

NUT

hex, 10 mm

2шт.
