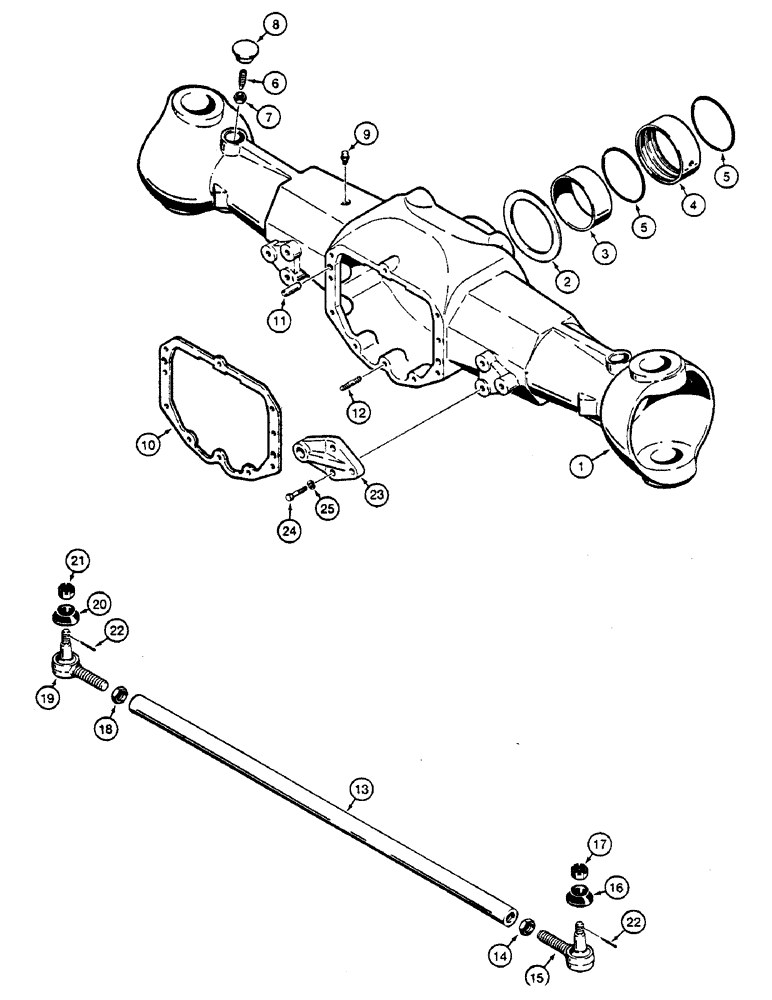

Запчасти Case IH 1390 (G1-1) - FRONT DRIVE AXLE, HOUSING AND TIE ROD (06) - POWER TRAIN

K206477

AXLE ASSEMBLY front drive, Includes Ref. 1 - 25

1шт.

1

N7627

SHAFT

HOUSING axle

1шт.

2

K965264

WASHER

SPACER front pivot

1шт.

3

K965266

BUSHING

SLEEVE front pivot

1шт.

4

K965265

BUSHING

COLLAR front pivot

1шт.

5

K965267

O-RING,0.07" Thk x 4.489" ID

front pivot

2шт.

6

K965232

BOLT,M10 x 1.25 x 35mm, Cl 10.9

SCREW lock, bearing retaining

4шт.

7

825-1114

NUT,M14, Cl 8

hex, 14 mm

4шт.

8

K956997

CAP

COVER dust

4шт.

9

K965231

BREATHER

axle housing

1шт.

10

N7524

GASKET

GASKET differential carrier

1шт.

11

K965252

PIN

dowel, Serial Range: housing-carrier

2шт.

12

K965254

STUD

, Serial Range: housing-carrier

10шт.

13

N7548

TIE-ROD

ROD steering, tie

1шт.

14

N7547

NUT

hex, right-hand

1шт.

K260254

BALL JOINT

ASSEMBLY right hand, Includes Ref. 15, 16 and 17

1шт.

15

NSS

NOT SOLD SEPARAT

JOINT ball, right hand

1шт.

16

K956939

CAP

BOOT ball joint

1шт.

17

K956938

SLOTTED NUT

ball joint, Order K260255

1шт.

18

N7549

NUT

hex, left-hand

1шт.

K260250

BALL JOINT

ASSEMBLY left hand, Includes Ref. 19, 20 and 21

1шт.

19

NSS

NOT SOLD SEPARAT

JOINT ball, left hand

1шт.

20

K956939

CAP

BOOT ball joint

1шт.

21

K956938

SLOTTED NUT

ball joint, Order K260255

1шт.

22

K260255

PIN

cotter

2шт.

23

N7525

BRACKET

SUPPORT steering cylinder

2шт.

24

N7526

BOLT,Hex, M14 x 40, 8.8, Full Thd

hex head, 14 mm

6шт.

25

K965248

WASHER

lock, 14 mm

6шт.
