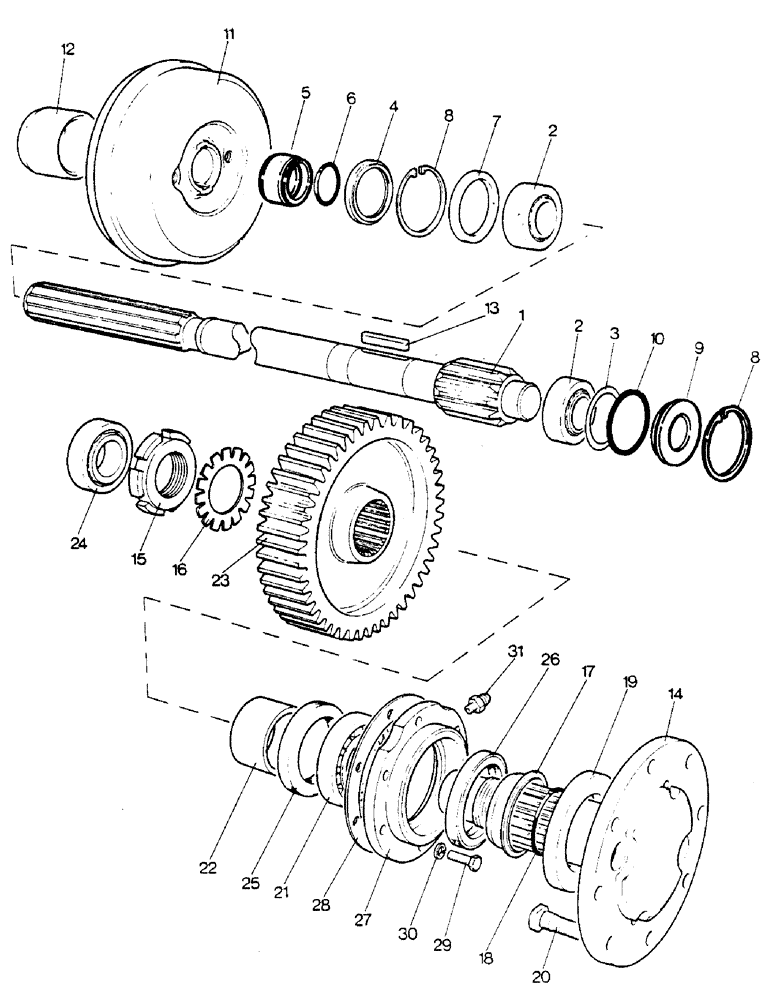

Запчасти Case IH 1390 (E1-1) - FINAL DRIVE REDUCTION GEARS AND SHAFTS (06) - POWER TRAIN

1

K956323

SHAFT

pinion, spur, 10 teeth

2шт.

1

K920435

SHAFT

pinion, spur, 9 teeth

2шт.

2

K19186

BEARING, ROLLER

BEARING roller, tapered

4шт.

3

K907514

SHIM,.003" Thk

1шт.

3

K907515

SHIM,.010" Thk

1шт.

4

K623455

SEAL

oil, 2-1/2 x 3-1/4 x 3/8 inch

2шт.

5

K954712

COLLAR

spur pinion shaft

2шт.

6

K15533

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

1-3/4 inch ID

2шт.

7

K904256

SPACER

Case

2шт.

8

K13042

RING, SNAP

RING snap, internal, 3-1/4 inch

4шт.

9

K929045

COVER

end, pinion bearing

2шт.

10

K623545

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

3 inch ID

2шт.

11

K917989

BRAKE

DRUM brake

2шт.

11

K921829

BRAKE DRUM

DRUM brake

2шт.

12

K201339

BUSHING

COLLAR drum

2шт.

13

K622324

KEY

11/32 x 1/2 x 2-1/2 inch

4шт.

K964869

DRIVE

SHAFT AND NUT ASSEMBLY final drive, Includes Ref. 14, 15 and 16

2шт.

14

NSS

NOT SOLD SEPARAT

SHAFT ASSEMBLY final drive

1шт.

15

K85359

LOCK NUT

special ring, 2-3/4 inch

1шт.

16

K85355

LOCK WASHER

TABWASHER ring nut

1шт.

17

K916497

COLLAR,69.93mm ID x 95.25mm OD x 32.89mm L

drive shaft

2шт.

18

K623595

O-RING,0.103" Thk x 2.8" ID, -149, Cl 5, 75 Duro

2-7/8 inch ID

2шт.

19

K910397

SEAL

SHIELD dirt, driveshaft

2шт.

20

K611463

STUD

BOLT special, 3/4 UNF x 2-1/2 inch

16шт.

21

K19185

TAPERED BEARING

BEARING roller, tapered

2шт.

22

K927061

SLEEVE

driveshaft, 10/49 ratio

2шт.

22

K944893

SLEEVE

driveshaft, 9/50 ratio

2шт.

23

K949145

WHEEL GEAR

GEAR spur, 50 teeth, Order K910395

2шт.

24

K19186

BEARING, ROLLER

BEARING roller, tapered

2шт.

25

K623452

SEAL,90mm ID x 110.28mm OD x 11.99mm Thk

oil, inner, 90 x 110 x 12 mm

2шт.

26

K15550

OIL SEAL,80.95mm ID x 108.08mm OD x 15.88mm Thk

oil, outer, 3-1/4 x 4-1/4 x 5/8 inch

2шт.

27

K944516

HOUSING

oil seal, right-hand

1шт.

27

K944517

HOUSING

oil seal, left-hand

1шт.

28

K902772

SHIM,.003" Thk

1шт.

28

K902773

SHIM,.006" Thk

1шт.

28

K902774

SHIM,.009" Thk

1шт.

28

K902775

GASKET

SHIM, 0.015 inch

1шт.

28

K947289

SHIM,56.36mm ID x 83.34mm OD x 0.76mm Thk

0.030 inch

1шт.

29

K600602

BOLT,Hex, 7/16" - 14 x 1 1/2", Gr 5

7/16 UNC x 1-1/2 inch, Order 113-311

12шт.

30

K19483

SPRING WASHER

lock, 7/16 inch, Order 92-7

12шт.

31

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , ANF, Order 219-8 1/4"-28 NPT x .54" lg

2шт.

K628883

O-RING,0.103" Thk x 2.737" ID, -148, Cl 5, 75 Duro

2-49/64 x 3/32 inch (70.25 x 2.38 mm), not shown

2шт.
