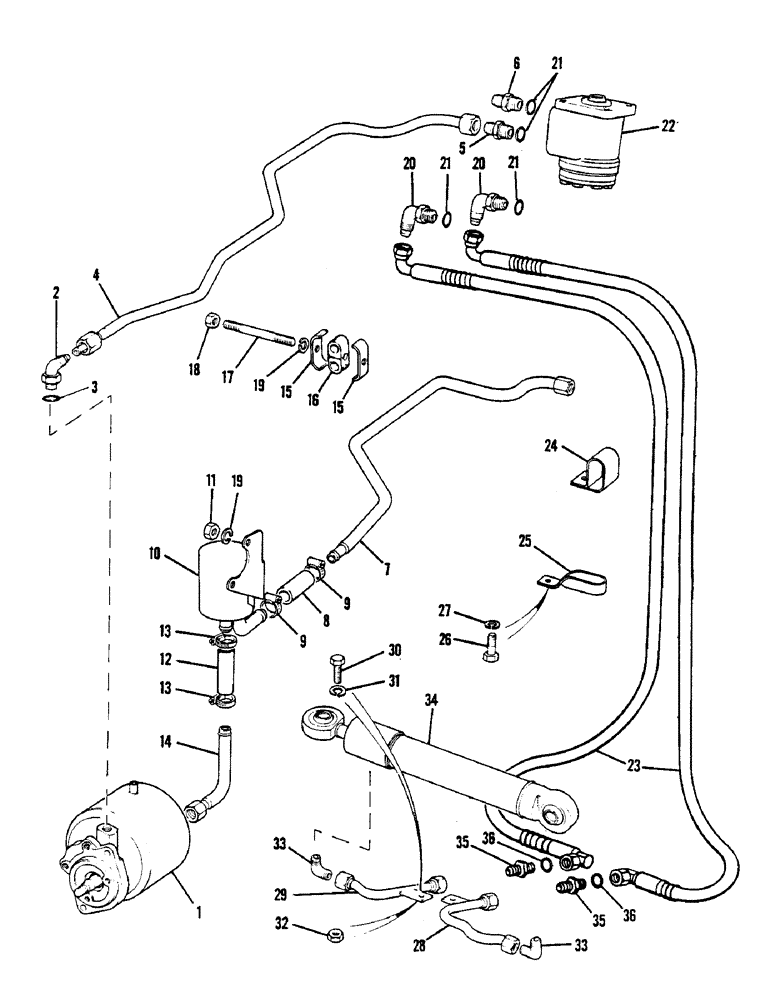

Запчасти Case IH 1390 (H3-1) - HYDROSTATIC POWER STEERING, MFD CARRARO FRONT AXLE (05) - STEERING

1

REF

INSTRUCTION

PUMP ASSEMBLY steering, See 1290 and 1390 tractors and parts catalog

1шт.

2

K622110

FITTING

ELBOW, 9/16 inch UNF, pump outlet, Order 218-5105

1шт.

3

K623649

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

7/16 inch ID

1шт.

4

K201661

PIPE,0.625" DIA

TUBE pump outlet

1шт.

5

K203639

VALVE

no return, pressure line

1шт.

6

K626062

FITTING

UNION, 3/4 - 7/8 inch UNF, Order 218-5066

1шт.

7

K204349

PIPE

TUBE pump return

1шт.

8

K626809

HOSE

return connector, 1/2 x 2-5/8 inch

1шт.

9

K622025

CLAMP

hose, Order 214-253

2шт.

10

K302508

TANK

RESERVOIR steering fluid

1шт.

11

280136

NUT,3/8"-16, G8

Order 129-103 3/8"-16, G8

2шт.

12

K204350

HOSE

return connector, 1/2 x 3 inch

1шт.

13

K622024

CLAMP

CLIP hose, Order 214-253

2шт.

14

K204351

PIPE,0.625" OD x 4.5, 3.187" L

TUBE pump inlet

1шт.

15

K951982

SHIM

CLAMP tube

2шт.

16

K951993

SLEEVE

clamp

2шт.

17

K201667

STUD

special, 3/8 UNC x 4-1/16 inch

1шт.

18

280136

NUT,3/8"-16, G8

Order 129-103 3/8"-16, G8

1шт.

19

K19482

SPRING WASHER

WASHER lock, 3/8 inch, Order 192-21

1шт.

20

K622114

FITTING

ELBOW, 3/4 inch UNF, Order 218-5106

2шт.

21

K623591

O-RING

5/8 inch ID, Order 218-5006

4шт.

22

REF

INSTRUCTION

VALVE ASSEMBLY steering, See 1290 and 1390 tractors and parts catalog

1шт.

23

K206875

HOSE

TUBE flexible, 3/4 UNF x 63 inch

2шт.

24

K628367

CLIP

tube

1шт.

25

K628368

CLIP

tube

1шт.

26

K602701

BOLT

1/4 UNC x 1/2 inch, Order 113-1

1шт.

27

K19480

SPRING WASHER

lock, 1/4 inch, Order 92-4

1шт.

28

K260227

PIPE

TUBE rigid, left-hand, Carraro 101521

1шт.

29

K260226

PIPE

TUBE rigid, right-hand, Carraro 101520

1шт.

30

K965359

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

tube, Carraro 20781

1шт.

31

K965360

LOCK WASHER,M8

WASHER lock, Carraro 22856

1шт.

32

43362

NUT,M8 x 1.25, Cl 10

M8, Cl 10, Tube Screw, Carraro 22115

1шт.

33

K260225

FITTING

ELBOW cylinder tube, Carraro 101522

2шт.

34

REF

INSTRUCTION

CYLINDER ASSEMBLY steering, See figure H2-1

1шт.

35

218-735

UNION,3/4"-16, 37 Degree x 3/4"-16, 37 Degree

CONNECTOR straight

2шт.

36

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, connector

2шт.
