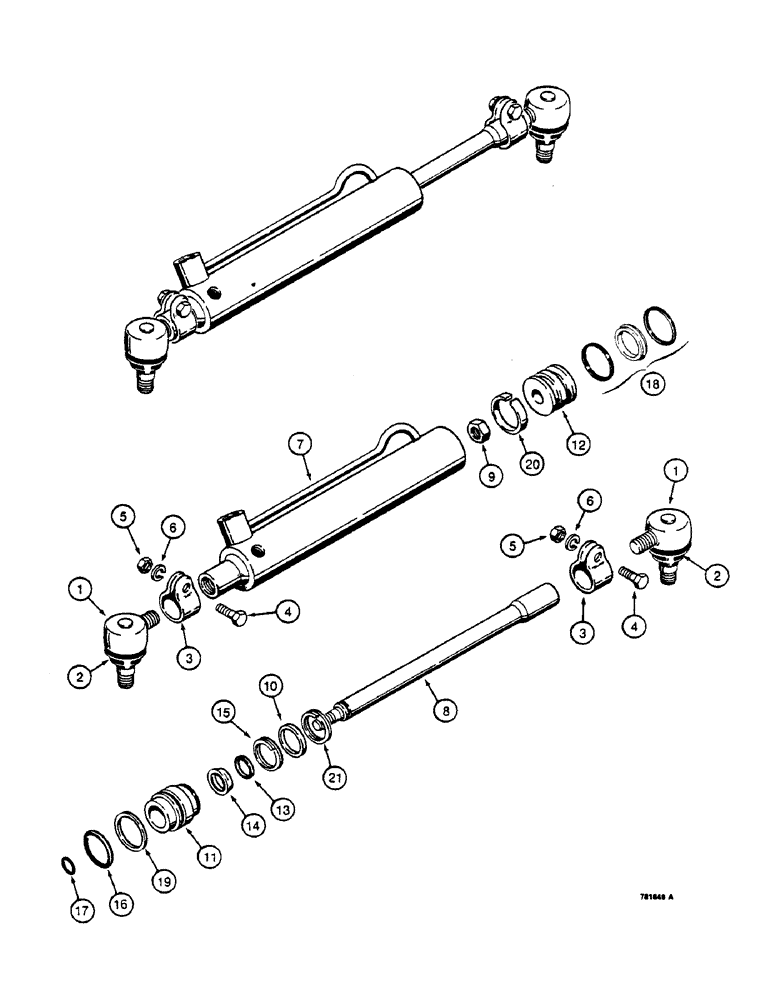

Запчасти Case IH 1390 (H2-1) - STEERING CYLINDERS (05) - STEERING

D84800

CYLINDER

steering, Includes Ref. 1 - 21

2шт.

234447A1R

REMAN-HYD CYLINDER

1390, REMAN for Part No. D84800

2шт.

234447A1C

CORE-HYD CYLINDER

Return Number

2шт.

1

A40962

BALL JOINT

END ASSEMBLY male thread, Includes Ref. 2

2шт.

2

A41424

SEAL

dust cover

1шт.

3

A27080

CLAMP

ASSEMBLY end, Includes Ref. 4, 5 and 6

2шт.

4

14-624

BOLT,Hex, 3/8" - 24 x 1-1/2", Gr 5

hex, 3/8 NF x 1-1/2 inch, Order 114-203

1шт.

5

25-116

NUT,Hex, 3/8"-24, G5

hex, 3/8 inch NF, Order 129-123

1шт.

6

92-6

LOCK WASHER,3/8"

1шт.

7

NSS

NOT SOLD SEPARAT

TUBE cylinder

1шт.

8

A44642

ROD

cylinder

1шт.

9

131-1265

NUT

self-locking hex, 9/16 inch NF

1шт.

10

A44641

SPACER,31.62mm ID x 34.37mm OD x 7.7mm L

head

1шт.

11

D83189

GLAND

ASSEMBLY cylinder, Includes bushing

1шт.

12

D83190

PISTON

cylinder

1шт.

D83184

GASKET KIT

KIT cylinder repair, Includes Ref. 13 - 20

1шт.

13

A44651

WIPER SEAL,18.49mm ID x 25.3mm OD x 3.63mm Thk

WIPER rod

1шт.

14

NSS

NOT SOLD SEPARAT

SEAL rod, Order D83184

1шт.

15

A44652

SNAP RING,#150, 1.591", Int, Spiral

RING lock, gland

1шт.

16

A41184

O-RING,1.234" ID x 1.512" OD x 0.139"

outer gland

1шт.

17

A30097

O-RING,0.549" ID x 0.755" OD x 0.103"

rod to piston

1шт.

18

NSS

NOT SOLD SEPARAT

SEAL piston, Order D83184

1шт.

19

A45035

SEALING RING,34.88mm ID x 38mm OD x 1.58mm W

RING backup

1шт.

20

NSS

NOT SOLD SEPARAT

RING wear

1шт.

21

A44654

SNAP RING,#125, 1.188", Ext Spiral

RING lock, outer

1шт.
