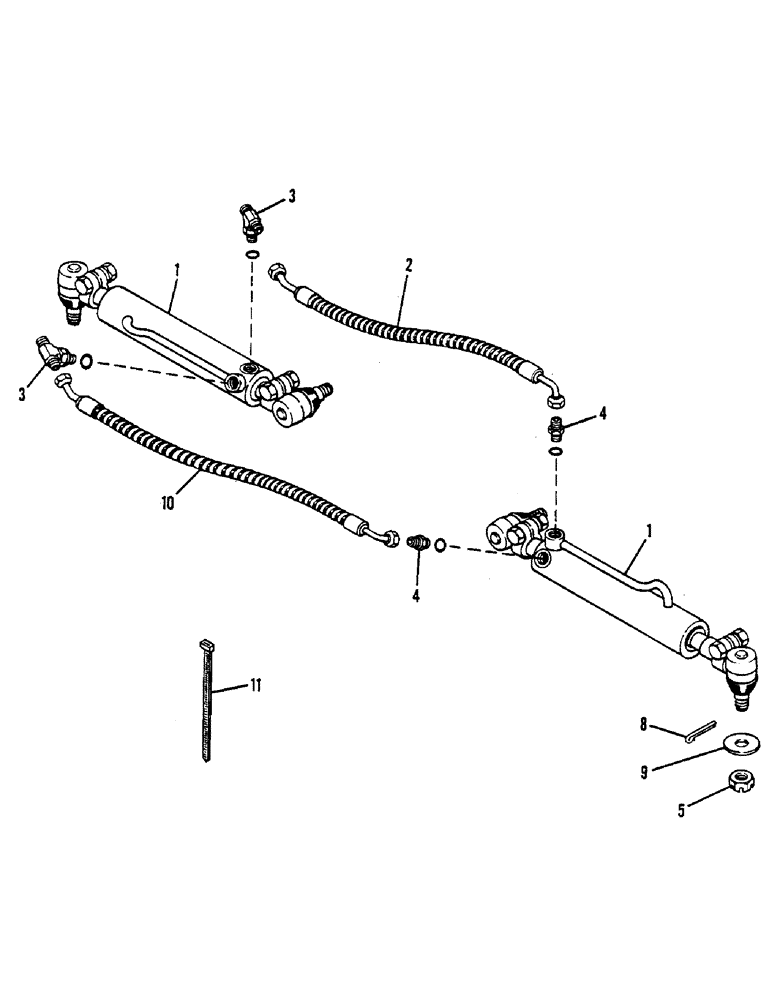

Запчасти Case IH 1390 (H1-1) - STEERING SYSTEM (05) - STEERING

1

REF

INSTRUCTION

CYLINDER steering, See figure H2-1

2шт.

2

D120111

HOSE

cylinder, Order D122787

1шт.

3

218-5193

TEE,3/4"-16, 37 Degree x 9/16"-18 x 7/8"-14, O-Ring Br

hose

2шт.

4

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

CONNECTOR straight

2шт.

5

25-1310

SLOTTED NUT,5/8"-18, G5

NUT hex, 5/8 inch NF, Order 129-610

4шт.

8

132-50

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), , Order 132-335 1/8" x 1 1/4"

4шт.

9

95-10

WASHER,5/8"

11/16 x 1-3/4 x 9/64 inch (17.46 x 44.45 x 3.57 mm)

8шт.

10

D120112

HOSE

cylinder, Order D122788

1шт.

11

L11541

CABLE TIE,203.2mm L, Nylon

STRAP hose retaining

1шт.
