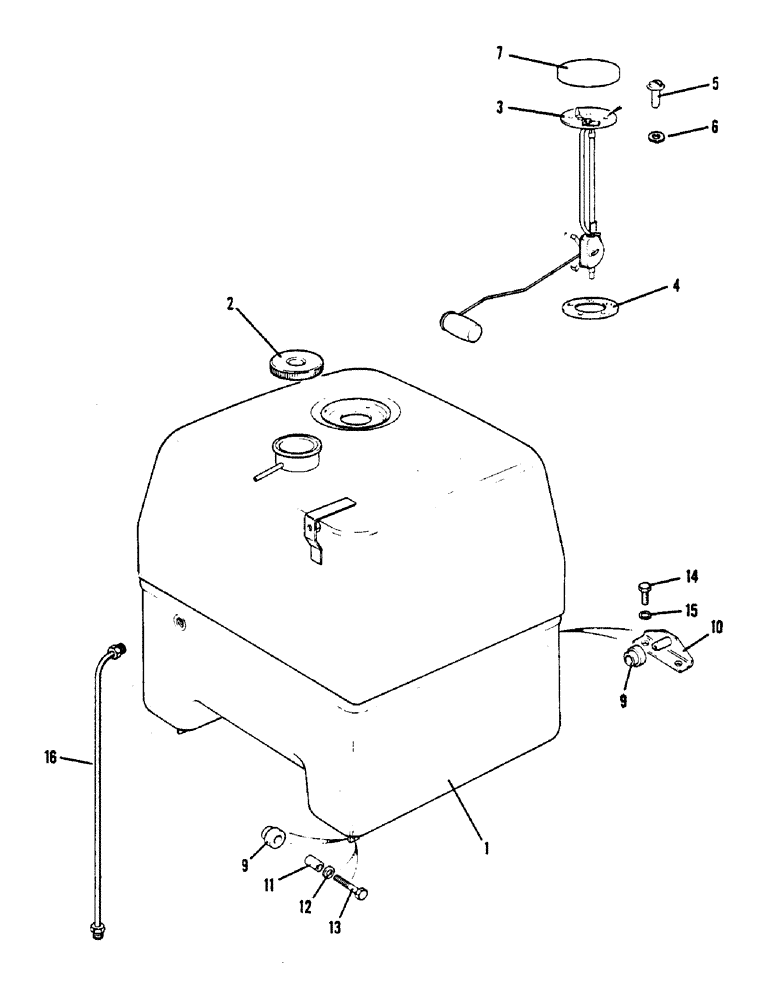

Запчасти Case IH 1390 (B1-1) - FUEL TANK AND SUPPORTS (03) - FUEL SYSTEM

1

K306168

TANK

fuel

1шт.

2

K901983

CAP

filler

1шт.

3

K301063

ELECTRICAL GAUGE

UNIT sending, fuel gauge

1шт.

4

K946159

GASKET

tank sending unit

1шт.

5

K614965

SCREW

no. 10 UNF x 5/8 inch

5шт.

6

K627479

WASHER

fiber

5шт.

7

K304807

COVER

PLUG plastic

1шт.

9

K200826

BUSHING,12.7mm ID x 20mm OD x 20.64mm L

plastic

3шт.

10

K200825

SUPPORT

BRACKET fuel tank support

1шт.

11

K627323

SPACER

mounting

2шт.

12

K19472

WASHER

3/8 inch

2шт.

13

K600561

BOLT

3/8 UNC x 1-5/8 inch, Order 113-2248

2шт.

14

K602982

SCREW,3/8" - 16 x 3/4", Gr S

BOLT, 3/8 UNC x 3/4 inch, Order 113-206

2шт.

15

K19482

SPRING WASHER

WASHER lock, 3/8 inch, Order 192-21

2шт.

16

K203667

PIPE,0.312" OD x 20, 2" L

TUBE nylon, tank to pump, 20 inch, threaded both ends

1шт.
