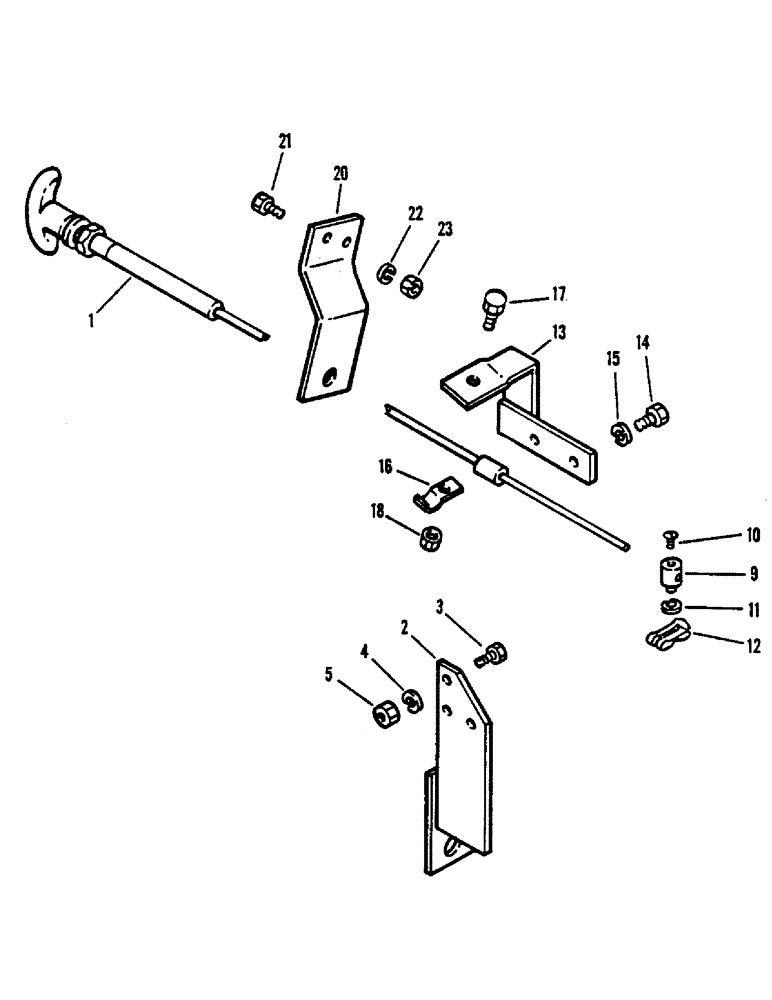

Запчасти Case IH 1390 (B2-1) - ENGINE STOP CONTROLS (02) - ENGINE

1

K304813

CABLE

ASSEMBLY stop control

1шт.

2

K304580

BRACKET

mounting, rear

1шт.

3

K612703

SCREW

BOLT hex, 1/4 NF x 3/4 inch

3шт.

4

K19480

SPRING WASHER

lock, 1/4 inch, Order 92-4

3шт.

5

K61700

NUT

hex, 1/4 inch NF, Order 129-127

3шт.

9

K205990

TRUNNION

PIN trunnion

1шт.

10

K606407

SCREW

hex, no. 10 NC x 1/2 inch

1шт.

11

K19470

WASHER

lock, 1/4 inch

1шт.

12

K625039

CLIP

CUP retaining

1шт.

13

K304437

MOUNTING PARTS

BRACKET mounting, front

1шт.

14

K612701

SCREW

BOLT hex, 1/4 NF x 1/2 inch

1шт.

15

K626341

SPRING WASHER

WASHER lock, 1/4 inch, Order 192-19

2шт.

16

K657014

CABLE

CLAMP cable

1шт.

17

K602701

BOLT

hex, 1/4 NC x 1/2 inch, Order 113-1

1шт.

18

K607300

NUT

hex, self locking, 1/4 inch NC, Order 131-71

1шт.

20

K304633

BRACKET

stop cable, vegetable special only

1шт.

21

K650327

SCREW

BOLT, M6 x 16 mm, Order 813-6016

2шт.

22

K651847

WASHER, LOCK

WASHER lock, 6 mm

2шт.

23

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

Order 825-1006 M6, Cl 10

2шт.
