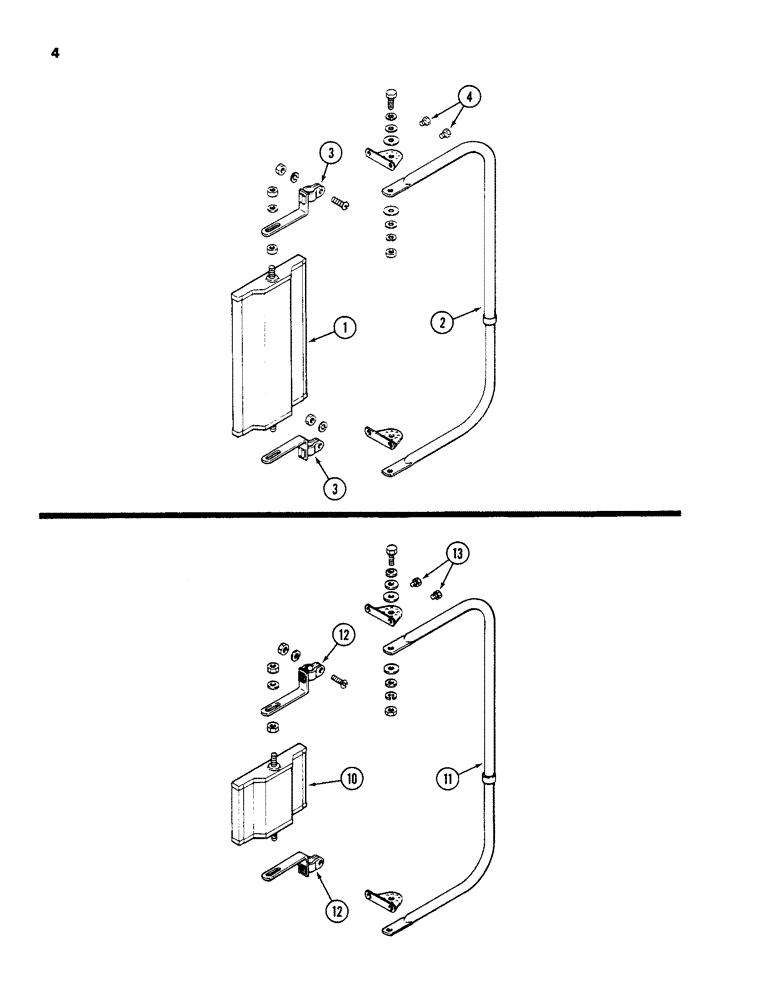

Запчасти Case IH 1390 (04) - MIRRORS, DUAL VISION, TRACTORS WITH CAB (09) - CHASSIS
10
11
2
3
4
12
1
12
13
3
№
Артикул
Название
Примечание
Количество
A177935
MIRROR
ATTACHMENT mirror, machinery item, Replaces A61895, Includes Ref. 1 - 4
1шт.
1
A42765
MIRROR
dual vision
1шт.
2
A42764
BRACKET
mirror swing-away
1шт.
3
A42767
ADAPTER
mirror bracket
2шт.
4
187-1021
SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 3/8"
SCREW, 1/4 x 3/8" hex, shakeproof
4шт.
A177935
MIRROR
ATTACHMENT mirror, 4 x 6 convex, machinery item, Replaces A61897, Includes Ref. 10 - 13
1шт.
10
A42767
ADAPTER
MIRROR 4 x 6 convex
1шт.
11
A42764
BRACKET
mirror swingaway
1шт.
12
A42767
ADAPTER
mirror bracket
2шт.
13
187-1021
SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 3/8"
SCREW, 1/4 x 3/8" hex, shakeproof
4шт.
Выбрано товаров: 10
