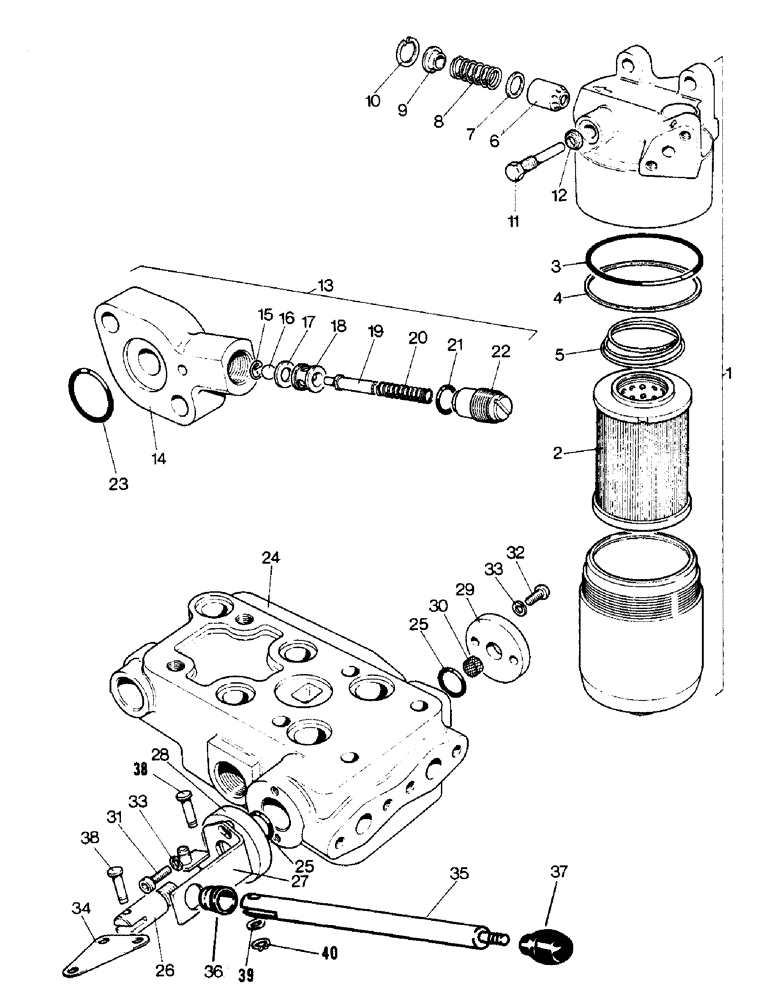

Запчасти Case IH 1390 (K-09) - FILTER, BLEED VALVE AND COMBINING VALVE, 1390 TRACTOR (07) - HYDRAULICS

1

K952363

FILTER

ASSEMBLY - hydraulic, Includes Ref: 2 - 10

1шт.

2

K946095

FILTER, ELEMENT

ELEMENT KIT - filter (Order A167593), Includes Ref: 3 and 4

1шт.

3

K628866

O-RING,0.139" Thk x 3.609" ID, -239, Cl 5, 75 Duro

RING - sealing

1шт.

4

K628915

RING

- back-up

1шт.

5

K625299

SPRING

- ejector, element

1шт.

6

K953564

VALVE

PLUNGER - valve

1шт.

7

K626406

WASHER

- plunger

1шт.

8

K625298

WASHER

SPRING - relief

1шт.

9

K953563

RETAINER

- spring

1шт.

10

K621493

SNAP RING,#81K, .853", Int, Spiral

RING - snap

1шт.

11

K947791

PIN

BOLT - 7/16 inch UNC - special

1шт.

12

K626522

SEALING WASHER

- sealing, 7/16 inch

1шт.

13

K928525

VALVE

ASSEMBLY - bleed, Includes Ref: 14 - 23

1шт.

14

K928518

HOUSING

BODY - valve

1шт.

15

K924115

BALL

RETAINER - ball

1шт.

16

K620089

BALL

- 9/32 inch, steel

1шт.

17

K626792

WASHER

- 5/16 inch, special

1шт.

18

K924321

VALVE

SEAT - valve

1шт.

19

K924117

PLUNGER

- valve

1шт.

20

K625233

SPRING

- relief

1шт.

21

K24554

O-RING

- 3/8 inch ID

1шт.

22

K924116

PLUG

- 5/8 inch UNF special

1шт.

23

K14509

O-RING,0.796" ID x 1.047" OD x 0.139"

- 13/16 inch ID

2шт.

24

K203624

VALVE

ASSEMBLY - combining

1шт.

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

NSS

NOT SOLD SEPARAT

SPOOL - valve

1шт.

25

K625405

O-RING,0.549" ID x 0.103" Width

- 9/16 inch ID

2шт.

26

K203441

SPOOL

END - spool

1шт.

27

K203778

BRACKET

ASSEMBLY - spool

1шт.

28

K202861

CAP

- end

1шт.

29

K202852

CAP

ASSEMBLY - end, Includes Ref: 30

1шт.

30

K915393

FOAM

BREATHER PAD - cap

1шт.

31

K616489

SOCKET/RECEPTACLE

SCREW - no. 10 UNF x 1 inch

2шт.

32

K616485

SCREW

- no. 10 UNF x 1/2 inch

2шт.

33

K626340

RING

WASHER - lock, 3/16 inch

2шт.

34

K202388

LEVER

- actuating

1шт.

35

K206435

LEVER

- hand (Replaces K203442)

1шт.

36

K628756

BUSHING

- lever

1шт.

37

K950493

KNOB

- lever

1шт.

38

K203775

PIN

- clevis, 1/4 x 7/8 inch

2шт.

39

K627473

WASHER

- 1/4 inch

1шт.

40

K24568

SNAP RING,#25, Ext

Ring, Snap, #25, Ext

3шт.
