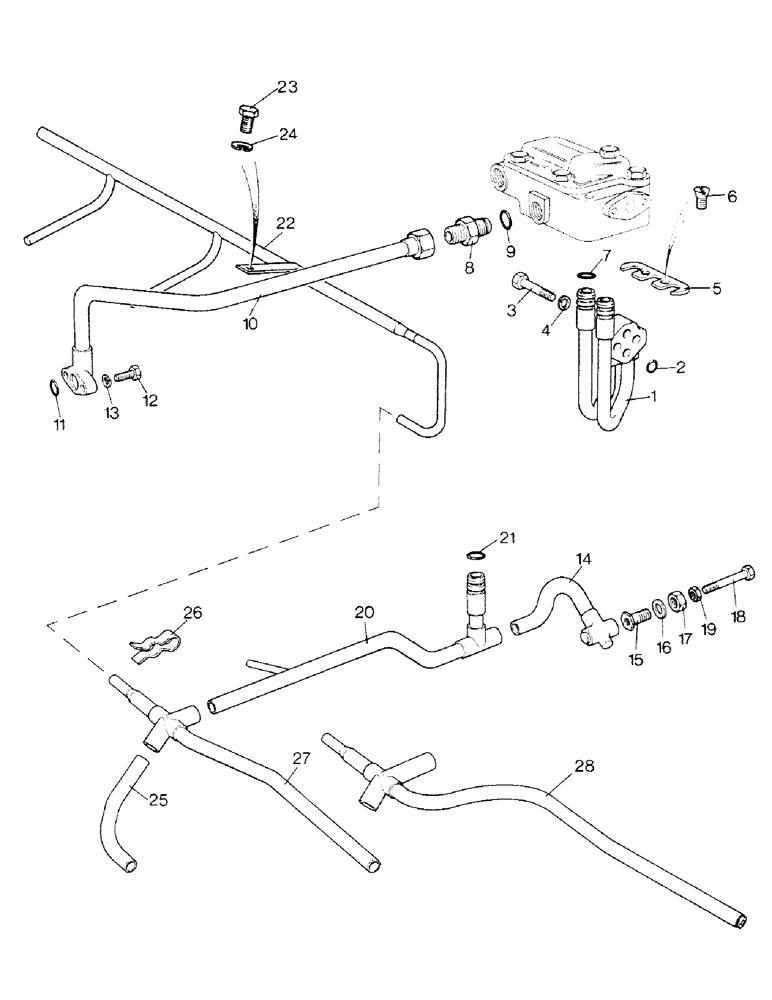

Запчасти Case IH 1390 (K-08) - HYDRAULIC TUBES, REAR AXLE, 1390 TRACTOR (07) - HYDRAULICS

1

K952224

PIPE

TUBE - control valve

1шт.

2

K625408

O-RING

- 7/16 inch ID

2шт.

3

K600561

BOLT

- 3/8 UNC x 1-5/8 inch

2шт.

4

K19482

SPRING WASHER

WASHER - lock, 3/8 inch

2шт.

5

K915344

WASHER

PLATE - locating

1шт.

6

K603662

SCREW

BOLT - 1/4 UNC x 5/8 inch

2шт.

7

K625405

O-RING,0.549" ID x 0.103" Width

- 9/16 inch ID

2шт.

8

K626026

FITTING

UNION - 7/8 inch UNF

1шт.

9

K623592

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 5/8 inch ID

1шт.

10

K919244

PIPE,16.375, 4.875" L

TUBE - ram cylinder

1шт.

11

K24852

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

- 11/16 inch ID

1шт.

12

K602849

SCREW

BOLT - 5/16 UNC x 7/8 inch

2шт.

13

K19481

SPRING WASHER

WASHER - lock, 5/16 inch

2шт.

14

K915339

TUBE

- control, Serial Range: valve-tee

1шт.

15

K912269

BUSHING

ADAPTOR - 1/2-5/16 inch UNC

1шт.

16

K626577

WASHER

- sealing, 1/2 inch

1шт.

17

86632558

JAM NUT,Jam, 1/2"-13, G5

NUT - lock, 1/2 inch UNC

1шт.

18

K602816

SCREW

BOLT - 5/16 UNC x 2-3/8 inch

1шт.

19

K607081

LOCK NUT

NUT - lock, 5/16 inch UNC

1шт.

20

K916891

PIPE

TUBE - distribution block to cross piece

1шт.

21

K625405

O-RING,0.549" ID x 0.103" Width

- 9/16 inch ID

1шт.

22

K929551

PIPE,18.937, 4" L

TUBE - gearbox lubrication

1шт.

23

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

- 1/4 UNC x 1/2 inch

1шт.

24

K626341

SPRING WASHER

WASHER - lock, 1/4 inch

1шт.

25

K913785

PIPE,0.5" OD

TUBE - ram cylinder lubrication

1шт.

26

K625009

SPRING

CLIP - retaining

1шт.

27

K950514

PIPE

TUBE - reversible shaft PTO lubrication

1шт.

28

K919662

PIPE

TUBE - single and multi-speed lubrication

1шт.
