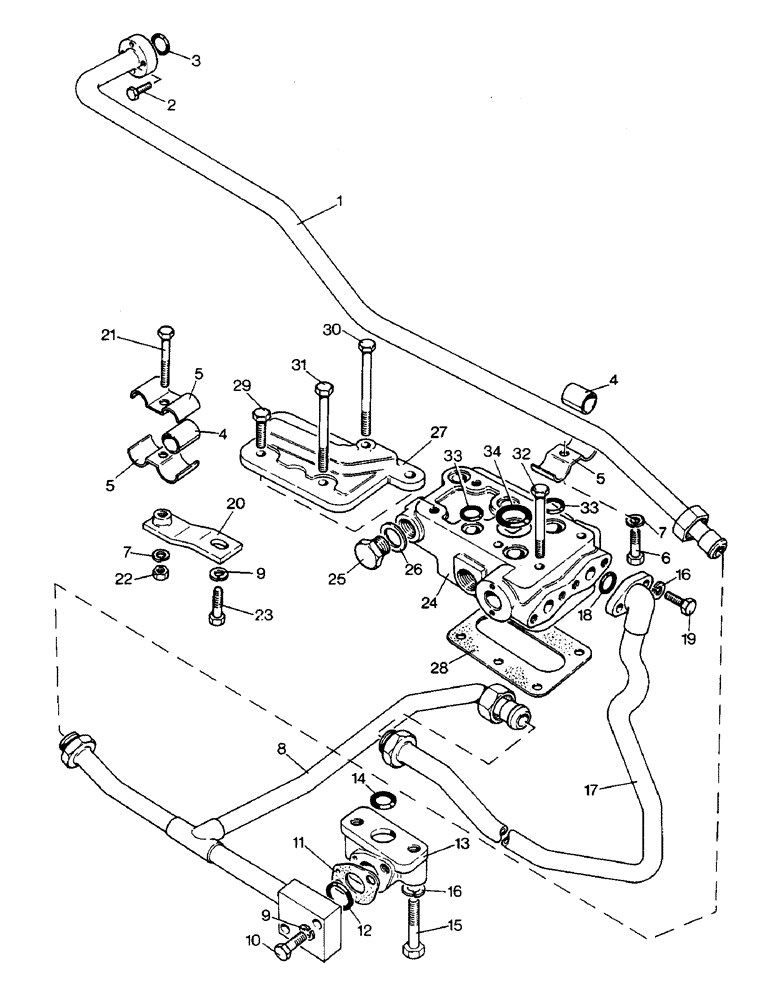

Запчасти Case IH 1390 (K-07) - HIGH PRESSURE TUBES, FRONT CHAMBER OF TANDEM PUMP, 1390 TRACTOR (07) - HYDRAULICS

1

K200250

PIPE,42.937, 8.703" L

TUBE - outlet, front pump

1шт.

2

K606504

SCREW

- 1/4 UNC x 1 inch

4шт.

3

K24676

O-RING,0.103" Thk x 0.612" ID, -114, Cl 6, 90 Duro

- 5/8 inch ID

1шт.

4

K200258

BUSHING

SLEEVE - nylon

4шт.

5

K916899

BRACKET

- tube clip

4шт.

6

413-518

BOLT,Hex, 5/16" - 18 x 1-1/8", Gr 5

- 5/16 UNC x 1-1/8 inch

2шт.

7

K19481

SPRING WASHER

WASHER - lock, 5/16 inch

3шт.

8

K200253

PIPE

TUBE - relief, Serial Range: valve-union

1шт.

9

K19482

SPRING WASHER

WASHER - lock, 3/8 inch

9шт.

10

K600561

BOLT

- 3/8 inch UNC

2шт.

11

K928522

SEAL

- valve and tube

1шт.

12

K14509

O-RING,0.796" ID x 1.047" OD x 0.139"

- 13/16 inch ID

1шт.

13

K952323

VALVE

- relief, pre-set

1шт.

14

K24852

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

- valve

1шт.

15

K600608

BOLT

- 7/16 UNC x 2-1/4 inch

2шт.

16

K626344

WASHER, LOCK

WASHER - lock, 7/16 inch

4шт.

17

K200252

PIPE,33.312, 14.562" L

TUBE - union to combining valve

1шт.

18

K24852

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

- 11/16 inch ID

2шт.

19

K602849

SCREW

BOLT - 5/16 UNC x 7/8 inch

2шт.

20

K200251

BRACKET

- tube clip

1шт.

21

K600365

BOLT

- 5/16 UNC x 1-1/2 inch

1шт.

22

9635082

NUT,5/16" - 18, Gr 5

- 5/16 inch UNC

1шт.

23

K602982

SCREW,3/8" - 16 x 3/4", Gr S

BOLT - 3/8 UNC x 3/4 inch

1шт.

24

K203624

VALVE

ASSEMBLY - combining, see page K9-1

1шт.

25

K619528

PLUG

- 7/8 inch UNF

1шт.

26

K30085

GASKET

WASHER - fiber, 7/8 inch

1шт.

27

K919242

COVER

PLATE - cover

1шт.

28

K917387

GASKET

- valve

1шт.

29

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

30

K600421

BOLT

- 3/8 UNC x 4-1/4 inch (Tandem pump)

1шт.

30

K600414

BOLT

- 3/8 UNC x 2-3/4 inch (Single pump)

1шт.

31

K600419

BOLT

- 3/8 UNC x 3-3/4 inch (Tandem pump)

2шт.

31

K600416

BOLT

- 3/8 UNC x 3 inch (Single pump)

2шт.

32

K600417

BOLT

- 3/8 UNC x 3-1/4 inch (Tandem pump)

1шт.

32

K600418

BOLT

- 3/8 UNC x 3-1/2 inch (Single pump)

1шт.

33

K24556

O-RING,0.734" ID x 1.012" OD x 0.139"

- 3/4 inch ID

2шт.

34

K623588

O-RING,2.69mm Thk x 29.97mm ID, 75 Duro

- 1-3/16 inch ID

1шт.
