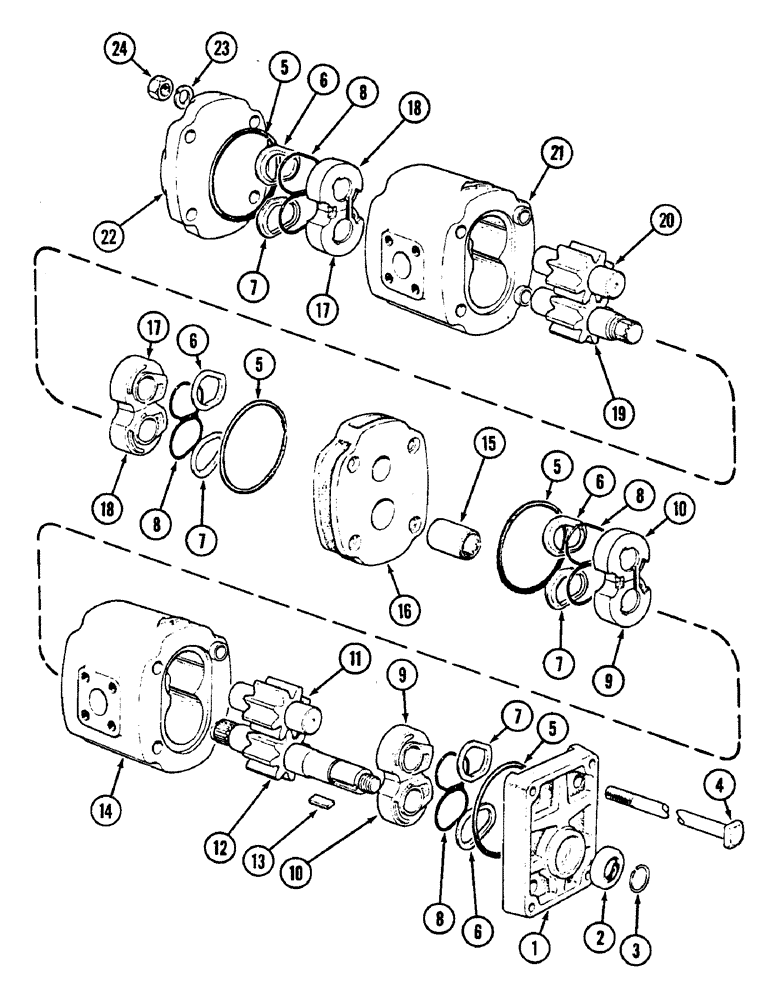

Запчасти Case IH 1390 (K-04[B]) - HYDRAULIC PUMP (DOWTY IP3044-IP3036), 1390 TRACTOR (07) - HYDRAULICS

1

K954263

PUMP

ASSEMBLY - hydraulic (Dowty IP3044-IP3036), Includes Ref: 1 - 23

1шт.

1

K962568

FLANGE

- mounting

1шт.

2

NSS

NOT SOLD SEPARAT

SEAL - oil, flange

1шт.

Part of pump seal kit, P/N K260307

1шт.

3

A48381

RING

- snap, support

1шт.

4

A48387

BOLT

- through, 3/8 inch UNF square head

4шт.

5

A48382

O-RING

- sealing, pump

4шт.

Part of pump seal kit, P/N K260307

1шт.

6

NSS

NOT SOLD SEPARAT

RING - backing

4шт.

Part of pump seal kit, P/N K260307

1шт.

7

NSS

NOT SOLD SEPARAT

RING - backing

4шт.

Part of pump seal kit, P/N K260307

1шт.

8

NSS

NOT SOLD SEPARAT

SEAL - lobe, pump

4шт.

Part of pump seal kit, P/N K260307

1шт.

9

A48373

BUSHING

- front gear

2шт.

10

A48377

GEAR

BUSHING - front gear

2шт.

11

A48379

GEAR

- driven, front pump

1шт.

12

A48378

GEAR

- drive, front pump

1шт.

13

NSS

NOT SOLD SEPARAT

KEY - drive gear

1шт.

Part of pump seal kit, P/N K260307

1шт.

14

NSS

NOT SOLD SEPARAT

BODY - pump, front

1шт.

15

A48380

COUPLING, BREAK AWAY

COUPLING - pump, splined

1шт.

16

NSS

NOT SOLD SEPARAT

PLATE - center, pump

1шт.

17

A48383

BUSHING

- rear gear

2шт.

18

A48384

BUSHING

- rear gear

2шт.

19

A48385

GEAR

- drive, rear pump

1шт.

20

A48386

GEAR

- driven, rear pump

1шт.

21

NSS

NOT SOLD SEPARAT

BODY - pump, rear

1шт.

22

K962569

COVER

- end, pump

1шт.

23

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

24

25-176

NUT,3/8"-24, G5, Hvy

- hex, 3/8 inch UNF

4шт.

K260307

SEAL KIT

KIT - pump, Includes: Refs. 2, 5, 6, 7, 8 and 13

1шт.
