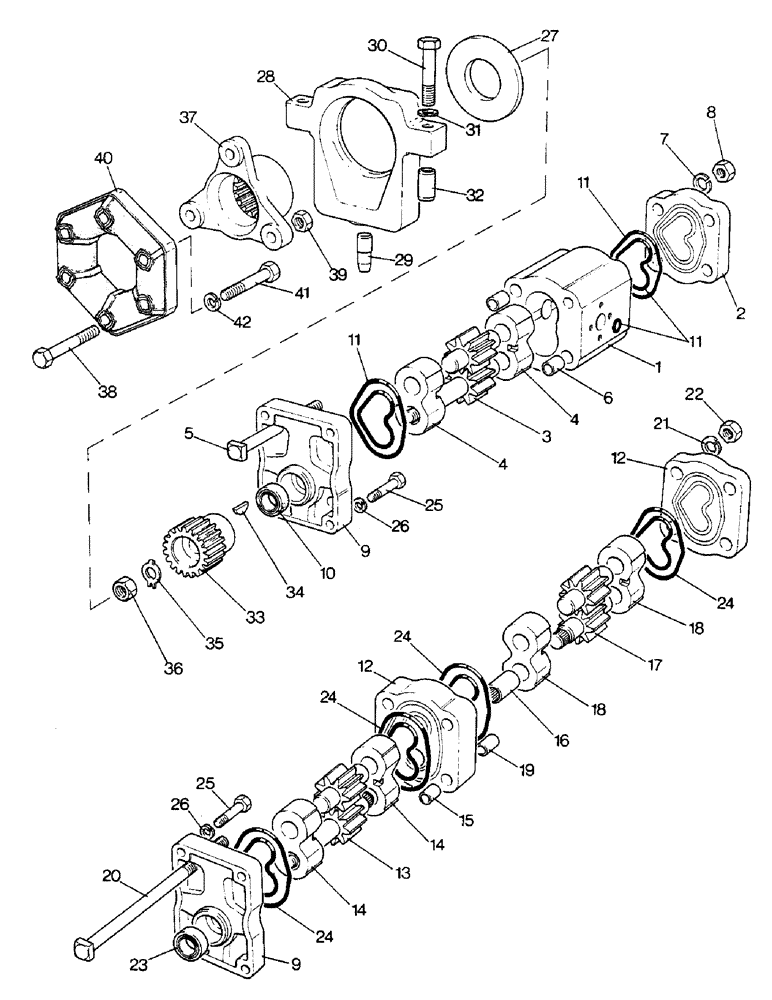

Запчасти Case IH 1390 (K-04[A]) - HYDRAULIC PUMP (PLESSEY A33/17268), 1390 TRACTOR (07) - HYDRAULICS

1

K944907

PUMP

ASSEMBLY - hydraulic, single (Plessey A33/17268), Includes: Ref. 2 - 11

1шт.

2

K962112

COVER

- pump

1шт.

3

K964838

ROTOR

S - pump (Set of 2)

1шт.

4

K964840

BEARING

ASSEMBLY - pump (With bushings)

2шт.

5

K964839

BOLT

- 3/8 inch UNF, special

4шт.

6

K964920

PIN

DOWEL - ring

4шт.

7

K19482

SPRING WASHER

WASHER - lock, 3/8 inch

4шт.

8

K964837

NUT

- 3/8 inch UNF

4шт.

9

K962100

PLATE

FLANGE - pump

1шт.

10

K962106

OIL SEAL,16.13mm ID x 28.83mm OD x 7.92mm Thk

- oil, 5/8 x 1-1/8 x 5/16 inch

1шт.

11

K964831

SEAL

SEAL KIT - pump

1шт.

12

K916535

PUMP

ASSEMBLY - hydraulic, tandem (Plessey A33/25,07724), Includes: Ref. 13 - 24

1шт.

K916535R

REMAN-HYD PUMP

1390 (1/80-12/83)

1шт.

K916535C

CORE-HYDRAULIC PUMP

Return Number

1шт.

13

K962109

GEAR

ROTORS - pump (Set of 2)

1шт.

14

K962116

BEARING ASSY

BEARING ASSEMBLY - pump (With bushings)

2шт.

15

K962099

PIN

DOWEL - ring

4шт.

16

K962107

COUPLING, BREAK AWAY

COUPLING - bearing

1шт.

17

K962105

GEAR

ROTORS - pump (Set of 2)

1шт.

18

K962089

BEARING

ASSEMBLY - pump (With bushings)

2шт.

19

K964920

PIN

DOWEL - ring

4шт.

20

K962111

BOLT

- 3/8 inch UNF, special

4шт.

21

K19482

SPRING WASHER

WASHER - lock, 3/8 inch

4шт.

22

K616982

NUT

- 3/8 inch UNF

4шт.

23

K962106

OIL SEAL,16.13mm ID x 28.83mm OD x 7.92mm Thk

- oil, 5/8 x 1-1/8 x 5/16 inch

1шт.

24

K964831

SEAL

SEAL KIT - pump

1шт.

25

K606506

BOLT

- 1/4 UNC x 1-1/4 inch

4шт.

26

K626341

SPRING WASHER

WASHER - lock, 1/4 inch

4шт.

27

K200045

DISC

- locating

1шт.

28

K200174

PUMP

BRACKET - support, pump

1шт.

29

K621815

PIN

DOWEL - 1/2 x 1-1/2 inch

1шт.

30

K600408

BOLT,3/8" x 2"

- 3/8 UNC x 2 inch

2шт.

31

K19482

SPRING WASHER

WASHER - lock, 3/8 inch

2шт.

32

K622042

RING

DOWEL - ring

2шт.

33

K200046

GEAR

SLEEVE - drive, pump

1шт.

34

K19604

KEY

- Woodruff no. 405

1шт.

35

K626380

WASHER

- tab, gear nut

1шт.

36

425-157

JAM NUT,Jam, 7/16"-20, G5

- 7/16 inch UNF

1шт.

37

K200047

COUPLING

COUPLING - pump drive

1шт.

38

K600563

BOLT

- 3/8 UNC x 2-1/4 inch

3шт.

39

232-1416

LOCK NUT,3/8"-16, GC

NUT - self-locking, 3/8 inch UNC

3шт.

40

K955266

FLEXIBLE COUPLING

COUPLING - flexible

1шт.

41

K600408

BOLT,3/8" x 2"

- 3/8 UNC x 2 inch

3шт.

42

K19482

SPRING WASHER

WASHER - lock, 3/8 inch

3шт.

K200916

PUMP

ASSEMBLY - single (Dowty IP 3044)

1шт.

K954263

PUMP

ASSEMBLY - tandem (Dowty IP-IP/3044-3036) (See page K4-3)

1шт.

K260308

GASKET KIT

KIT - seals for K200916

1шт.

K260307

SEAL KIT

KIT - seals for K954263

1шт.

K307058

PUMP

ASSEMBLY - single (Bosch 0510-625-339)

1шт.

K261709

SEAL

- shaft

1шт.

26

K261708

SEAL

KIT - seal

1шт.
