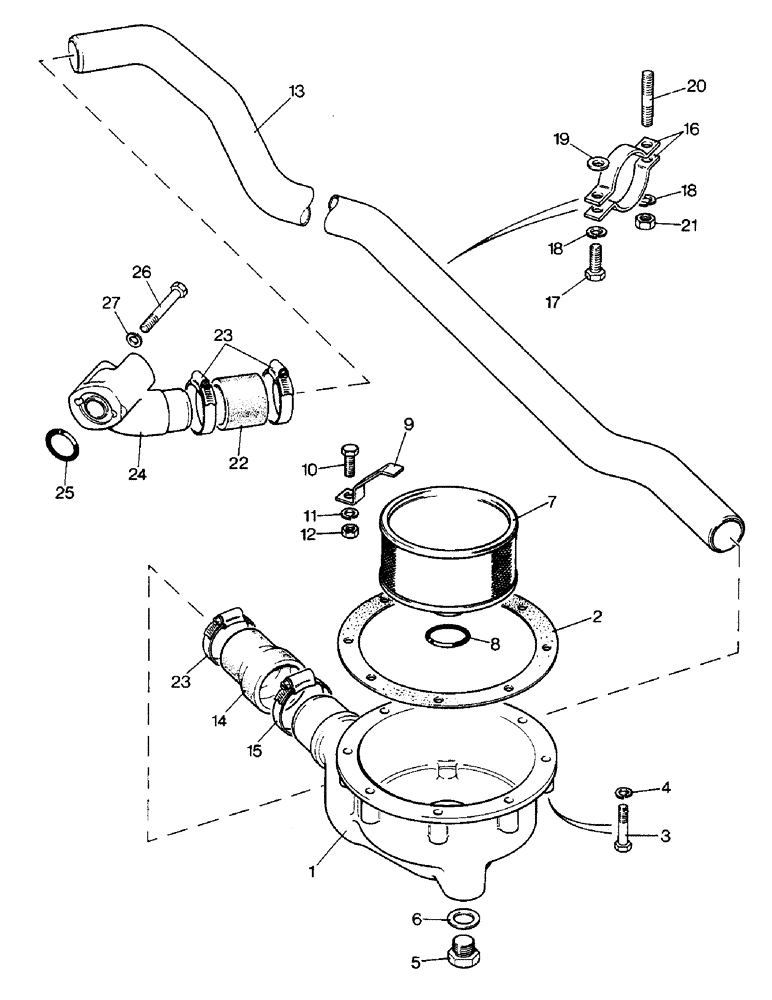

Запчасти Case IH 1390 (K-02) - HYDRAULIC INLET FILTER, 1390 TRACTOR (07) - HYDRAULICS

1

K956341

HOUSING

- inlet filter

1шт.

2

K906764

GASKET

- housing

1шт.

3

K605697

BOLT

- 5/16 UNC x 1-3/4 inch

8шт.

4

K19481

SPRING WASHER

WASHER - lock, 5/16 inch

8шт.

5

K623849

PLUG

- 1/2 inch BSP

1шт.

6

K15143

WASHER

- sealing

1шт.

7

K946089

STRAINER ELEMENT

FILTER - inlet

1шт.

8

K15279

O-RING,0.139" Thk x 1.359" ID, -220, Cl 5, 75 Duro

- 1-3/4 inch ID

1шт.

9

K200177

RETAINER

PLATE - retainer

1шт.

10

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

11

K19482

SPRING WASHER

WASHER - lock, 3/8 inch

1шт.

12

280136

NUT,3/8"-16, G8

1шт.

13

K956340

PIPE,59.625, 10.25" L

TUBE - inlet

1шт.

14

K924378

HOSE

-, Serial Range: housing-tube

1шт.

15

K622031

CLAMP

CLIP - hose, 2-1/2 inch (Order 214-260)

1шт.

16

K916897

SHIM

BRACKET - tube

4шт.

17

K602883

SCREW,5/16" - 18 x 3/4", Gr V

BOLT - 5/16 UNC x 3/4 inch

2шт.

18

K19481

SPRING WASHER

WASHER - lock, 5/16 inch

4шт.

19

K626682

WASHER

- 5/16 inch

1шт.

20

K608128

STUD

- 5/16 UNC x 1-3/8 inch

2шт.

21

9635082

NUT,5/16" - 18, Gr 5

- 5/16 inch UNC

2шт.

22

K917126

HOSE

- elbow

1шт.

23

K622030

CLAMP

CLIP - hose, 2-1/4 inch

3шт.

24

K200176

FITTING

ELBOW - pump inlet, except Dowty tandem pump

1шт.

24

K205703

FITTING

ELBOW - pump inlet, Dowty tandem pump only

1шт.

25

K623561

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

- 1 inch ID

1шт.

26

K600217

BOLT

- 5/16 UNC x 3 inch

2шт.

27

K19481

SPRING WASHER

WASHER - lock, 5/16 inch

2шт.
