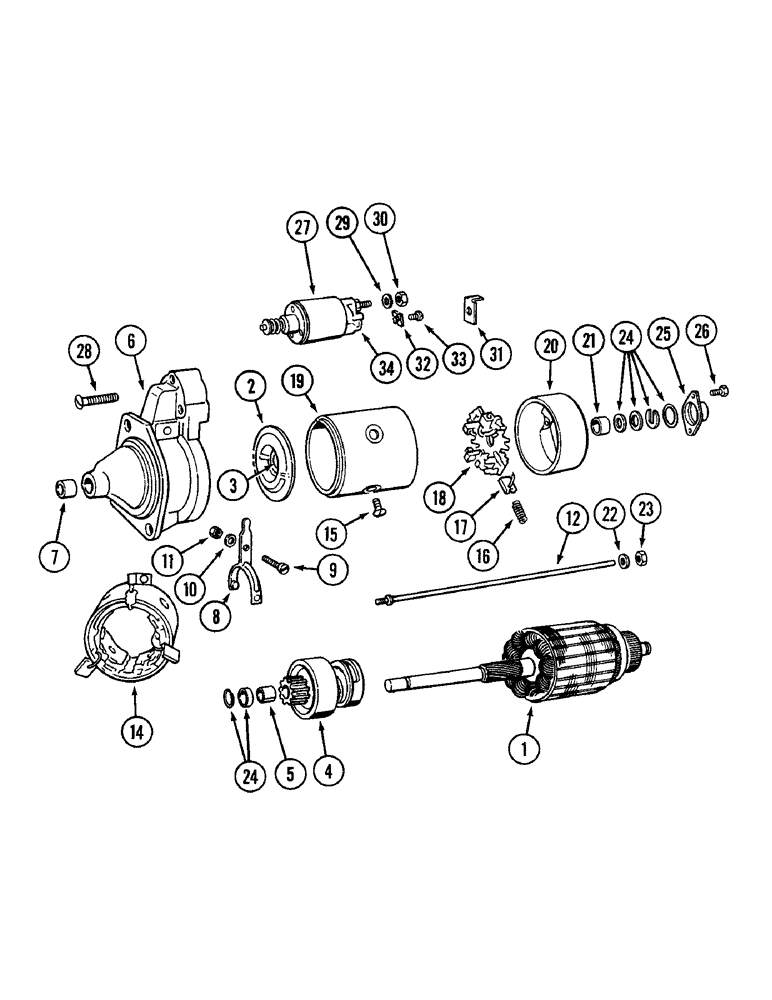

Запчасти Case IH 1390 (S-14) - K954700 STARTER (BOSCH A001812178) (06) - ELECTRICAL SYSTEMS

K954700

STARTER MOTOR

STARTER ASSEMBLY - engine, Includes Ref: 1 - 34

1шт.

1

K965127

BUSHING

ARMATURE - starter

1шт.

2

K965128

BRACKET

- intermediate

1шт.

3

BHBK965129

BUSHING

- intermediate bracket

2шт.

4

K965130

GEAR

PINION ASSEMBLY - engaging

1шт.

5

K965131

BUSHING

- pinion

1шт.

6

K965132

BRACKET

HOUSING - drive end

1шт.

7

K965133

BUSHING

- drive housing

1шт.

8

K965134

LEVER

- pinion engaging

1шт.

9

K965135

SCREW

BOLT - lever pivot

1шт.

10

K965136

SPRING WASHER

- pivot bolt

1шт.

11

K965137

NUT

- pivot bolt

1шт.

12

K965138

BOLT

BOLT - through, starter

2шт.

14

K965141

COIL

ASSEMBLY - field

1шт.

15

K965142

SCREW

- retaining, field coil

4шт.

16

K965143

SPRING

- tension brush

4шт.

17

K965156

COMMUTATOR BRUSH

BRUSH SET - armature

1шт.

18

K965157

BRUSH, COMMUTATOR

CARRIER - brush

1шт.

19

NSS

NOT SOLD SEPARAT

HOUSING - coil and armature

1шт.

20

K965144

BRACKET

HOUSING - commutator end

1шт.

21

K965145

BUSHING

- commutator housing

1шт.

22

K965147

WASHER

- through bolt

2шт.

23

Z2035

NUT

- through bolt

2шт.

24

K965158

WASHER

KIT - armature

1шт.

25

K965149

COVER

- end, commutator

1шт.

26

K965146

SCREW

- end cover

2шт.

27

K965139

SOLENOID

ASSEMBLY - starter

1шт.

28

K965140

SCREW,M5 x 45mm

- mounting, solenoid

3шт.

29

K965153

WASHER

- terminal

2шт.

30

K965154

NUT

- termianal

1шт.

31

K965155

TERMINAL CONNECTOR

BLADE - terminal

1шт.

32

K965150

WASHER

- tab, blade terminal

1шт.

33

K965151

SCREW

- blade terminal

1шт.

34

K965152

NUT

- battery terminal

1шт.
