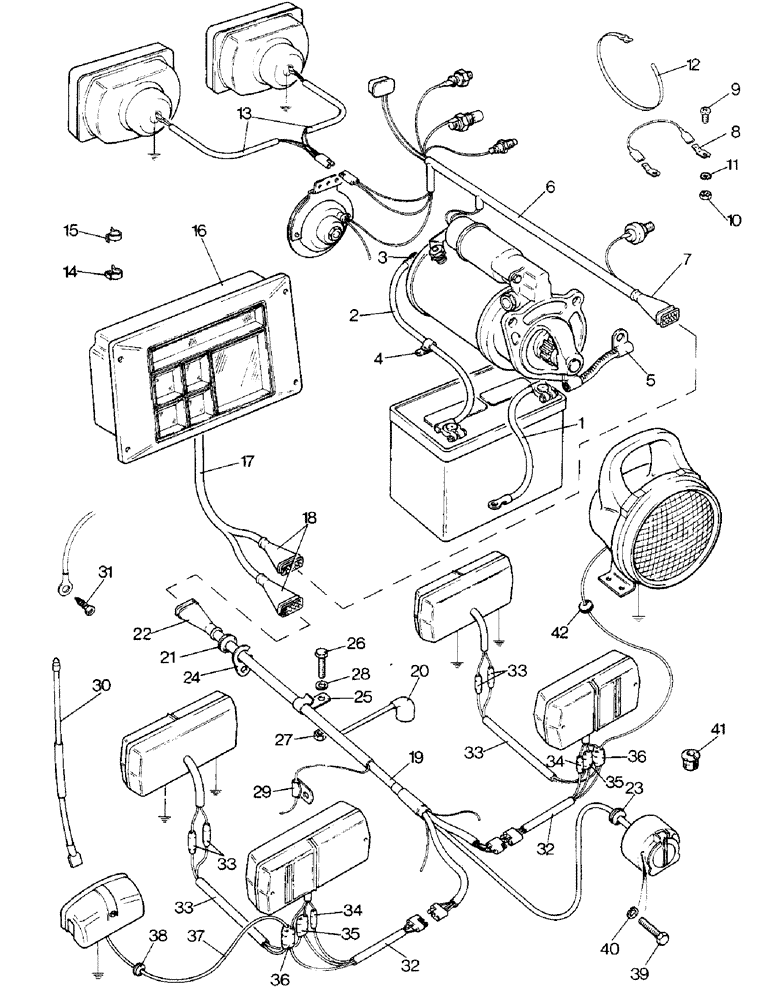

Запчасти Case IH 1390 (S-10) - ELECTRICAL WIRING (06) - ELECTRICAL SYSTEMS

1

K917372

CABLE

-, Serial Range: battery-ground

1шт.

2

K949996

CABLE

-, Serial Range: battery-starter

1шт.

3

K87560

CONTACT HOUSING

COVER - starter terminal

1шт.

4

K15518

CLAMP

CLIP - cable to engine, Serial Range: starter-ground

1шт.

5

K947336

CABLE

-, Serial Range: starter-ground

1шт.

6

K302413

HARNESS

ASSEMBLY - engine auxiliaries

1шт.

1290 - P.I.N. 11055261 and after. 1390 - P.I.N. 11129506 and after

1шт.

6

K956790

HARNESS

ASSEMBLY - engine auxiliaries , Includes Ref: 7

1шт.

1290 - prior to P.I.N. 11055261. 1390 - prior to P.I.N. 1129506

1шт.

7

K951339

GUARD

COVER - harness connector

1шт.

8

K925268

BLADE

- connector, 25 ampere

1шт.

9

86625206

SCREW,Phillips Drive, Pan HD, #10 - 32 x 1/2"

- No. 10 x 1/2 inch

1шт.

10

K617080

NUT

- No. 10

1шт.

11

K11519

WASHER

- lock, 3/16 inch

1шт.

12

K19928

CLIP

- wire

3шт.

13

K304927

HARNESS

- headlamps

1шт.

13

K300749

HARNESS

- sealed beam headlamps

1шт.

13

K300750

HARNESS

- outboard headlamps

1шт.

14

K625018

CLIP

- harness

2шт.

15

K625019

CLIP

- harness

2шт.

16

K300269

CLUSTER

- instrument, 1290 tractor

1шт.

16

K300268

CLUSTER

- instrument, 1390 tractor

1шт.

17

K300728

HARNESS

ASSEMBLY - instrument panel, Includes Ref: 18

1шт.

18

K951338

BELLOWS

COVER - harness connector

2шт.

19

K300729

HARNESS

ASSEMBLY - side and rear lamps, Includes Ref: 20 - 23

1шт.

20

K943744

COVER

- stop lamp switch

1шт.

21

K653160

GROMMET

- harness

1шт.

22

K951339

GUARD

COVER - harness connector

1шт.

23

K19930

GROMMET,3/8" ID x 5/8" Groove Dia

- harness

1шт.

24

K300694

BRACKET

- wiring harness, gearbox cover bolt

1шт.

25

K621741

CLIP

- harness

2шт.

26

K652475

SCREW

- M5 x 16 MM

2шт.

27

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

2шт.

28

K651847

WASHER, LOCK

WASHER - lock, 6 MM

2шт.

29

K621665

CLIP

- switch lead to PTO case, 1290 tractor

2шт.

30

K952506

DIODE

LEAD - with diode, 1290 tractor

1шт.

31

K624532

SCREW

- self-tapping

1шт.

32

K300854

HARNESS

- rear lamps

2шт.

33

K300730

HARNESS

- front and rear lamps

2шт.

34

K67916

ELEC CONNECTOR

CONNECTOR - single

6шт.

35

K86230

CONNECTOR, ELEC

CONNECTOR - double

3шт.

36

K908905

CONNECTOR, ELEC

CONNECTOR - three-way

1шт.

37

K301332

PLATE

LEAD - number plate lamp (Not North America)

1шт.

38

K627705

GROMMET

- 1/2 inch, number plate lamp lead

1шт.

39

K652466

SCREW

- M5 x 25 MM

3шт.

40

K651846

WASHER, LOCK

WASHER - lock, 5 MM

3шт.

41

K627716

GROMMET

- special, 13/16 inch

2шт.

42

K627705

GROMMET

- 1/2 inch, floodlamp lead

1шт.
