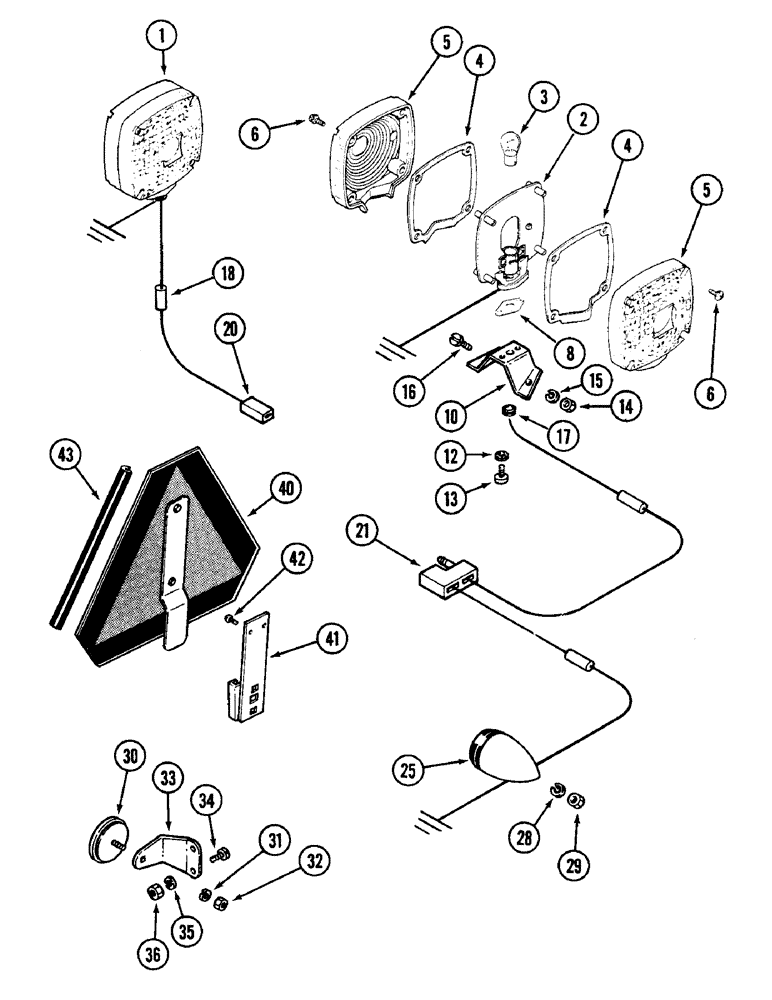

Запчасти Case IH 1390 (S-09) - LAMPS, WIRING AND REFLECTORS, LOW PROFILE SPECIAL (06) - ELECTRICAL SYSTEMS

1

A44201

LIGHT ASSY.

LAMP ASSEMBLY - flasher, left and right rear fender, Includes Ref: 2 - 8

2шт.

2

NSS

NOT SOLD SEPARAT

BODY - lamp (Order A44201)

1шт.

3

A41264

BULB,#1156, 12V

Lamp #1156, 12V

1шт.

4

A43731

GASKET

- sealing, lens

2шт.

A44202

KIT

- lens, replacement, Includes Ref: 5 and 6

1шт.

5

NSS

NOT SOLD SEPARAT

LENS - lamp (Order A44202)

2шт.

6

187-1083

SELF-TAP SCREW,Cross Pan Hd, #8 x 5/8"

SCREW - round head slotted Phillips, No. 8-32 x 3/4 inch

8шт.

8

F63435

GASKET

- lamp base

1шт.

10

A165869

BRACKET

- mounting, flasher lamp

2шт.

12

193-57

LOCK WASHER,Ext Tooth, 1/4"

WASHER, LOCK, Ext Tooth, 1/4"

4шт.

13

182-547

SCREW,Cross Pan Hd, 1/4"-20 x 1/2"

- pan head Phillips, 1/4 NC x 1/2 inch

4шт.

14

129-17

NUT,Hex, #10 - 24

NUT - No. 10 hex

4шт.

15

192-107

LOCK WASHER,#10

WASHER - lock, No. 10

4шт.

16

182-125

SCREW,Sl Pan Hd, #10 - 24 x 1/2"

- pan head slotted machine, No. 10 NC x 1/2 inch

4шт.

17

A141389

GROMMET

- wire

4шт.

18

A30366

CABLE

CONNECTOR - wire (Female)

2шт.

20

A165855

HARNESS

ASSEMBLY - flasher, right

1шт.

21

A165854

HARNESS

ASSEMBLY - flasher, left and tail lamp

1шт.

25

K921235

LAMP

ASSEMBLY - tail

1шт.

K924018

BULB

- lamp (12/14 volt 6 watt)

1шт.

K960888

LENS

- lamp (Red)

1шт.

28

192-109

LOCK WASHER,1/4"

WASHER - lock, 1/4 inch

2шт.

29

129-121

NUT,1/4"-28, G5

2шт.

30

K964716

REFLECTOR

ASSEMBLY - rear (Red), Includes Ref: 31 and 32

2шт.

31

K626340

RING

WASHER - lock

1шт.

32

K11109

NUT

- 2BA

1шт.

33

K943024

BRACKET

- mounting, reflector

2шт.

34

182-125

SCREW,Sl Pan Hd, #10 - 24 x 1/2"

- pan head slotted machine, No. 10 NC x 1/2 inch

4шт.

35

192-107

LOCK WASHER,#10

WASHER - lock, No. 10

4шт.

36

129-17

NUT,Hex, #10 - 24

NUT - No. 10 NC hex

4шт.

40

A59450

WARNING SIGN

EMBLEM - SMV

1шт.

41

A162667

BRACKET

- mounting SMV

1шт.

42

187-1068

SELF-TAP SCREW,Hex Hd, 5/16" x 1/2"

SCREW - self-tapping, 5/16 x 1/2 inch

2шт.

43

A165860

TRIM

- emblem

1шт.
