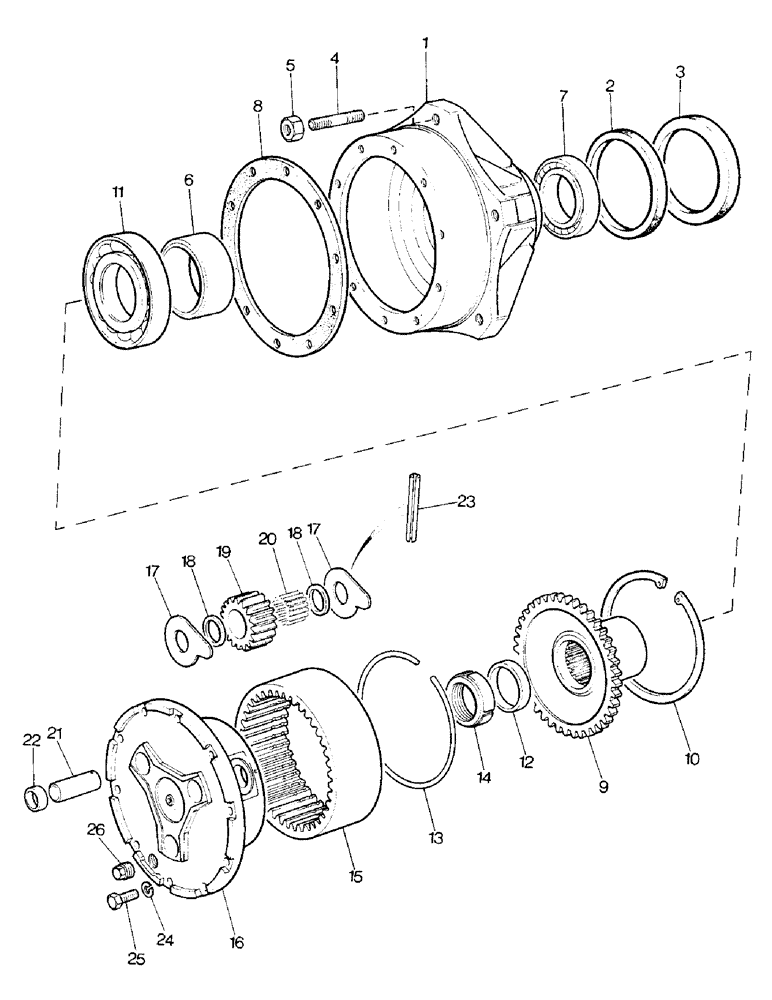

Запчасти Case IH 1390 (G-11) - FRONT HUBS AND REDUCTIONS, MFD CARRARO AXLE (04) - FRONT AXLE

1

K965278

WHEEL

HUB - reduction (Carraro 102405/1)

2шт.

2

K965323

GASKET

- felt (Carraro 102148)

2шт.

3

K965324

SEAL,140mm ID x 170mm OD x 15mm Thk

- bearing (Carraro 25346)

2шт.

4

K260765

STUD,M14 x 1.5 x 62mm, Cl 10.9

- wheel (Carraro 106198)

12шт.

5

K965326

WHEEL NUT

- hub stud (Carraro 104782)

12шт.

6

K965320

SPACER

- bearing (Carraro 88641)

1шт.

7

K965321

BALL BEARING

BEARING - inner (Carraro 25745)

2шт.

8

K965304

GASKET

- hub (Carraro 88643)

2шт.

9

K965317

CARRIER

GEAR - support

2шт.

10

K965318

RING, SNAP

RING - snap (Carraro 24950)

2шт.

11

K965319

BEARING ASSY

BEARING - outer (Carraro 25817)

2шт.

12

K965316

BUSHING

SPACER - bearing (Carraro 88673)

2шт.

13

K965306

SNAP RING

RING - snap (Carraro 88678)

2шт.

14

K965315

RING NUT

- lock, gear (Carraro 23319)

2шт.

15

K965314

GEAR

- internal (Carraro 88671)

2шт.

16

K260764

COVER

- hub (Carraro 110821)

2шт.

17

K965310

BEARING WASHER

RETAINER - bearing (Carraro 104479)

12шт.

18

K965311

WASHER

- gear (Carraro 100150)

12шт.

19

K965308

GEAR

- planet (Carraro 100005)

6шт.

20

K965309

NEEDLE

BEARING - needle (Carraro 100148)

6шт.

21

K965307

AXLE PIN

SHAFT - gear (Carraro 100003)

6шт.

22

K965301

HOLE PLUG BUTTON

PLUG - shaft (Carraro 100002)

6шт.

23

K965305

SPLIT PIN/SAFETY PIN

PIN - roll (Carraro 24368)

6шт.

24

K965303

LOCK WASHER,M10

WASHER - lock, 12 MM (Carraro 22859)

20шт.

25

K965302

SCREW

BOLT - M12 x 35 (Carraro 20852)

20шт.

26

K965263

PLUG

- level (Carraro 92269)

2шт.

K261817

OIL SEAL

- special oil (Service only) (Not shown)

1шт.

K261816

WEAR RING

SLEEVE - wear (Service only) (Not shown)

1шт.
