(G-10) - AXLE HALF SHAFTS, MFD CARRARO AXLE

Запчасти Case IH 1390 (G-10) - AXLE HALF SHAFTS, MFD CARRARO AXLE (04) - FRONT AXLE

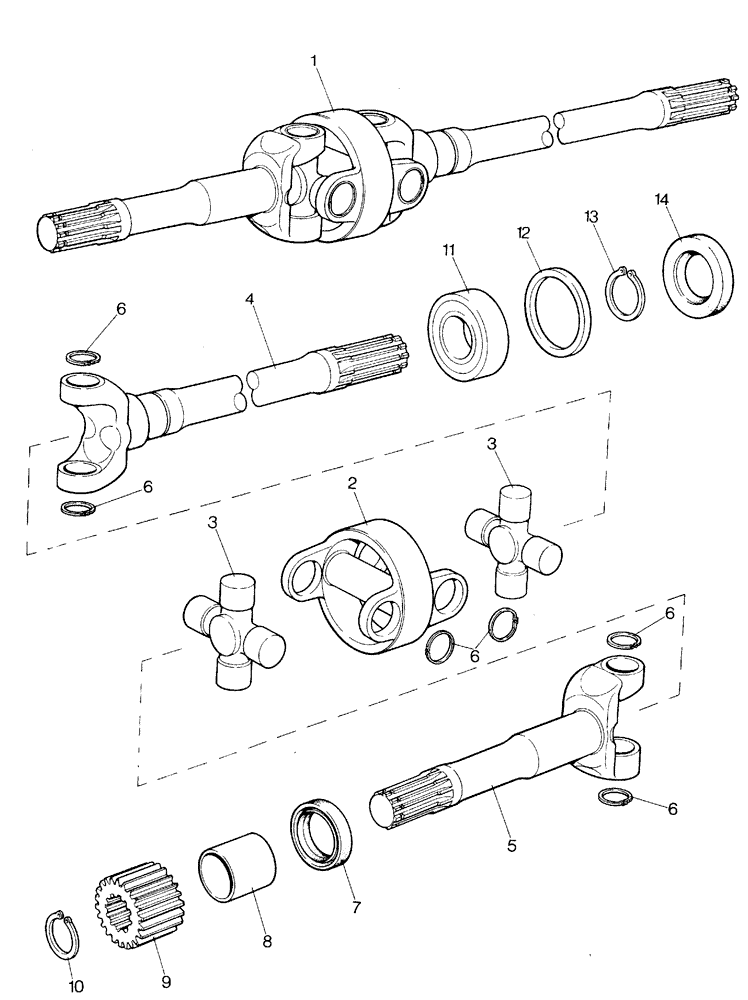

Схема запчастей Case IH 1390 - (G-10) - AXLE HALF SHAFTS, MFD CARRARO AXLE (04) - FRONT AXLE
10
6
6
4
14
8
6
2
11
6
3
6
7
1
13
5
3
12
9
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

K965328

SHAFT

HALF-SHAFT ASSEMBLY - axle (Carraro 102176), Includes Ref: 2 - 6

2шт.

2

K965332

HOUSING

- joint (Carraro 96868)

1шт.

3

K965331

SPIDER

UNIVERSAL JOINT - axle shaft (Carraro 96867)

2шт.

4

K965329

DRIVE

HALF-SHAFT - long (Carraro 102406)

1шт.

5

K965330

SHAFT

HALF-SHAFT - short (Carraro 96869)

1шт.

6

K965336

RING, SNAP

RING - snap (Carraro 40181)

8шт.

7

K965325

SEAL

- oil (Carraro 25187)

4шт.

8

K965322

BUSHING

- shaft (Carraro 88674)

2шт.

9

K965312

GEAR

- drive (Carraro 88558)

2шт.

10

K965313

RING, SNAP

RING - snap, 35 MM, external (Carraro 24790)

2шт.

11

K965333

BALL BEARING,40mm ID x 80mm OD x 23mm W

BEARING - shaft (Carraro 26024)

2шт.

12

K965337

SEAL

- bearing (Carraro 95951)

2шт.

13

K965334

SNAP RING,M40, Ext

(Carraro 24795) M40, Ext

2шт.

14

K965335

OIL SEAL,40mm ID x 72mm OD x 10mm Thk

- oil (Carraro 25193) Oil

2шт.
