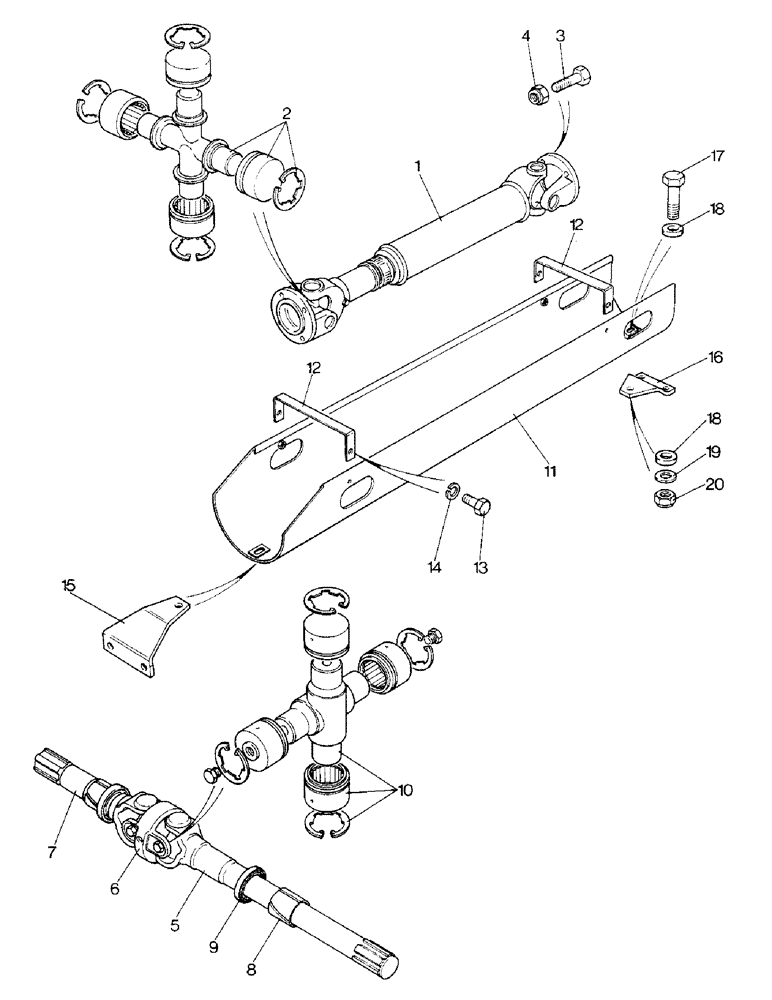

Запчасти Case IH 1390 (G-06) - FRONT AXLE DRIVE SHAFTS, MFD DAVID BROWN AXLE (04) - FRONT AXLE

1

K955222

SHAFT

ASSEMBLY - drive, Includes Ref: 2

1шт.

2

K956438

JOURNAL

REPAIR KIT - universal joint

2шт.

3

K600529

BOLT

- special, 3/8 UNC x 1-1/8 inch

8шт.

4

K607327

NUT

- self-locking, 3/8 inch UNC

8шт.

K955369

SHAFT ASSY.

SHAFT ASSEMBLY - half, Includes Ref: 5 - 7

2шт.

5

K955372

SHAFT

- drive, long

1шт.

6

K955371

JOINT

HOUSING - center

1шт.

7

K955370

DRIVE SHAFT

SHAFT - drive, short

1шт.

8

K621367

BUSHING

- half shaft

4шт.

9

K623481

SEAL

- oil, half shaft

4шт.

10

K965215

U-JOINT SPIDER

REPAIR KIT - universal joints, Includes Ref: 11 - 20

4шт.

UK5245

GUARD

ATTACHMENT - front drive shaft

1шт.

11

K204233

GUARD

- drive shaft

1шт.

12

K945583

BRACE

STAY - guard

2шт.

13

K650641

SCREW

BOLT - M8 x 16 MM

4шт.

14

K651848

WASHER

- lock, 8 MM

4шт.

15

K204913

BRACKET

- support, front

1шт.

16

K205099

BRACKET

- support, rear

1шт.

17

K600475

BOLT

- 3/8 UNC x 1-1/2 inch

2шт.

18

K945576

WASHER

- 3/8 inch, rubber

4шт.

19

K691987

WASHER,10.5mm ID x 30mm OD x 3.0mm Thk

- 3/8 inch, special

2шт.

20

K607377

LOCK NUT

- self-locking, 3/8 inch UNC

2шт.
