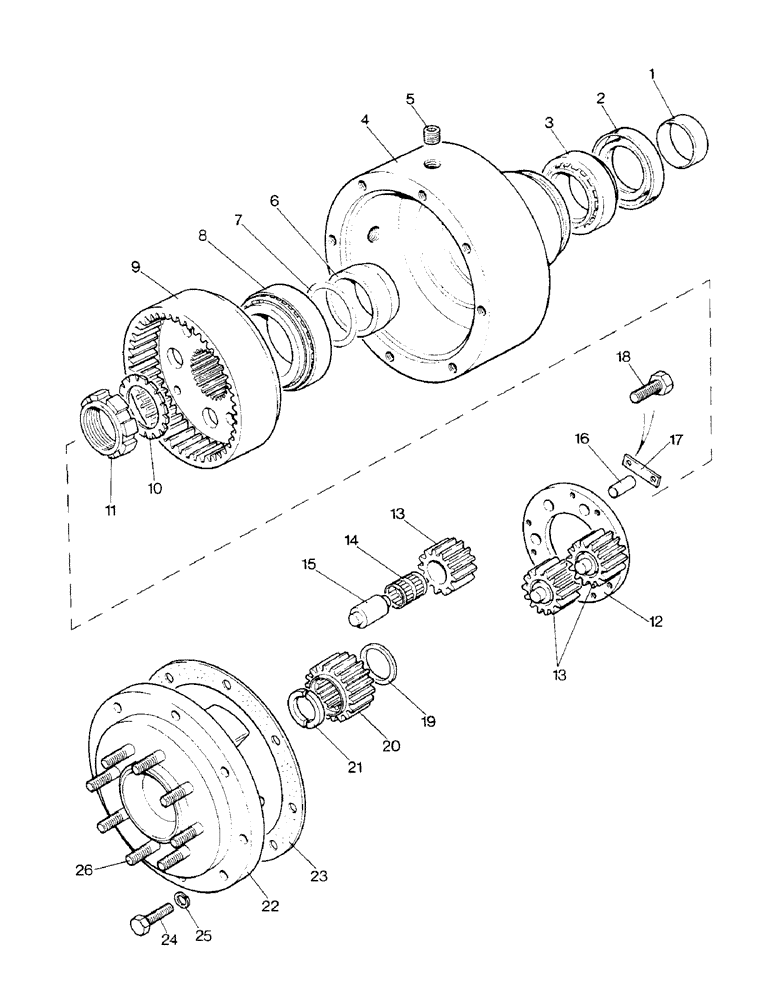

Запчасти Case IH 1390 (G-05) - FRONT HUBS AND REDUCTION GEARS, MFD DAVID BROWN AXLE (04) - FRONT AXLE

1

K955500

SLEEVE

- bearing

2шт.

2

K623475

OIL SEAL,88.9mm ID x 114.3mm OD x 12.7mm Thk

- oil

2шт.

3

K19185

TAPERED BEARING

BEARING - roller, taper

2шт.

4

K953837

HOUSING

- reduction

2шт.

5

K14596

PLUG

- case

4шт.

6

K951367

BUSHING

SPACER - bearing

2шт.

7

K626253

SHIM,.030" Thk

1шт.

7

K626252

SHIM,.015" Thk

1шт.

7

K626251

SHIM,.005" Thk

1шт.

7

K626250

SHIM,.002" Thk

1шт.

8

K620121

BEARING

- roller, taper

2шт.

9

K954838

GEAR

- planetary unit

2шт.

10

K85355

LOCK WASHER

WASHER - tab, stub axle nut

2шт.

11

K85359

LOCK NUT

- lock, gear to stub axle

2шт.

12

K951366

CARRIER

- planet gear

2шт.

13

K951362

GEAR

- planet, 13 teeth

6шт.

14

K620152

NEEDLE BEARING CAGE

BEARING - roller, needle

12шт.

15

K951361

PIN

- bearing

6шт.

16

K621808

PIN

DOWEL - 5/8 x 1-1/4 inch

6шт.

17

K626434

WASHER

- tab, carrier bolt

6шт.

18

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

12шт.

19

K627430

WASHER

- thrust

2шт.

20

K951363

GEAR

- sun, 16 teeth

2шт.

21

K951365

RING

SPLIT RING - half

4шт.

22

K953736

PLATE

- end

2шт.

23

K200223

GASKET

- plate

2шт.

24

K603110

SCREW

BOLT - 1/2 UNC x 1-3/4 inch

16шт.

25

K626345

LOCK WASHER

WASHER - lock, 1/2 inch

16шт.

26

K608612

STUD

- 5/8 UNC x 1-3/8 inch, front wheels

16шт.
