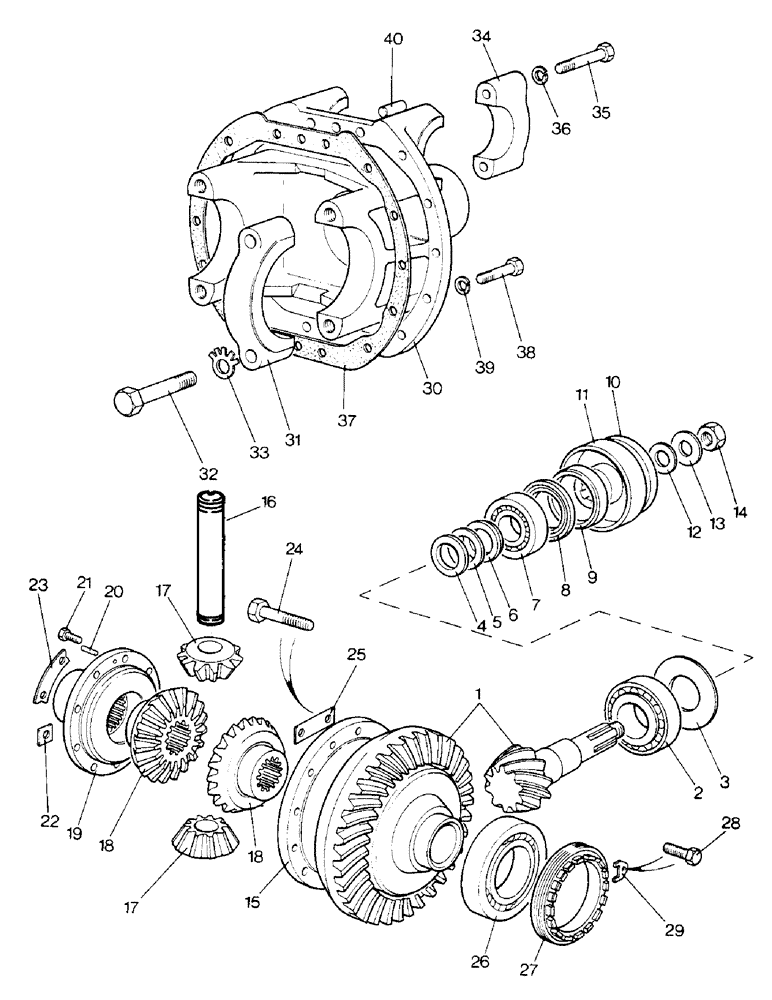

Запчасти Case IH 1390 (G-04) - FRONT DIFFERENTIAL, MFD DAVID BROWN AXLE (04) - FRONT AXLE

1

K964777

GEAR-SET

WHEEL AND PINION SHAFT - bevel

1шт.

2

K620131

ROLLER

BEARING - roller, taper

1шт.

3

K942875

SHIM

- 0.030 inch

1шт.

3

K942874

SHIM

- 0.010 inch

1шт.

3

K942873

SHIM

- 0.003 inch

1шт.

3

K942872

SHIM

- 0.002 inch

1шт.

4

K940969

BUSHING

SPACER - front

1шт.

5

K917848

SHIM

- 0.030 inch

1шт.

5

K917847

SHIM

- 0.010 inch

1шт.

5

K917846

SHIM

- 0.005 inch

1шт.

5

K917845

SHIM,35.32mm ID x 50.8mm OD x 0.05mm Thk

- 0.002 inch

1шт.

6

K917844

BUSHING

SPACER - rear

1шт.

7

K620061

BEARING, ROLLER

BEARING - roller, taper

1шт.

8

K623484

OIL SEAL

- oil

1шт.

9

K627270

COLLAR

SPACER - seal

1шт.

K200605

FLANGE

AND GUARD ASSEMBLY - bearing, Includes Ref: 10 and 11

1шт.

10

NSS

NOT SOLD SEPARAT

FLANGE - bearing

1шт.

11

K200603

GUARD

- propeller shaft

1шт.

12

K626459

SEALING WASHER

WASHER - sealing

1шт.

13

K626758

WASHER

- retaining

1шт.

14

K617307

LOCK NUT

- lock, 3/4 inch UNF

1шт.

15

K942316

DIFFERENTIAL

CAGE - differential

1шт.

16

K951551

PIN

- differential (Replaces K951273)

1шт.

17

K261657

GEAR

- pinion, 10 teeth (Replaces K942317)

2шт.

18

K30234

CONE PINION

GEAR - bevel, 16 teeth

2шт.

19

K903184

FLANGE

PLATE - end

1шт.

20

K621801

PIN

DOWEL - 3/8 x 1-1/8 inch

3шт.

21

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

9шт.

22

K626372

WASHER

- tab, single

3шт.

23

K903185

WASHER

- tab, double

3шт.

24

K603005

SCREW

BOLT - 7/16 UNC x 1-1/4 inch

12шт.

25

K30236

WASHER

- tab, double

6шт.

26

K19010

BALL BEARING

BEARING - ball, differential

2шт.

27

K15007

RING, LOCKING

NUT - adjuster

2шт.

28

K602840

SCREW

BOLT - 5/16 UNC x 1/2 inch

2шт.

29

K626420

WASHER

- tab, adjuster nut, Includes Ref: 30 - 36

2шт.

K955082

SUPPORT

BRACKET ASSEMBLY - differential

1шт.

30

NSS

NOT SOLD SEPARAT

BRACKET - support (Order K955082)

1шт.

31

NSS

NOT SOLD SEPARAT

CAP - bearing

2шт.

32

K601242

BOLT

- 5/8 UNC x 3-3/4 inch

4шт.

33

K626389

BEARING WASHER

WASHER - tab, cap bolt

4шт.

34

K955084

CAP

- steering ram cylinder

2шт.

35

K600703

BOLT

- 7/16 UNC x 2-3/4 inch

4шт.

36

K626344

WASHER, LOCK

WASHER - lock, 7/16 inch

4шт.

37

K951258

GASKET

- bracket to axle case

1шт.

38

K600602

BOLT,Hex, 7/16" - 14 x 1 1/2", Gr 5

- 7/16 UNC x 1-1/2 inch

14шт.

39

K626344

WASHER, LOCK

WASHER - lock, 7/16 inch

14шт.

40

K30134

PIN

DOWEL - 1/2 x 1-5/16 inch

2шт.
