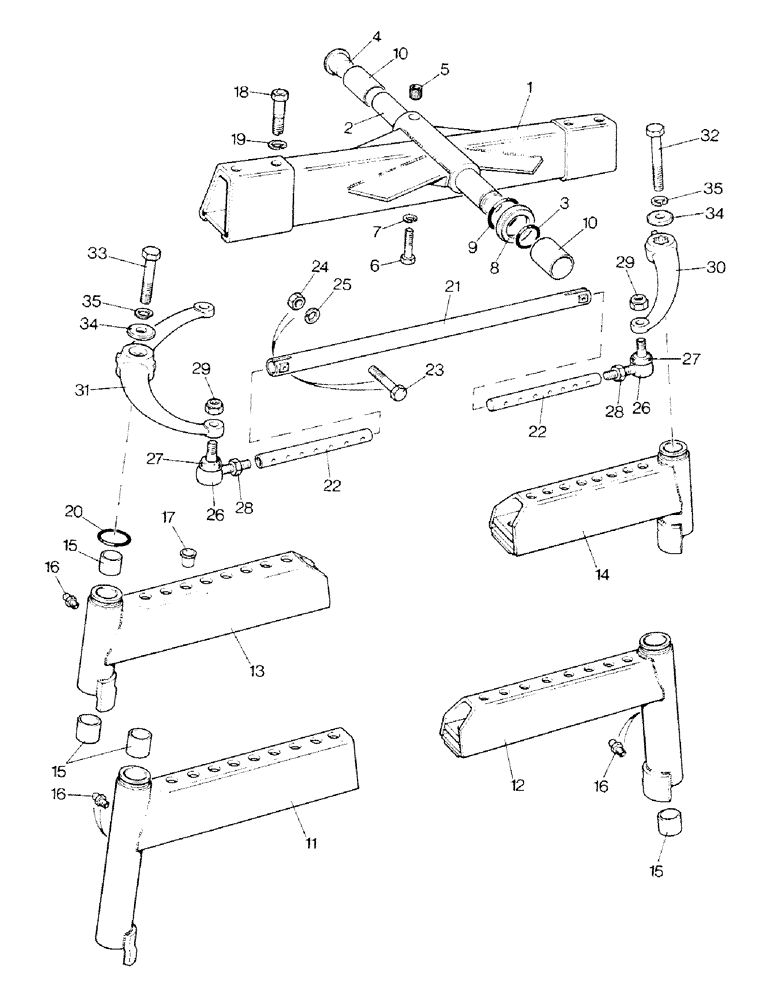

Запчасти Case IH 1390 (G-02) - FRONT AXLE BEAM, TWO WHEEL DRIVE TRACTOR (04) - FRONT AXLE

1

K205740

BEAM

CENTER BEAM - 56 to 80 inch track

1шт.

1290-P.I.N. 11053164 and after. 1390-P.I.N. 11125503 and after

1шт.

1

K956532

BEAM

CENTER BEAM - 56 to 80 inch track

1шт.

1290- prior to P.I.N. 11053164. 1390-prior to P.I.N. 11125503

1шт.

1

K955249

BEAM

CENTER BEAM - 52 to 72 inch track (Also low profile special)

1шт.

2

K200774

AXLE PIN

PIN - trunnion

1шт.

3

K15596

RING,3.63mm Thk x 31.34mm ID

O-RING - 1-1/4 inch ID

1шт.

4

K628084

PLUG

- 5/8 inch, plastic

1шт.

5

K913092

NUT

BUSHING - threaded, 3/8 UNC

1шт.

6

K600505

BOLT

- 3/8 UNC x 2-3/4 inch

1шт.

7

K19482

SPRING WASHER

WASHER - lock, 3/8 inch

1шт.

8

K947188

FRICTION WASHER

WASHER - thrust

2шт.

9

K24764

O-RING

- 2-5/8 inch ID

2шт.

10

K15597

BUSHING

- main frame

4шт.

11

K965874

EXTENSION

BEAM EXTENSION - left-hand (Standard clearance)

1шт.

11

K961723

EXTENSION

BEAM EXTENSION - left-hand (High clearance)

1шт.

Items number 11,12 & 13. If trying to determine which beam assy to use there is hand writen notes in the hard copy catolog on page G1/2.

1шт.

12

K965873

EXTENSION

BEAM EXTENSION - right-hand (Standard clearance)

1шт.

12

K961724

EXTENSION

BEAM EXTENSION - right-hand (High clearance)

1шт.

Items number 11,12 & 13. If trying to determine which beam assy to use there is hand writen notes in the hard copy catolog on page G1/2.

1шт.

13

K965872

BEAM

EXTENSION - left-hand (Low profile special)

1шт.

Items number 11,12 & 13. If trying to determine which beam assy to use there is hand writen notes in the hard copy catolog on page G1/2.

1шт.

14

K965871

BEAM

EXTENSION - right-hand (Low profile special), Includes Ref: 15

1шт.

15

K11598

BUSHING

- beam extension

2шт.

16

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , ANF 1/4"-28 NPT x .54" lg

2шт.

17

K628086

PLUG,Cap, .848" OD

- plastic, 25/32 inch diameter

12шт.

18

K601471

BOLT

- 3/4 UNC x 3-1/8 inch, special

4шт.

19

K626348

BELLEVILLE SPRING

WASHER - lock, 3/4 inch

4шт.

20

K15594

O-RING,0.139" Thk x 1.984" ID, -226, Cl 5, 75 Duro

- 2 inch ID

4шт.

21

K200374

BUSHING

TUBE - spacer, 27-3/4 inch, 52 to 72 inch track

1шт.

21

K926288

TUBE

- spacer, 35-3/4 inch, 56 to 80 inch track

1шт.

22

K912709

ROD

- track, 16 inch, 52 to 72 inch track

2шт.

22

K200339

ROD

- track, 17 inch, 56 to 80 inch track

2шт.

23

K600316

BOLT

- 5/16 UNC x 2-1/4 inch

2шт.

24

9635082

NUT,5/16" - 18, Gr 5

- 5/16 inch UNC

2шт.

25

K19481

SPRING WASHER

WASHER - lock, 5/16 inch

2шт.

26

K908071

BALL JOINT

SOCKET ASSEMBLY - ball, Includes Ref: 27 - 29

2шт.

27

K962155

CAP

SEAL - dirt

1шт.

28

K622500

LOCK NUT

- lock, 3/4 inch, special

1шт.

29

231-2448

LOCK NUT,1/2"-20, GB

NUT - self-locking, 1/2 inch UNF

1шт.

30

K942525

LEVER

- steering, right-hand (Standard clearance)

1шт.

30

K912085

LEVER

- steering, right-hand (High clearance)

1шт.

31

K200597

LEVER

- steering, left-hand (Standard clearance)

1шт.

31

K913924

LEVER

- steering, left-hand (High clearance)

1шт.

32

K601362

BOLT

- 5/8 UNC x 2-3/4 inch

1шт.

33

K601336

BOLT

- 5/8 UNC x 3-1/4 inch

1шт.

34

K15595

WASHER

- 5/8 inch, special

2шт.

35

K19485

WASHER

- lock, 5/8 inch

2шт.
