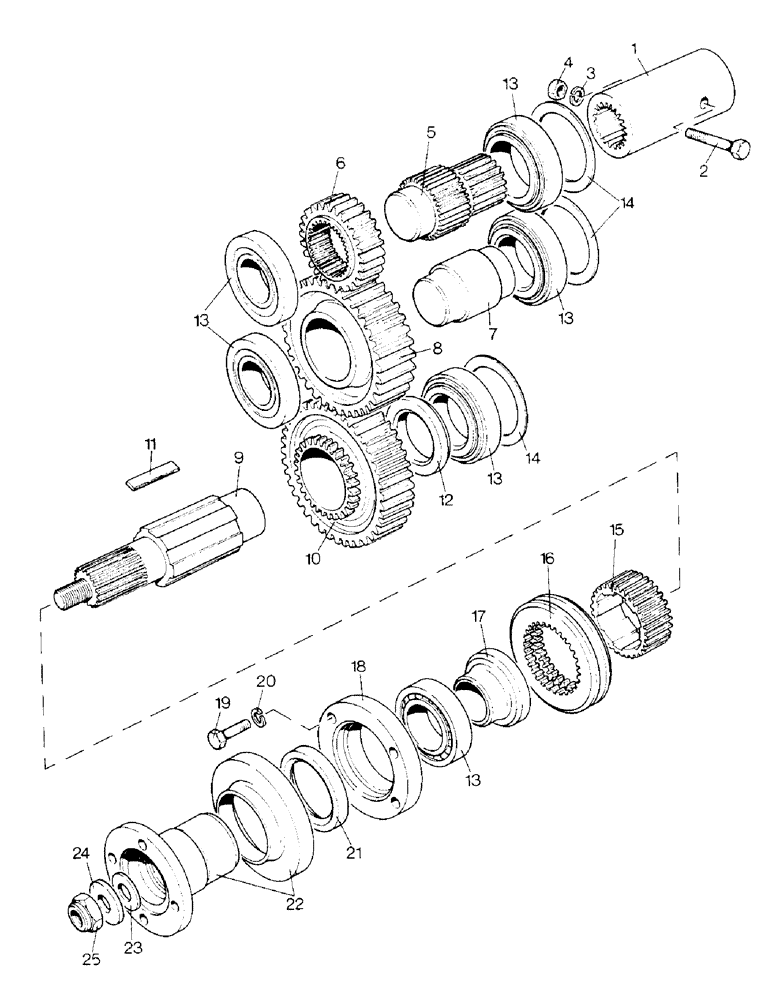

Запчасти Case IH 1390 (D-10) - TRANSFER GEARBOX, GEARS AND SHAFTS, MFD DAVID BROWN AXLE (03) - POWER TRAIN

K956093

PRODUCT GRAPHIC

GEARBOX ASSEMBLY - transfer, includes parts in Fig. D9-1, Includes Ref: 1 - 25

1шт.

1

K956103

COUPLING, BREAK AWAY

COUPLING - transfer gearbox to main gearbox

1шт.

2

K600322

BOLT

- 5/16 UNC x 2-1/2 inch

1шт.

3

K19481

SPRING WASHER

WASHER - lock, 5/16 inch

1шт.

4

9635082

NUT,5/16" - 18, Gr 5

- 5/16 inch UNC

1шт.

5

K951004

SHAFT

- input

1шт.

6

K951005

GEAR

- input

1шт.

7

K951007

SHAFT

- idler

1шт.

8

K951006

GEAR

- idler

1шт.

9

K956085

SHAFT

- output

1шт.

10

K956084

GEAR

- output

1шт.

11

K940989

PLATE

BEARING PAD - output gear

6шт.

12

K951010

BUSHING

SPACER - gear

1шт.

13

K620194

BEARING

- roller, taper (Order 1-G15218 and 1-G15219)

6шт.

14

K950878

SHIM

- 0.030 inch

1шт.

14

K950879

SHIM

- 0.010 inch

1шт.

14

K950880

SHIM

- 0.003 inch

1шт.

14

K950881

SHIM

- 0.002 inch

1шт.

15

K955836

GEAR

- fixed, clutch

1шт.

16

K943644

SYNCHRO RING

GEAR - sliding, clutch

1шт.

17

K951011

BUSHING

- special

1шт.

18

K951012

HOUSING

- oil seal

1шт.

19

K602807

SCREW

BOLT - 5/16 UNC x 1-1/4 inch

4шт.

20

K19481

SPRING WASHER

WASHER - lock, 5/16 inch

4шт.

21

K623483

OIL SEAL

- oil, 70 x 50 x 10 MM

1шт.

22

K200605

FLANGE

AND GUARD ASSEMBLY - shaft

1шт.

23

K626459

SEALING WASHER

WASHER - sealing

1шт.

24

K626758

WASHER

- retaining

1шт.

25

K617307

LOCK NUT

- lock, 3/4 inch UNF

1шт.
