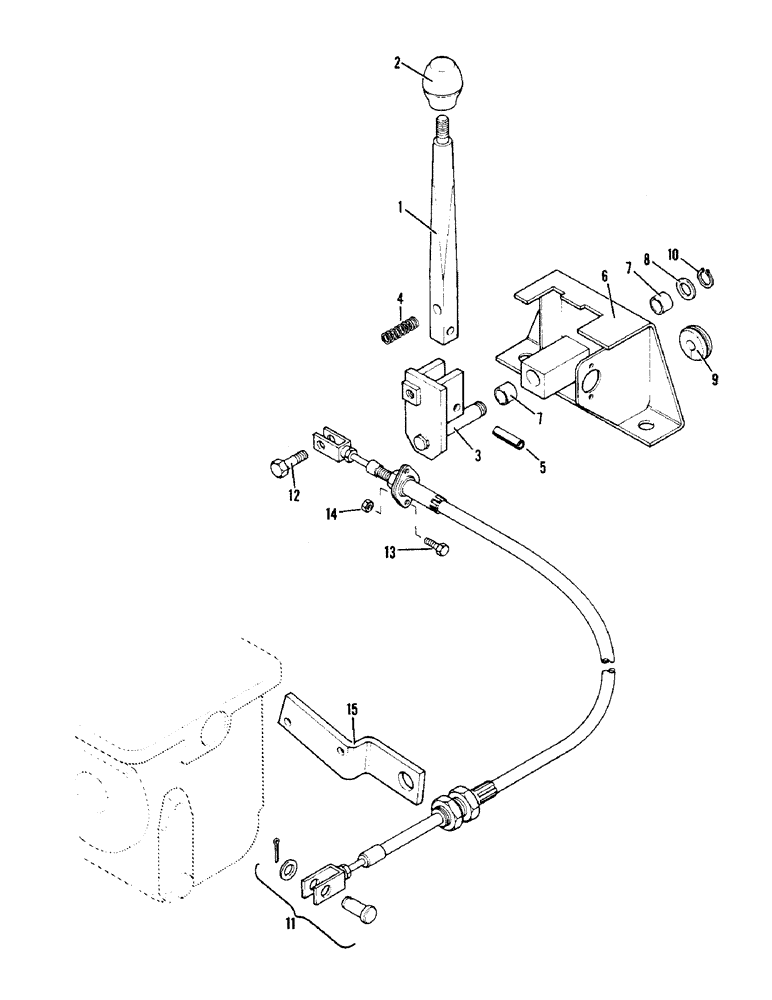

Запчасти Case IH 1390 (D-08) - MFD ENGAGEMENT LEVER, 1290 P.I.N. 11056136 AND AFTER, 1390 P.I.N. 11131075 AND AFTER (03) - POWER TRAIN

1

K207617

LEVER

- MFD selector

1шт.

2

K950493

KNOB

- selector lever

1шт.

3

K207612

SHAFT

SPINDLE - selector lever

1шт.

4

K13507

SPRING

- selector lever

1шт.

5

K623894

PIN

- roll, 5/16 x 1-1/4 inch

1шт.

6

K308035

BRACKET

- spindle

1шт.

7

K628759

BUSHING

- bracket

2шт.

8

K626668

WASHER

- spindle

1шт.

8

K627704

GROMMET

- bracket

1шт.

10

K11302

RING, SNAP

RING - snap, spindle

1шт.

11

K307987

CABLE

- inner and outer

1шт.

12

K610262

BOLT

- 5/16 inch UNF

1шт.

13

K613988

SCREW

- no. 10 UNF x 3/4 inch

2шт.

14

K617299

LOCK NUT

- self-locking, no. 10 UNF

2шт.

15

K261808

BRACKET

- cable support

1шт.
