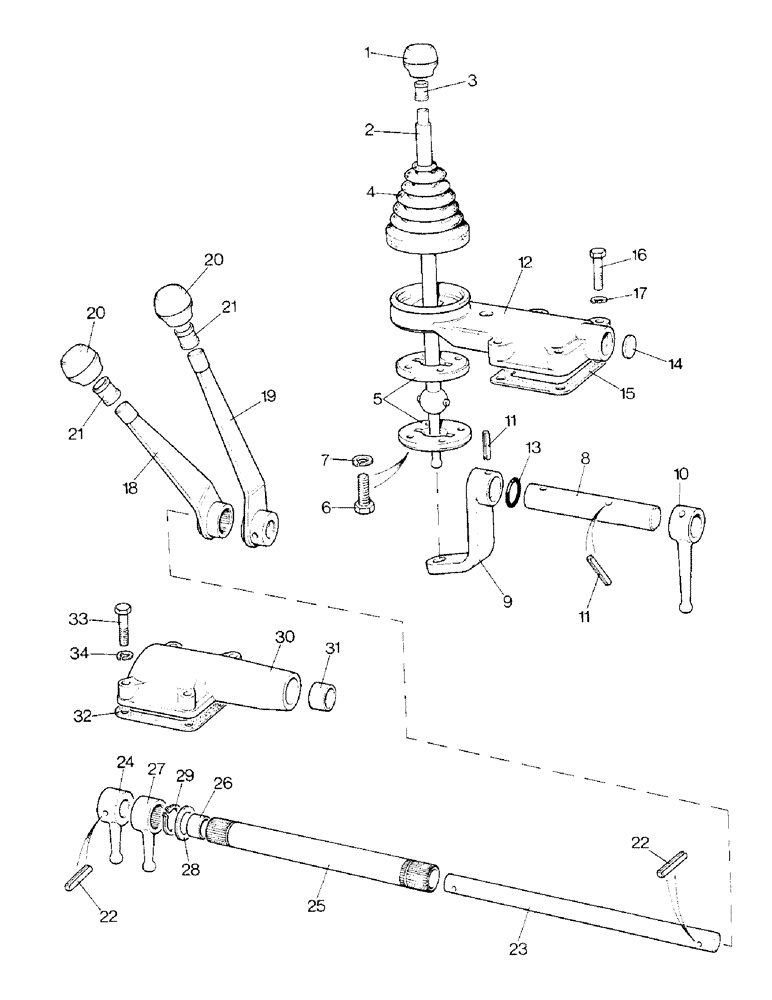

Запчасти Case IH 1390 (D-06) - GEAR SHIFT LEVERS (03) - POWER TRAIN

1

K200552

KNOB

- gear lever

1шт.

2

K206288

LEVER

- gear (Replaces K200372) (Lever is 3/4" Dia.)

1шт.

3

K628472

RING

- retaining, Serial Range: knob-lever

1шт.

4

K950494

RUBBER

COVER - gear lever

1шт.

5

K200162

SPACER

HOUSING - ball

2шт.

6

K602739

SCREW

BOLT - 1/4 UNC x 1-1/8 inch

4шт.

7

K626341

SPRING WASHER

WASHER - lock, 1/4 inch

4шт.

8

K200160

SHAFT

- selector

1шт.

9

K200161

LEVER

ARM - selector shaft

1шт.

10

K950215

SELECTOR

LEVER - selector

1шт.

11

K623775

GROOVED PIN,5/16" x 1 1/2", Type E, Hardened

Pin, Grooved, (Order K623778) 5/16" x 1 1/2", Type E, Hardened

2шт.

12

K200159

GEAR

HOUSING - selector shaft

1шт.

13

K623630

SEAL

- oil, 7/8 inch ID

1шт.

14

K623810

PLUG

- core, 1 inch diameter

1шт.

15

K950543

GASKET,0.2mm Thk

- housing

1шт.

16

K600365

BOLT

- 5/16 UNC x 1-1/2 inch

4шт.

17

K19481

SPRING WASHER

WASHER - lock, 5/16 inch

4шт.

18

K200203

LEVER

- hand, high-low

1шт.

19

K200200

LEVER

- hand, slow-normal

1шт.

20

K200239

BUTTON

KNOB - range lever

2шт.

21

K628472

RING

- retaining

2шт.

22

K623925

PIN

- 1/4 x 1-1/2 inch

2шт.

23

K200198

SHAFT

- selector, slow-normal

1шт.

24

K950005

SELECTOR

LEVER - selector, slow-normal

1шт.

25

K200199

SHAFT

TUBE - selector, high-low

1шт.

26

K621303

BUSHING

-, Serial Range: shaft-tube

2шт.

27

K950004

SELECTOR

LEVER - selector, high-low

1шт.

28

K950002

BUSHING

WASHER - 1 inch

1шт.

29

K11128

CIRCLIP

RING - snap, 1 inch, external

1шт.

30

K950000

HOUSING

- gear change

1шт.

31

K628750

BUSHING

- housing

1шт.

32

K950543

GASKET,0.2mm Thk

- housing

1шт.

33

K600365

BOLT

- 5/16 UNC x 1-1/2 inch

4шт.

34

K19481

SPRING WASHER

WASHER - lock, 5/16 inch

4шт.
