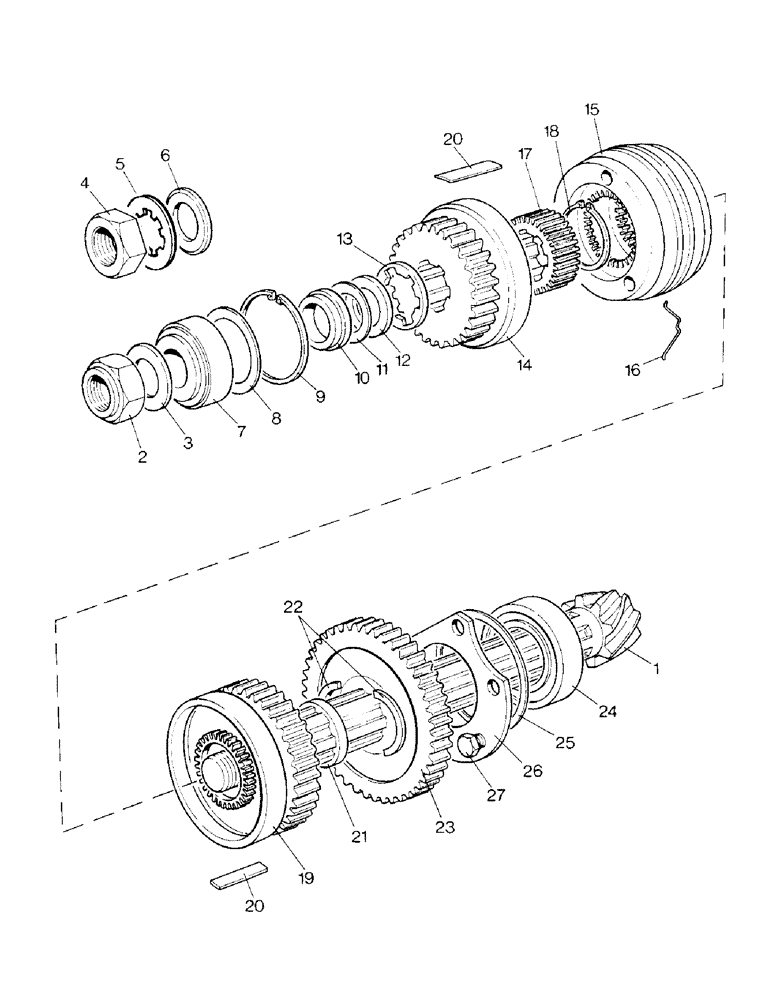

Запчасти Case IH 1390 (D-03) - BEVEL PINION SHAFT, TWO WHEEL DRIVE, MFD (03) - POWER TRAIN

1

K964879

GEAR-SET

PINION AND SPIRAL GEAR - bevel, 7:43 teeth (2WD)

1шт.

1

K965090

GEAR-SET

PINION AND SPIRAL GEAR - bevel, 7:43 teeth (MFD)

1шт.

2

K622803

NUT

- 1-1/8 inch BSF left-hand, Nyloc (2WD)

1шт.

3

K14687

WASHER

- 1-1/8 inch (2WD)

1шт.

4

K921817

NUT

- 1-3/8 inch, special (MFD)

1шт.

5

K626438

WASHER

- tab (MFD)

1шт.

6

K921819

WASHER

- 1-3/8 inch, special (MFD)

1шт.

7

K620061

BEARING, ROLLER

BEARING - roller

1шт.

8

K627253

BUSHING

SPACER - bearing

1шт.

9

K17023

CIRCLIP

RING - snap, 3 inch, internal

1шт.

10

K917844

BUSHING

SPACER - bearing

1шт.

11

K917845

SHIM,35.32mm ID x 50.8mm OD x 0.05mm Thk

- 0.002 inch

1шт.

11

K917846

SHIM

- 0.005 inch

1шт.

11

K917847

SHIM

- 0.010 inch

1шт.

11

K917848

SHIM

- 0.030 inch

1шт.

12

K627203

BUSHING

SPACER - bearing

1шт.

13

K926249

WASHER

- special

1шт.

14

K942671

GEAR

- high, 28 teeth

1шт.

15

K928223

GEAR

AND CONES - sliding

1шт.

16

K926266

SPRING

- sliding gear

6шт.

17

K928226

GEAR

- dog clutch

2шт.

18

K12922

RING, SNAP

RING - snap, 1-3/4 inch, external

1шт.

19

K942672

GEAR

- medium, 35 teeth

1шт.

20

K928621

WEAR PAD

PAD - bearing

12шт.

21

K948472

WASHER

- special

1шт.

22

K948473

RING

SPLIT RING - half (1.510" I.D.)

2шт.

23

K948512

GEAR

- low, 47 teeth

1шт.

24

K620131

ROLLER

BEARING - roller

1шт.

25

K942872

SHIM

- 0.002 inch

1шт.

25

K942873

SHIM

- 0.003 inch

1шт.

25

K942874

SHIM

- 0.010 inch

1шт.

25

K942875

SHIM

- 0.030 inch

1шт.

26

K943068

COVER

PLATE - cover, rear bearing

1шт.

27

K603043

SCREW

BOLT - 7/16 UNC x 1 inch

5шт.
