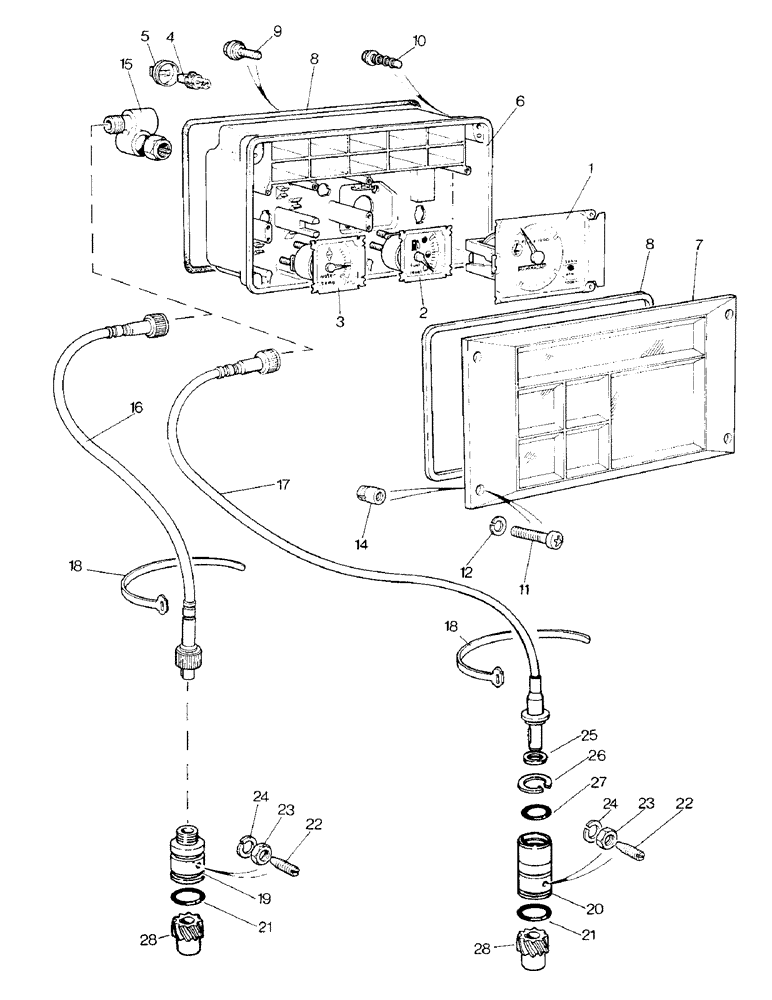

Запчасти Case IH 1390 (B-07) - INSTRUMENT CLUSTER AND TACHOMETER (02) - COOLING & FUEL SYSTEMS

K300269

CLUSTER

ASSEMBLY - instrument, multi-speed PTO

1шт.

K300268

CLUSTER

ASSEMBLY - instrument, single-speed and reversible shaft PTO, Includes Ref: 1 - 10

1шт.

1

K965948

SPEEDOMETER

TACHOMETER - engine, multi-speed PTO

1шт.

1

K965947

TACHOMETER

- engine, single-speed and reversible shaft PTO

1шт.

2

K965950

FUEL GAUGE

GAUGE - fuel

1шт.

3

K965949

ELECTRICAL GAUGE

GAUGE - temperature

1шт.

4

K965961

LAMP

AND SOCKET - warning lamps

6шт.

4

K965960

LAMP

AND SOCKET - illumination lamps

3шт.

5

K965958

BOOT

COVER - plastic, illumination lamps

3шт.

6

D71335

CASE ASSY.

CASE - cluster, printed circuit

1шт.

7

K965945

BEZEL

COVER - cluster

1шт.

8

K965954

GASKET,4.45mm Thk x 249.68mm ID

- cover

2шт.

9

K965957

BOLT

SCREW ASSEMBLY - cluster

2шт.

10

K965959

SCREW

- cluster

12шт.

11

K652502

SCREW,Pan, M5 x 0.8 x 16mm

- M5 x 10 MM

4шт.

12

K651846

WASHER, LOCK

WASHER - lock, 5 MM

4шт.

14

K652032

INSERT

- M5 x 9.5

4шт.

15

K201998

ADAPTER

- tachometer drive

1шт.

16

K957154

CABLE

ASSEMBLY - inner and outer (See note A)

1шт.

17

K957380

CABLE

ASSEMBLY - inner and outer (See note B)

1шт.

18

K10518

BUCKLE

STRAP - tie

1шт.

19

K928253

CONNECTOR, ELEC

HOUSING - drive (See note A)

1шт.

20

K206037

CONNECTOR, ELEC

HOUSING - drive (See note B)

1шт.

21

K16351

O-RING,3.53mm Thk x 24.99mm ID

- 1 inch ID

2шт.

22

K928254

SCREW,7/16" - 14 x 1 5/16"

- locating, 7/16 inch UNC

1шт.

23

425-147

JAM NUT,Jam, 7/16"-14, G5

- lock, 7/16 inch UNC

1шт.

24

K626344

WASHER, LOCK

WASHER - lock, 7/16 inch

1шт.

25

K206134

WASHER

- rubber, 9/16 inch (See note B)

1шт.

26

A37550

SNAP RING,1.00", Int, #100

Ring, Snap, (see note B) 1.00", Int, #100

1шт.

27

F62075

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

- 3/4 inch ID (See note B)

1шт.

28

REF

INSTRUCTION

PINNION - shaft drive (See page A10-1)

1шт.
