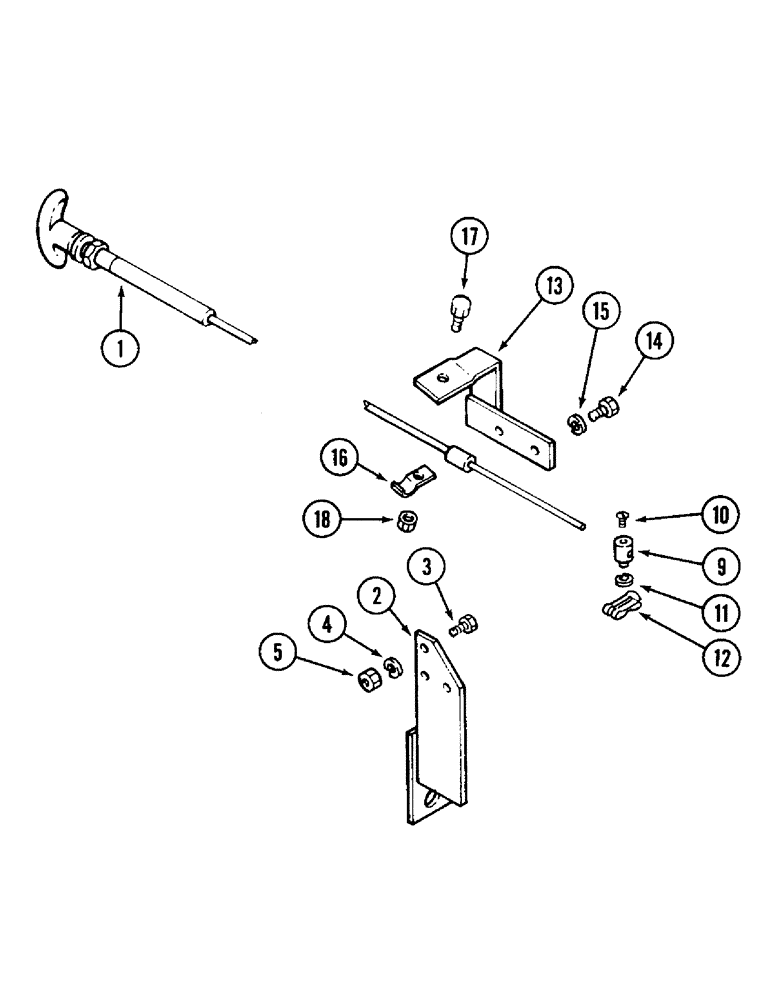

Запчасти Case IH 1390 (B-06) - ENGINE STOP CONTROLS, 1290 P.I.N. 11054388 AND AFTER, 1390 P.I.N. 11127048 AND AFTER (02) - COOLING & FUEL SYSTEMS

1

K304813

CABLE

ASSEMBLY - stop control

1шт.

2

K304580

BRACKET

- mounting, rear

1шт.

3

K612703

SCREW

BOLT - hex, 1/4 NF x 3/4 inch

3шт.

4

K19480

SPRING WASHER

- lock, 1/4 inch

3шт.

5

K61700

NUT

- hex, 1/4 inch NF

3шт.

9

K205990

TRUNNION

PIN - trunnion

1шт.

10

K606407

SCREW

- hex, no. 10 NC x 1/2 inch

1шт.

11

K19470

WASHER

- lock, 1/4 inch

1шт.

12

K625039

CLIP

CUP - retaining

1шт.

13

K304437

MOUNTING PARTS

BRACKET - mounting, front

1шт.

14

K612701

SCREW

BOLT - hex, 1/4 NF x 1/2 inch

1шт.

15

K626341

SPRING WASHER

WASHER - lock, 1/4 inch

2шт.

16

K657014

CABLE

CLAMP - cable

1шт.

17

K602701

BOLT

- hex, 1/4 NC x 1/2 inch

1шт.

18

K607300

NUT

- hex, self-locking, 1/4 inch NC

1шт.
