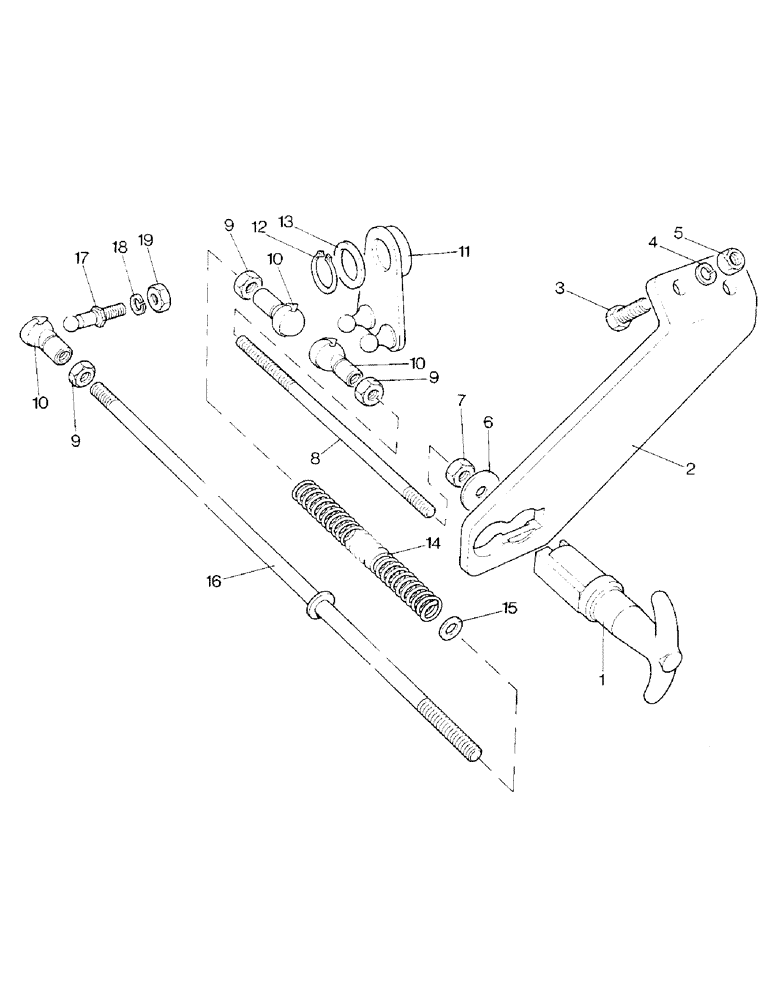

Запчасти Case IH 1390 (B-05) - ENGINE STOP CONTROLS, 1290 PRIOR TO P.I.N. 11054338, 1390 PRIOR TO P.I.N. 11127048 (02) - COOLING & FUEL SYSTEMS

1

K202405

KNOB

- control rod

1шт.

2

K203107

BRACKET

- mounting

1шт.

3

K650327

SCREW

- M6 x 16 MM

2шт.

4

K651847

WASHER, LOCK

WASHER - lock, 6 MM

2шт.

5

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

2шт.

6

K626661

WASHER

- special

1шт.

7

425-154

JAM NUT,Jam, 1/4"-28, G5

- lock, 1/4 inch UNF

1шт.

8

K203110

ROD

- stop control

1шт.

9

425-154

JAM NUT,Jam, 1/4"-28, G5

- lock, 1/4 inch UNF

3шт.

10

K621903

BALL JOINT

SOCKET END - 1/4 inch UN

3шт.

11

K203111

LEVER

- stop control

1шт.

12

K621587

RING, SNAP

RING - snap, 3/8 inch

2шт.

13

K19472

WASHER

- 3/8 inch

2шт.

14

K625260

SPRING

- return

1шт.

15

K626682

WASHER

- 5/16 inch

1шт.

16

K203108

STOP

ROD - stop

1шт.

17

K621905

BALL

END - 1/4 inch BSF

1шт.

18

K626341

SPRING WASHER

WASHER - lock, 1/4 inch

1шт.

19

K19401

NUT

- 1/4 inch BSF

1шт.
