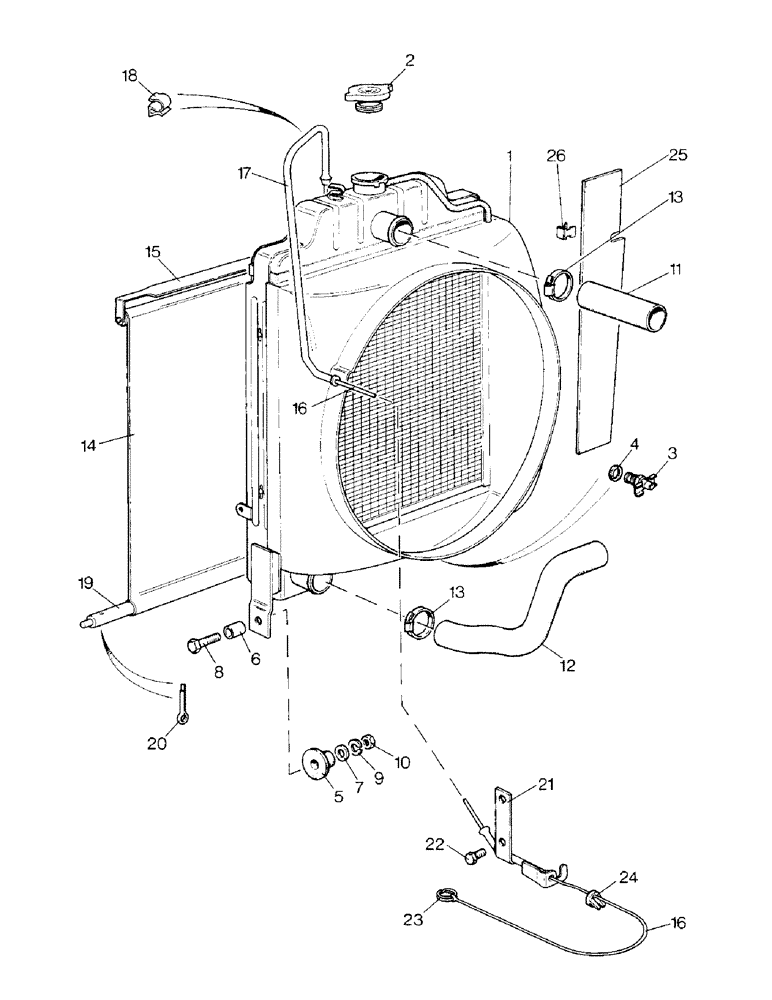

Запчасти Case IH 1390 (B-01) - RADIATOR AND BLIND (02) - COOLING & FUEL SYSTEMS

1

K300103

RADIATOR

- 2-1/2 inch standard

1шт.

1

K300106

RADIATOR

- 2-3/4 inch tropical

1шт.

2

K945362

CAP

FILLER CAP - 7 PSI

1шт.

2

K945362

CAP

FILLER CAP - 10 PSI (1390)

1шт.

3

K622060

PLUG, DRAIN

VALVE - drain, 1/4 inch BSP

1шт.

4

K19501

WASHER

WASHER - fiber

1шт.

5

K200734

MOUNTING PARTS

BUSHING - rubber

2шт.

6

K627321

BUSHING

SPACER - mounting

2шт.

7

K88751

WASHER

- 3/8 inch special

2шт.

8

K600408

BOLT,3/8" x 2"

- 3/8 UNC x 2 inch

2шт.

9

K19482

SPRING WASHER

WASHER - lock, 3/8 inch

2шт.

10

280136

NUT,3/8"-16, G8

2шт.

11

K200730

RADIATOR HOSE,1.50" ID x 6.00", SAE 20R4 Class SC Or SAE 20R4 Class D1

Inlet 1.50" ID x 6.00", SAE 20R4 Class SC Or SAE 20R4 Class D1

1шт.

12

K201976

RADIATOR HOSE,1.50" ID x 7.31", SAE J20 R4 Class D1

Outlet 1.50" ID x 7.31", SAE J20 R4 Class D1

1шт.

13

K622029

CLAMP

CLIP - hose, 2 inch diameter

4шт.

UK5105

RADIATOR

BLIND ATTACHMENT - radiator, Includes Ref: 14 - 24

1шт.

14

K908846

COVER

BLIND - radiator

1шт.

15

K64925

ROD

- pull

1шт.

16

K67196

ROPE

CORD - control

1шт.

17

K203897

TUBE

- cable

1шт.

18

K625021

CLIP

-, Serial Range: tube-waistrail

1шт.

19

K921971

ROD

ANCHOR - blind

1шт.

20

K19520

PIN

- cotter, 1/16 x 3/8 inch

2шт.

21

K203892

GUIDE

TUBE - guide, rear

1шт.

22

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

BOLT, Hex, M8 x 20, 8.8, Guide tube

4шт.

23

K952646

KEY

RING - pull

1шт.

24

K952633

ROD

ANCHOR - cord

1шт.

25

K304466

BAFFLE

- radiator (See note)

2шт.

26

K657159

CLIP

- baffle to radiator (See note)

10шт.
