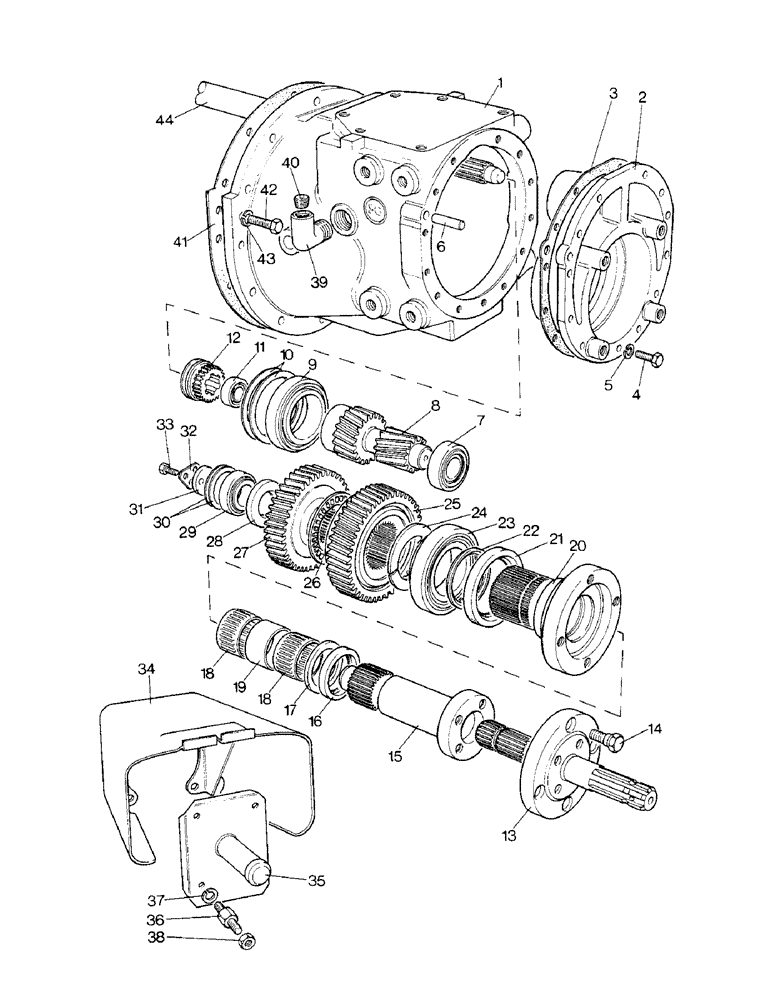

Запчасти Case IH 1390 (F-06) - POWER TAKE-OFF UNIT, REVERSIBLE SHAFT, 1390 TRACTOR (01) - POWER TAKE OFF

1

K956559

PTO

HOUSING - PTO

1шт.

2

K948300

HOUSING

COVER - end

1шт.

3

K948396

GASKET,0.25mm Thk

- cover

1шт.

4

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

13шт.

5

K19481

SPRING WASHER

WASHER - lock, 5/16 inch

13шт.

6

K30134

PIN

DOWEL - 1/2 OD x 1-5/16 inch

1шт.

7

K620046

BEARING

- roller, taper

1шт.

8

K948384

GEAR

SHAFT - input, 21:13 teeth

1шт.

9

K620150

ROLLER

BEARING - roller, taper

1шт.

10

K627406

SHIM,.003" Thk

1шт.

10

K627407

SHIM,.005" Thk

1шт.

10

K627408

SHIM,.007" Thk

1шт.

10

K627409

SHIM,.010" Thk

1шт.

11

K19114

BEARING

- ball

1шт.

12

K946388

GEAR

- sliding, clutch

1шт.

13

K948393

SHAFT

PTO SHAFT - reversible, 6-21 splines

1шт.

14

K948397

BOLT

BOLT - 1/2 inch UNF special

4шт.

15

K948388

SHAFT

- output, high-speed

1шт.

16

K623464

OIL SEAL

- oil, 55 MM ID

1шт.

17

K948395

PLATE

- abutment

1шт.

18

K620146

NEEDLE BEARING

BEARING - roller, needle

2шт.

19

K948394

BUSHING

SPACER - bearing

1шт.

20

K948387

SHAFT

- output, low-speed

1шт.

21

K623452

SEAL,90mm ID x 110.28mm OD x 11.99mm Thk

- oil, 90 MM ID

1шт.

22

K948391

RING

WASHER - special

1шт.

23

K620145

TAPERED BEARING,75mm ID x 130mm OD x 33.25mm W

- roller, taper

1шт.

24

K948392

RING

SPLIT RING - halves

2шт.

25

K948385

GEAR

- driven, low-speed, 50 teeth

1шт.

26

K620147

THRUST BEARING

BEARING - thrust, needle

1шт.

27

K948386

GEAR

- driven, high speed, 43 teeth

1шт.

28

K948389

WASHER

- special

1шт.

29

K620046

BEARING

- roller, taper

1шт.

30

K88921

SHIM,.003" Thk

1шт.

30

K88922

SHIM,.005" Thk

1шт.

30

K88923

SHIM,.007" Thk

1шт.

30

K88924

SHIM,.010" Thk

1шт.

31

K948390

BEARING

RETAINER - bearing

1шт.

32

K626430

WASHER

- tab, retainer bolt

1шт.

33

K602883

SCREW,5/16" - 18 x 3/4", Gr V

BOLT - 5/16 UNC x 3/4 inch

3шт.

34

K948409

GUARD

- PTO

1шт.

35

K955938

GUARD

COVER - PTO shaft

1шт.

36

K608325

STUD

- 7/16 UNC x 2-1/2 inch, special

4шт.

37

K626344

WASHER, LOCK

WASHER - lock, 7/16 inch

4шт.

38

280717

NUT,7/16"-14, G5

4шт.

39

K622127

FITTING

ELBOW - oil filter

1шт.

40

K12362

PLUG

- 1 inch BSP

1шт.

41

K922591

GASKET

- PTO to rear axle housing

1шт.

42

K603006

SCREW

BOLT - 7/16 UNC x 1-3/8 inch

12шт.

43

K626344

WASHER, LOCK

WASHER - lock, 7/16 inch

12шт.

44

K205595

SHAFT

- cardan

1шт.
