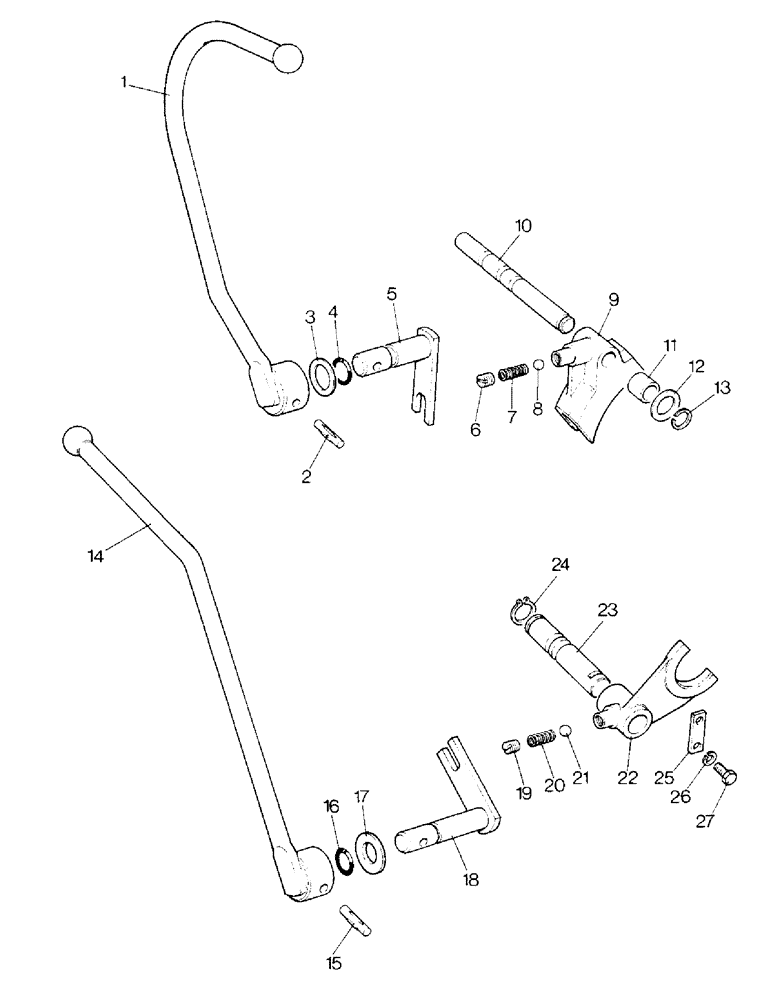

Запчасти Case IH 1390 (F-02) - CONTROLS FOR POWER TAKE-OFF, 1390 TRACTOR (01) - POWER TAKE OFF

1

K201931

LEVER

- hand, single and multi-speed PTO

1шт.

2

K623726

PIN

- 1/4 x 1-1/2 inch, single and multi-speed PTO

1шт.

3

K15499

WASHER

- special, single and multi-speed PTO

3шт.

4

K625405

O-RING,0.549" ID x 0.103" Width

- 9/16 inch ID, single and multi-speed PTO

1шт.

5

K915569

SELECTOR

SHAFT - lever, selector, single and multi-speed PTO

1шт.

6

K606021

SCREW

- 5/16 inch, single and multi-speed PTO

1шт.

7

K24831

SPRING

- detent, single and multi-speed PTO

1шт.

8

K17063

BALL

- steel, 1/4 inch OD, single and multi-speed PTO

1шт.

9

K915568

SELECTOR

FORK - selector, single and multi-speed PTO

1шт.

10

K915567

SELECTOR

ROD - selector, single and multi-speed PTO

1шт.

11

K202439

BUSHING

SPACER - selector rod, single and multi-speed PTO

1шт.

12

K626890

WASHER

- special, selector rod, single and multi-speed PTO

1шт.

13

K11290

RING, SNAP

RING - snap, 3/4 inch, external, single and multi-speed PTO

1шт.

14

K202487

LEVER

- hand, reversible shaft PTO

1шт.

15

K623726

PIN

- 1/4 x 1-1/2 inch, reversible shaft PTO

1шт.

16

K625405

O-RING,0.549" ID x 0.103" Width

- 9/16 inch ID, reversible shaft PTO

1шт.

17

K19476

WASHER

- 1/8 inch thick, reversible shaft PTO

1шт.

17

K627461

WASHER

- 1/16 inch thick, reversible shaft PTO

1шт.

18

K948401

SELECTOR

SHAFT - lever, selector, reversible shaft PTO

1шт.

19

K606021

SCREW

- 5/16 inch, reversible shaft PTO

1шт.

20

K24831

SPRING

- detent, reversible shaft PTO

1шт.

21

K17063

BALL

- steel, 1/4 inch OD, reversible shaft PTO

1шт.

22

K948398

SHIFTER FORK

FORK - selector, reversible shaft PTO

1шт.

23

K948399

SELECTOR

ROD - selector, reversible shaft PTO

1шт.

24

K11290

RING, SNAP

RING - snap, 3/4 inch, external, reversible shaft PTO

1шт.

25

K948400

PLATE

- retaining, reversible shaft PTO

1шт.

26

K626341

SPRING WASHER

WASHER - lock, 1/4 inch, reversible shaft PTO

2шт.

22

K602733

SCREW

BOLT - 1/4 UNC x 5/8 inch, reversible shaft PTO

2шт.
